Installation Procedure

  1. Install the front seat adjuster to the seat cushion frame.

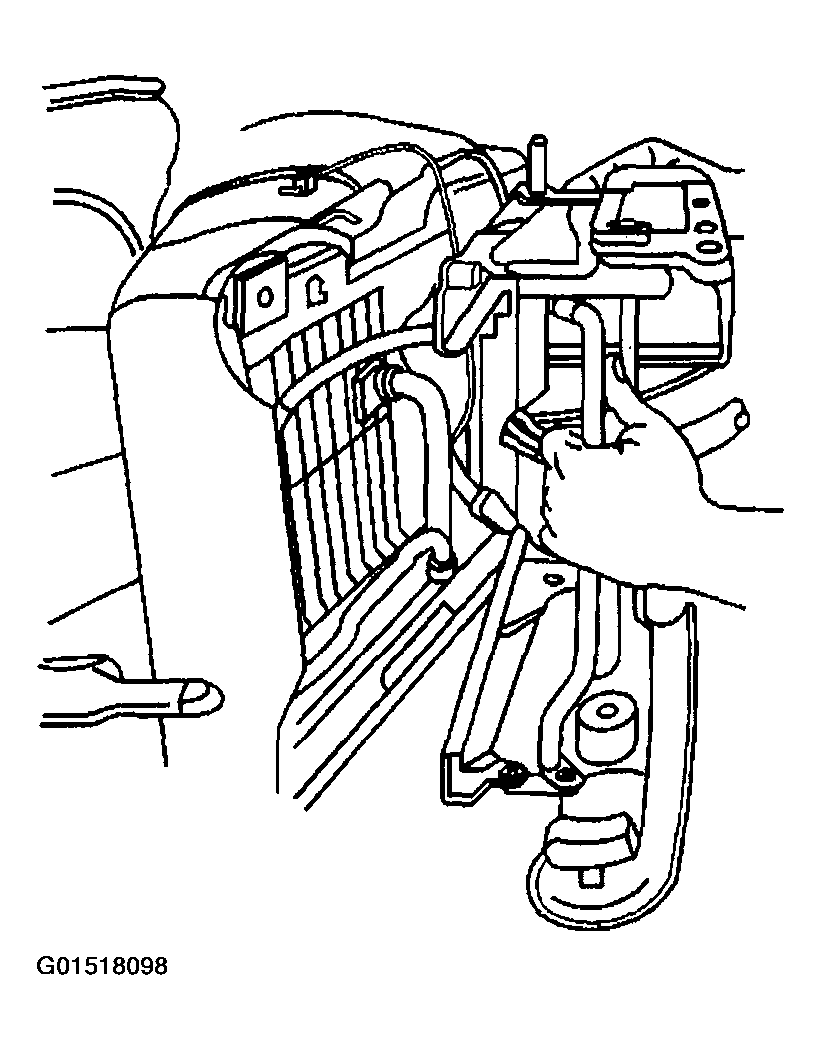

    Fig 1: Installing Front Seat Adjuster To Seat Cushion Frame
    G01518098Courtesy of GENERAL MOTORS CORP.
  2. Install the seat back recliner cable to the recessed space on the right and on the left sides of the seat cushion frame.

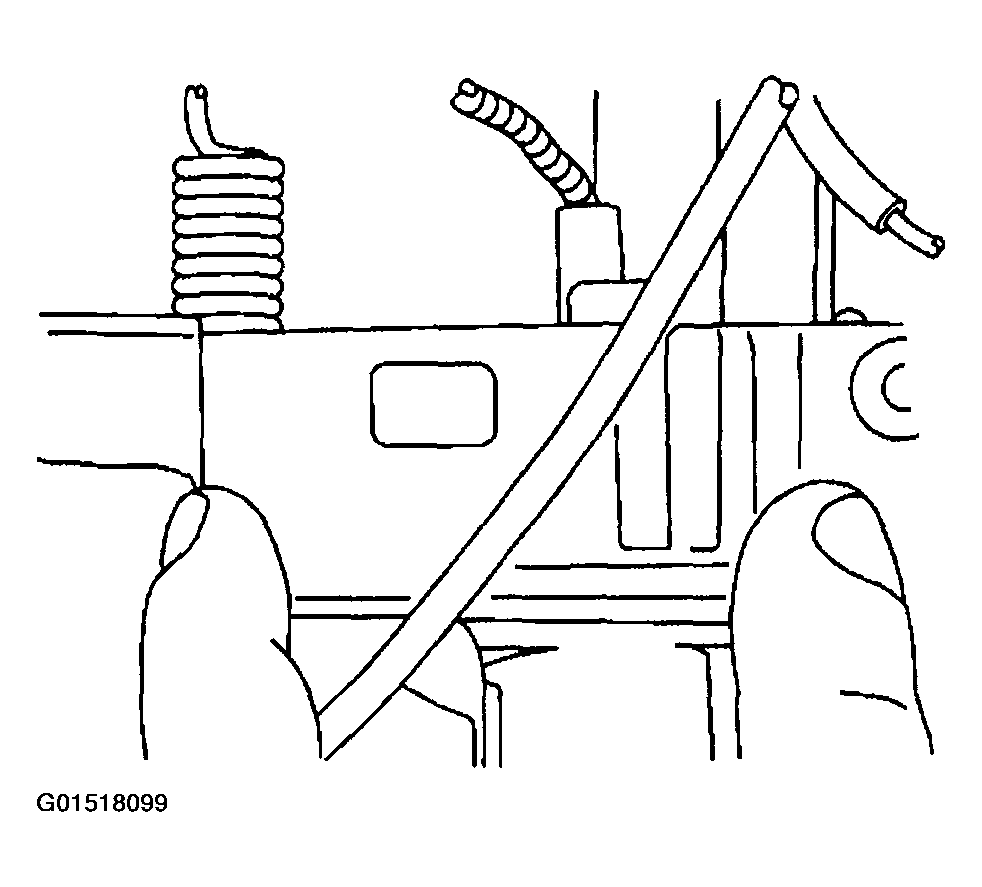

    Fig 2: Installing Seat Back Recliner Cable
    G01518099Courtesy of GENERAL MOTORS CORP.
  3. Install the bolts to the front seat adjuster.

    Tighten

    Tighten the bolts to 43 N.m (32 lb ft).

  4. Install the handle to the front seat adjuster.

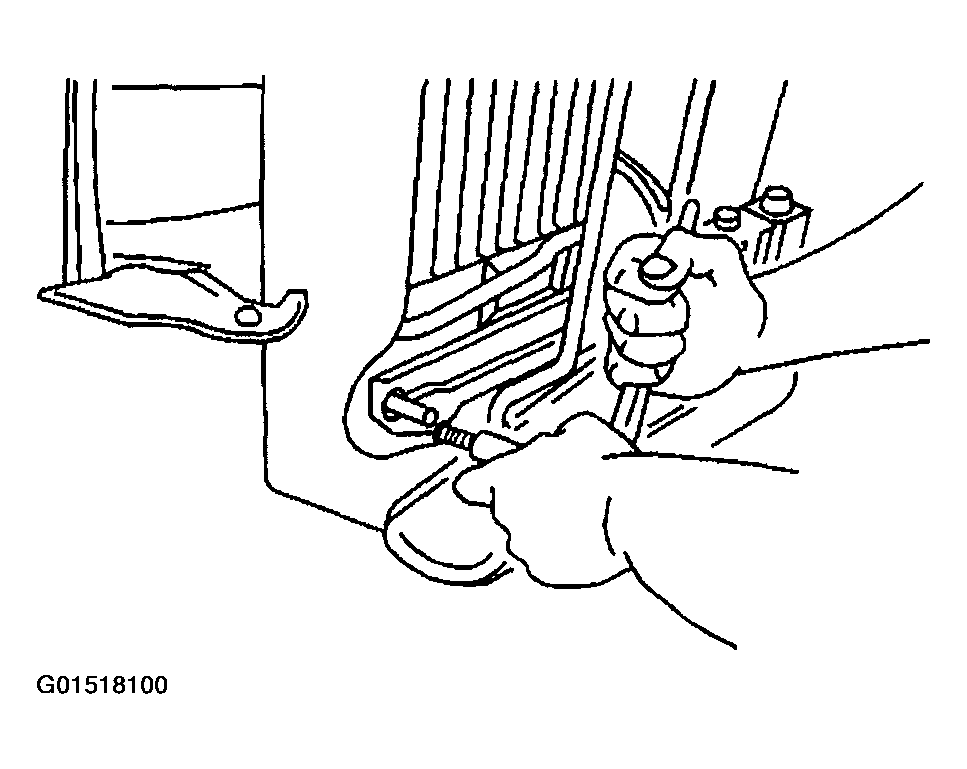

    Fig 3: Installing Bolts To Front Seat Adjuster
    G01518100Courtesy of GENERAL MOTORS CORP.
  5. Connect the electrical connectors to the front seat adjuster motors.
  6. Install the front seat belt buckle.
  7. Install the inner cushion trim cover. Refer to SEAT CUSHION INNER TRIM PANEL REPLACEMENT - FRONT  .
  8. Install the outer cushion trim cover. Refer to SEAT CUSHION OUTER TRIM PANEL REPLACEMENT - FRONT SEAT  .
  9. Install the bucket seat. Refer to SEAT REPLACEMENT - BUCKET  .

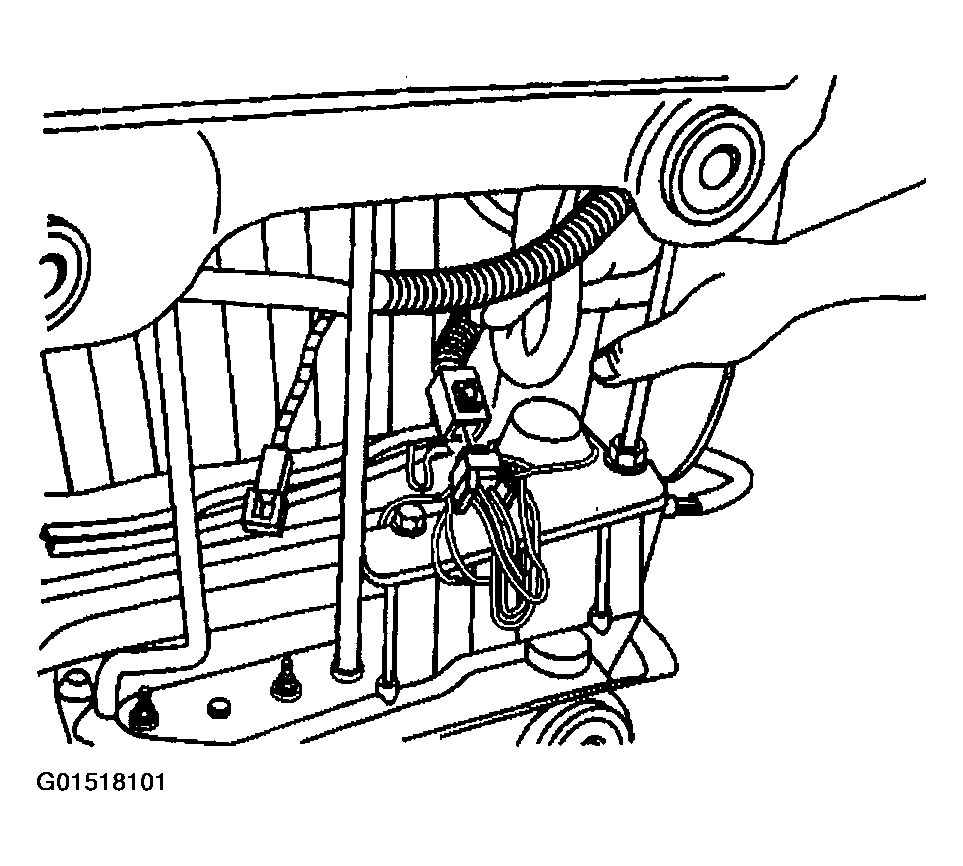

    Fig 4: Connecting Electrical Connectors To Front Seat Adjuster Motors
    G01518101Courtesy of GENERAL MOTORS CORP.
