Installation Procedure

  1. Install the track covers to the front seat.
  2. Install the screws to the front seat track covers.

    Tighten

    Tighten the screws to 2 N.m (18 lb in).

  3. Install the front bucket seat. Refer to SEAT REPLACEMENT - BUCKET  .

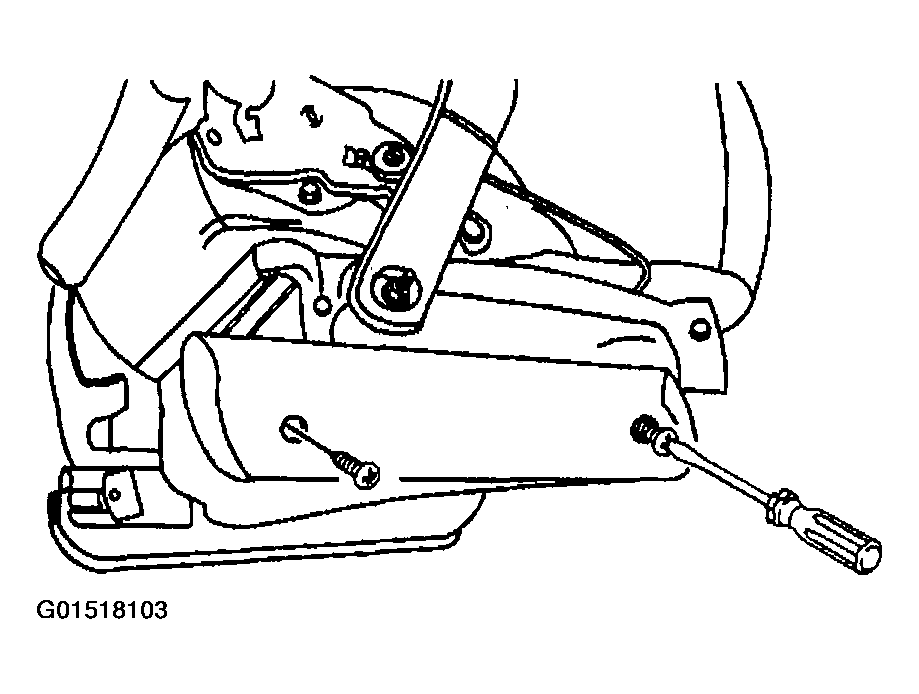

    Fig 1: Installing Screws To Front Seat Track Covers
    G01518103Courtesy of GENERAL MOTORS CORP.
