Installation Procedure

Install the seat back heater element.

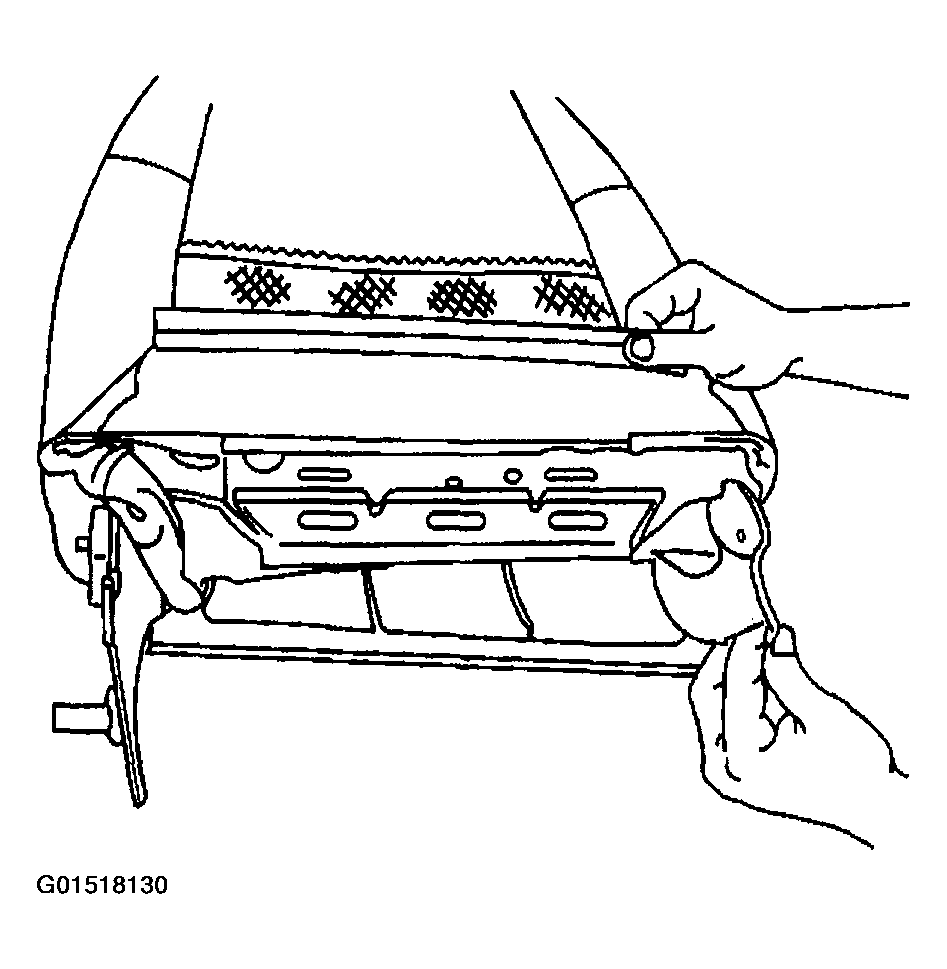

Install the front seat back cover. Align the marks on the cover and the pad.
Install the hog rings from the cover to the pad.
Install the cover over the pad while aligning the hook and the loop retainers.
Install the hook and the loop retainers, securing the cover to the pad.

Fig 1: Installing Front Seat Back Cover And Aligning Marks On Cover And Pad
Courtesy of GENERAL MOTORS CORP.

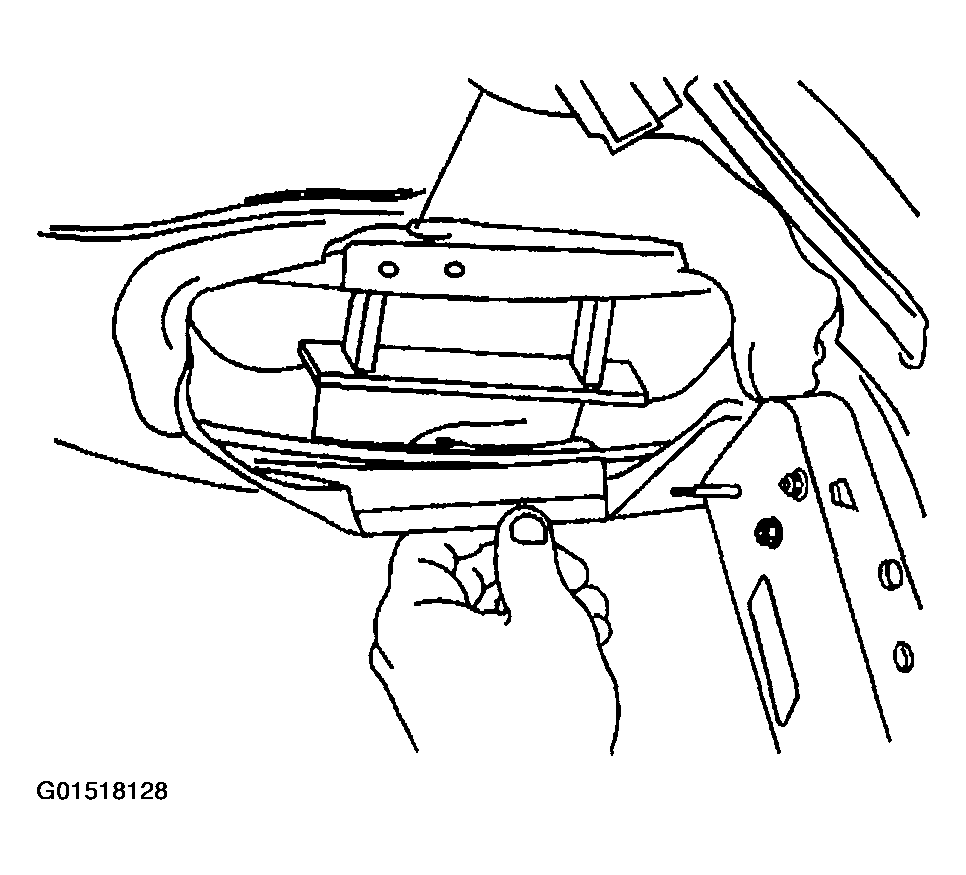

Install the cover to the front retainer at the side impact airbag.

Fig 2: Installing Cover To Front Retainer
Courtesy of GENERAL MOTORS CORP.

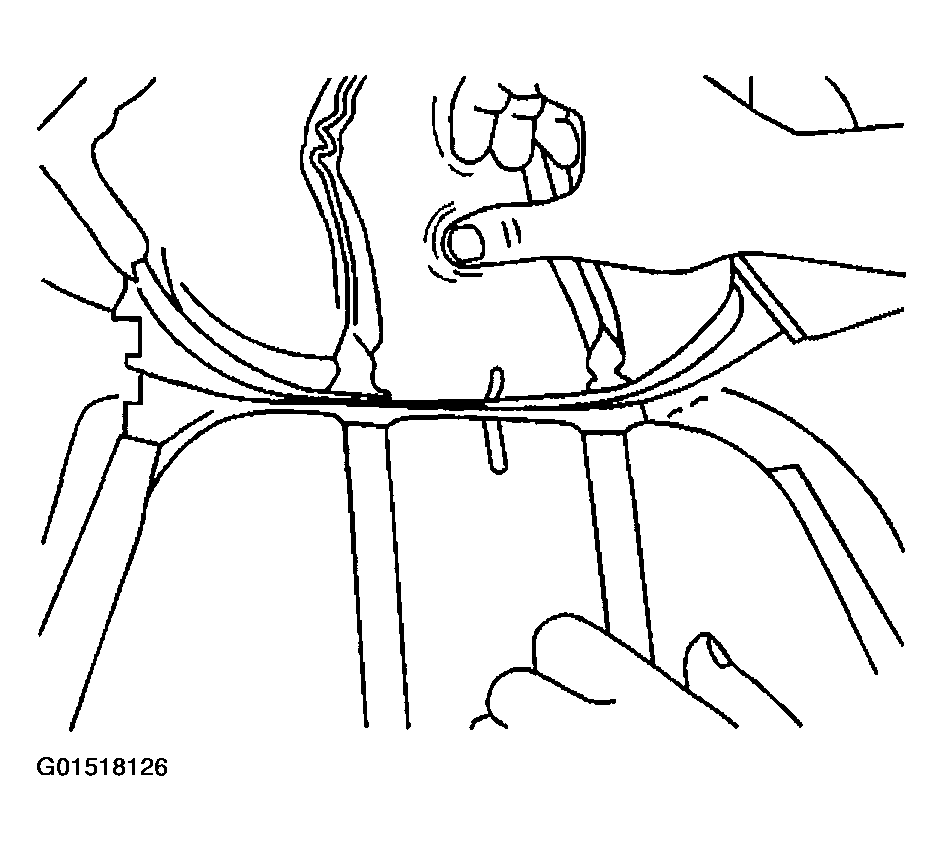

Install the cover to the rear retainer at the side impact airbag.
Install the side air bag to the front seat.

Fig 3: Installing Cover To Rear Retainer
Courtesy of GENERAL MOTORS CORP.

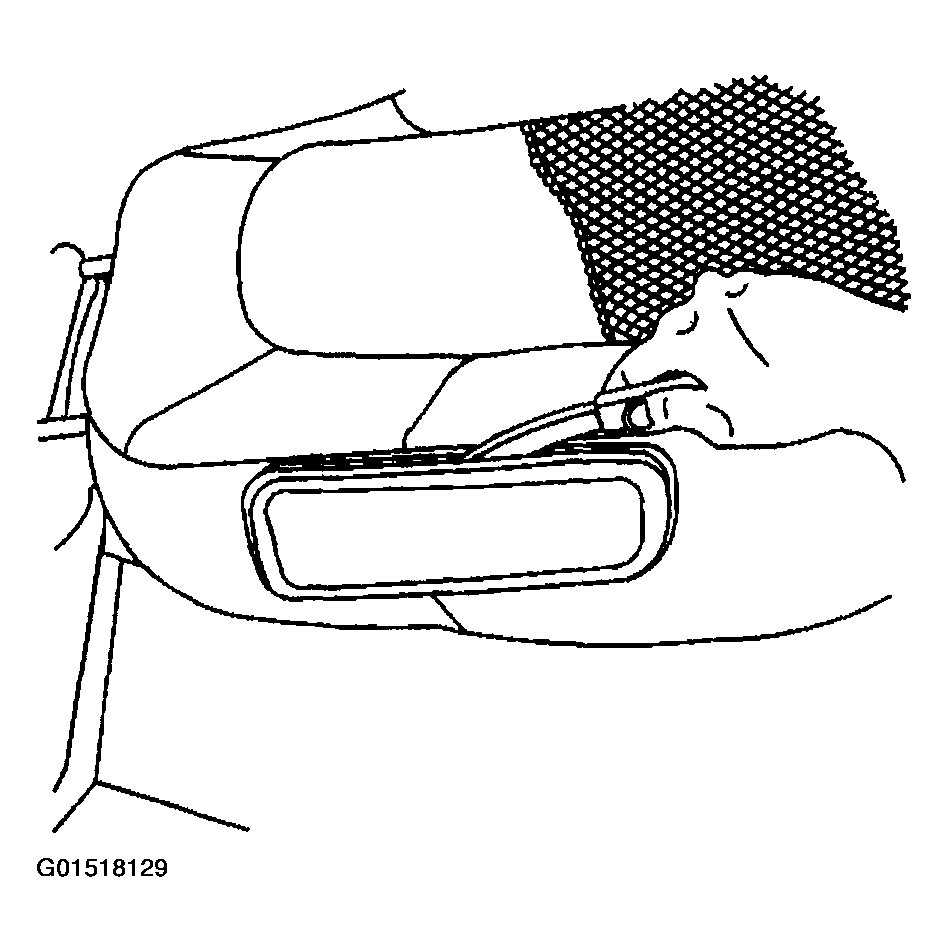

Install and adjust the cover to the side air bag retainer, by pressing in and pulling down on the cover.

Fig 4: Installing And Adjusting Cover To Side Air Bag Retainer
Courtesy of GENERAL MOTORS CORP.

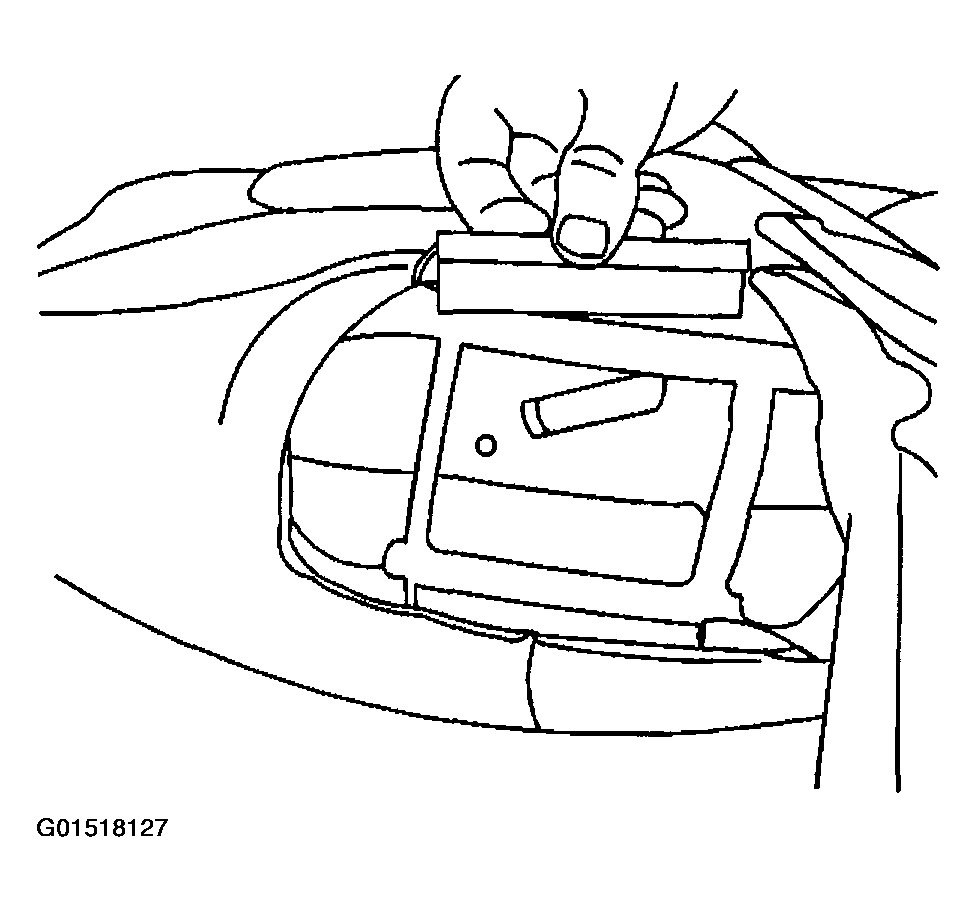

Reposition the end flap to the seat back cover.

Fig 5: Repositioning End Flap To Seat Back Cover
Courtesy of GENERAL MOTORS CORP.
Install the J-hook retainer at the bottom of the seat back cover.
Install the back to the front seat. Refer to SEAT BACK REPLACEMENT - FRONT .
Install the headrest. Refer to HEAD RESTRAINT REPLACEMENT - FRONT SEAT .
Install the armrest. Refer to ARMREST REPLACEMENT - FRONT SEAT .
Install the bucket seat. Refer to SEAT REPLACEMENT - BUCKET .

Fig 6: Installing J-Hook Retainer At Bottom Of Seat Back Cover
Courtesy of GENERAL MOTORS CORP.
