Schematic and Routing Diagrams

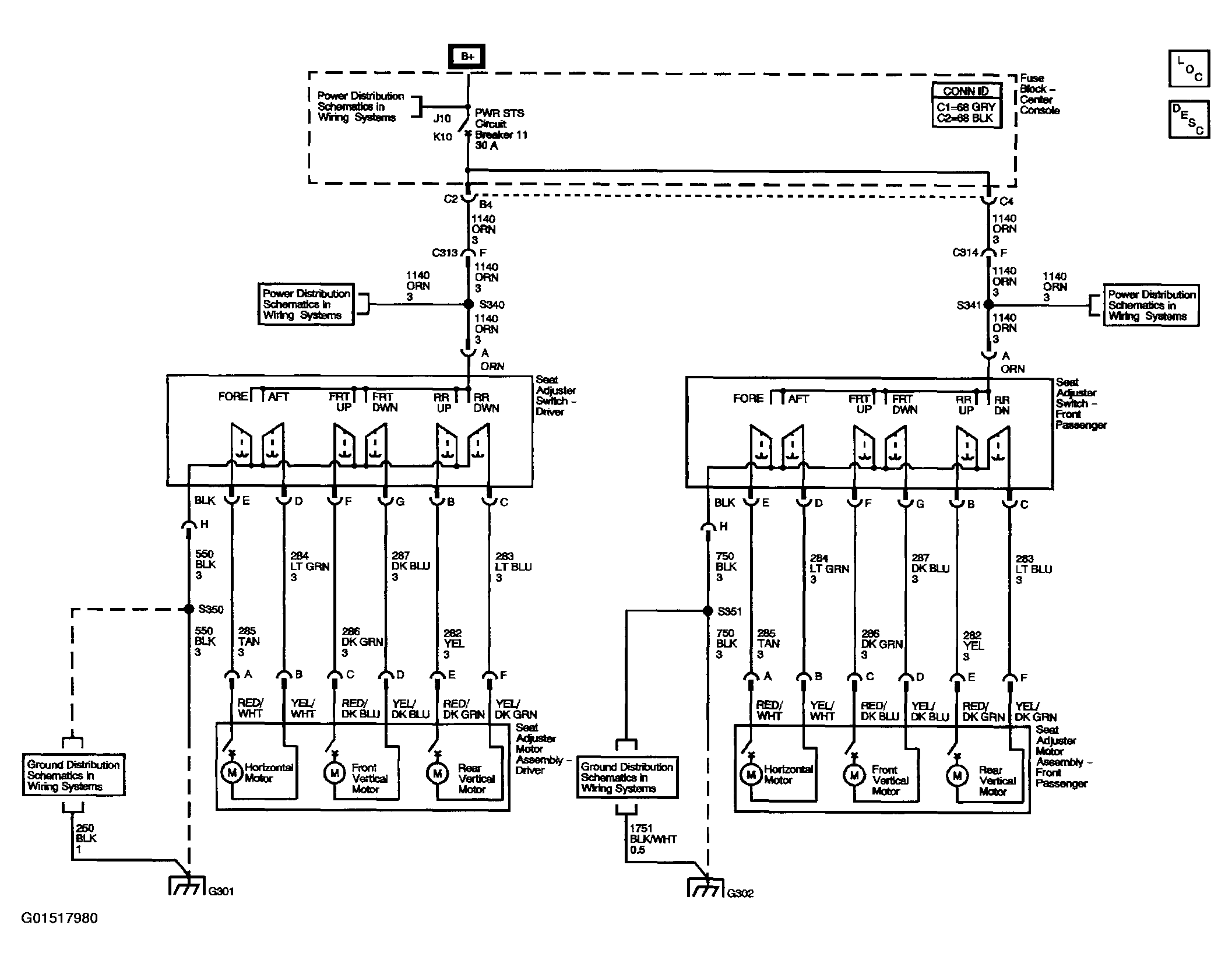

Fig 1: Power Seats Schematics

Courtesy of GENERAL MOTORS CORP.

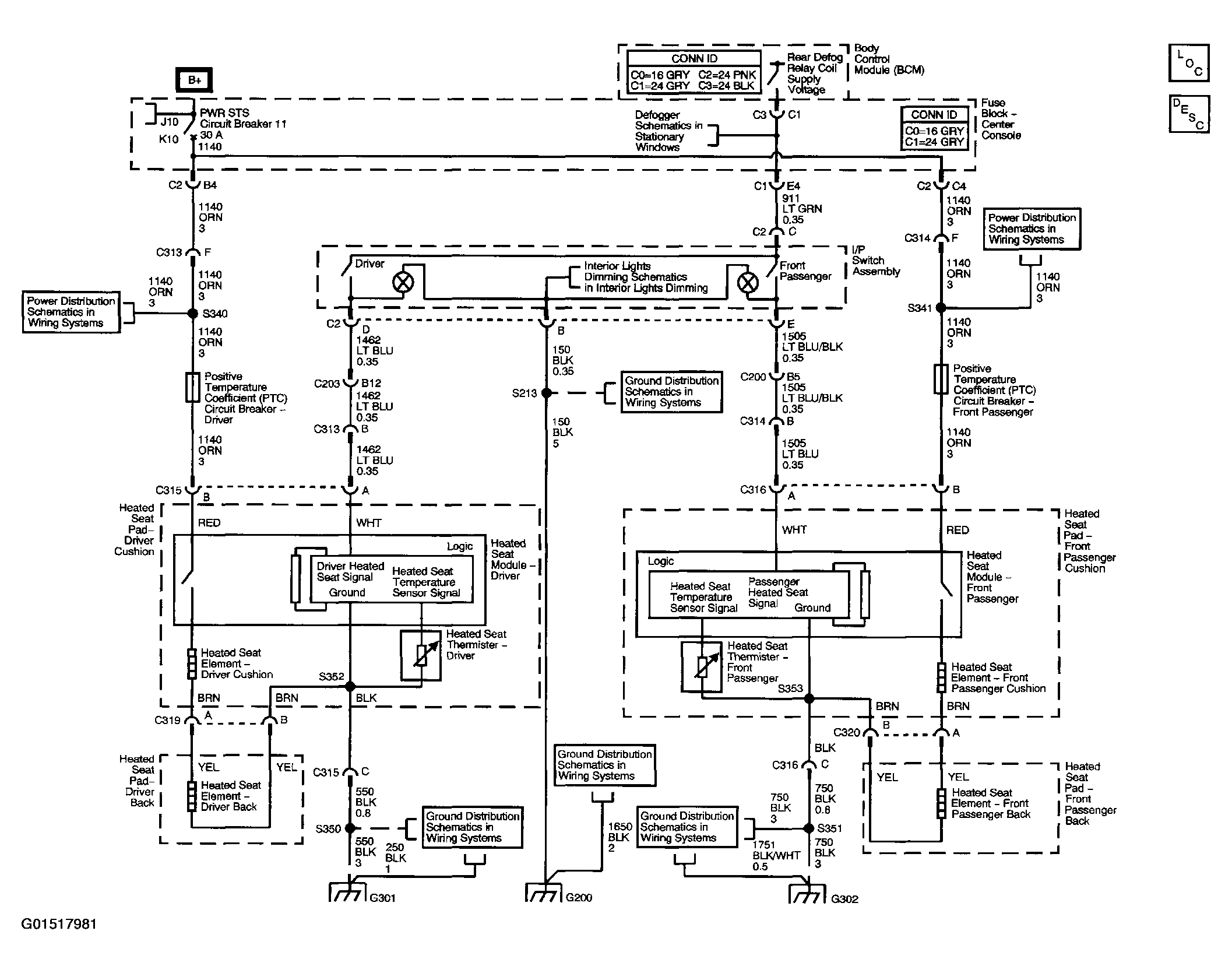

Fig 2: Heated Seats Schematics

Courtesy of GENERAL MOTORS CORP.

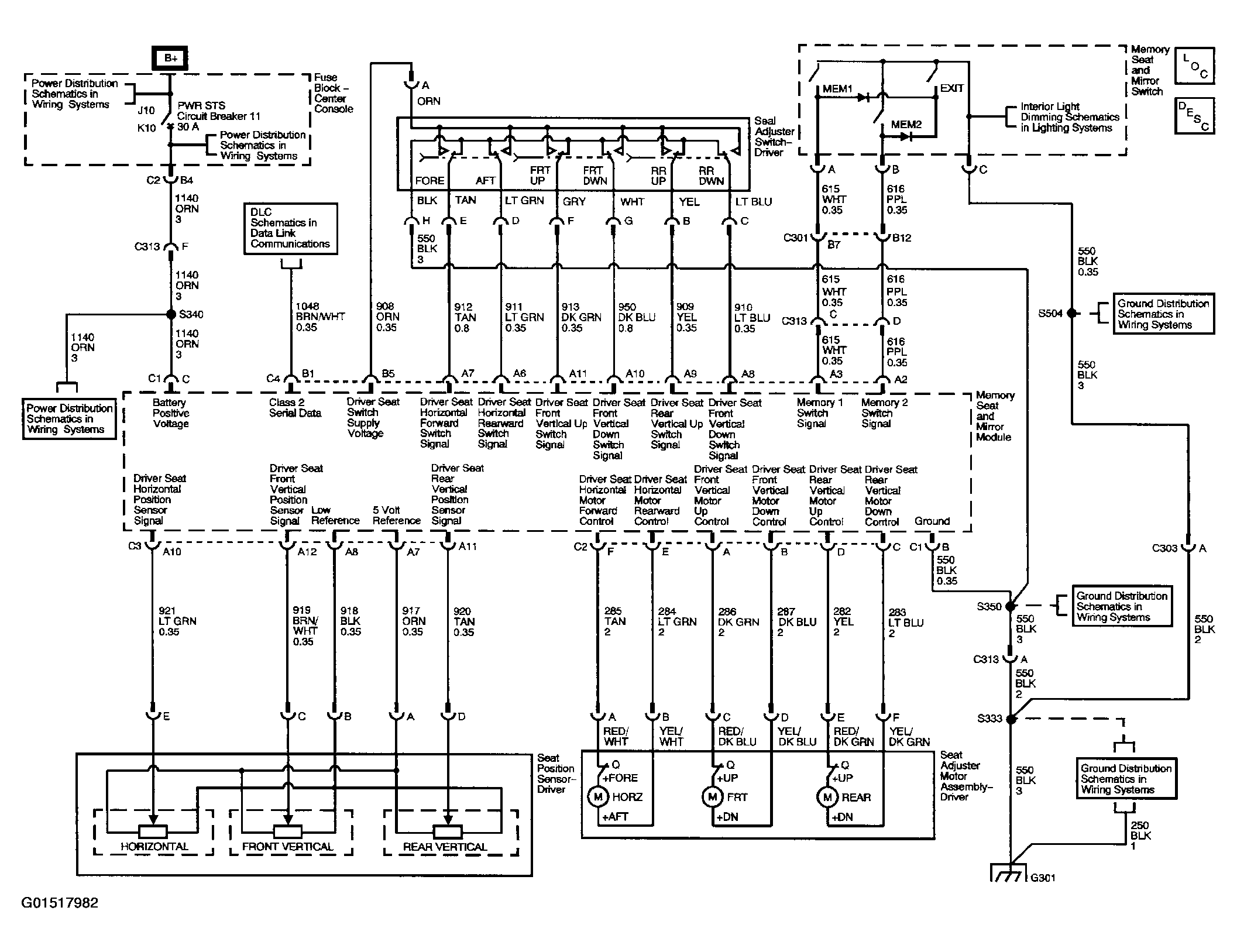

Fig 3: Memory Seats Schematics

Courtesy of GENERAL MOTORS CORP.
