Installation Procedure

  1. Install the power sunroof switch to the bezel, pressing until fully seated.
    Fig 1: Installing Power Sunroof Switch To Bezel
    G01516247Courtesy of GENERAL MOTORS CORP.
  2. Connect the electrical connector to the power sunroof switch.
    Fig 2: Connecting Electrical Connector To Power Sunroof Switch
    G01516248Courtesy of GENERAL MOTORS CORP.
  3. Install the power sunroof switch to the roof, pressing into place until fully seated.

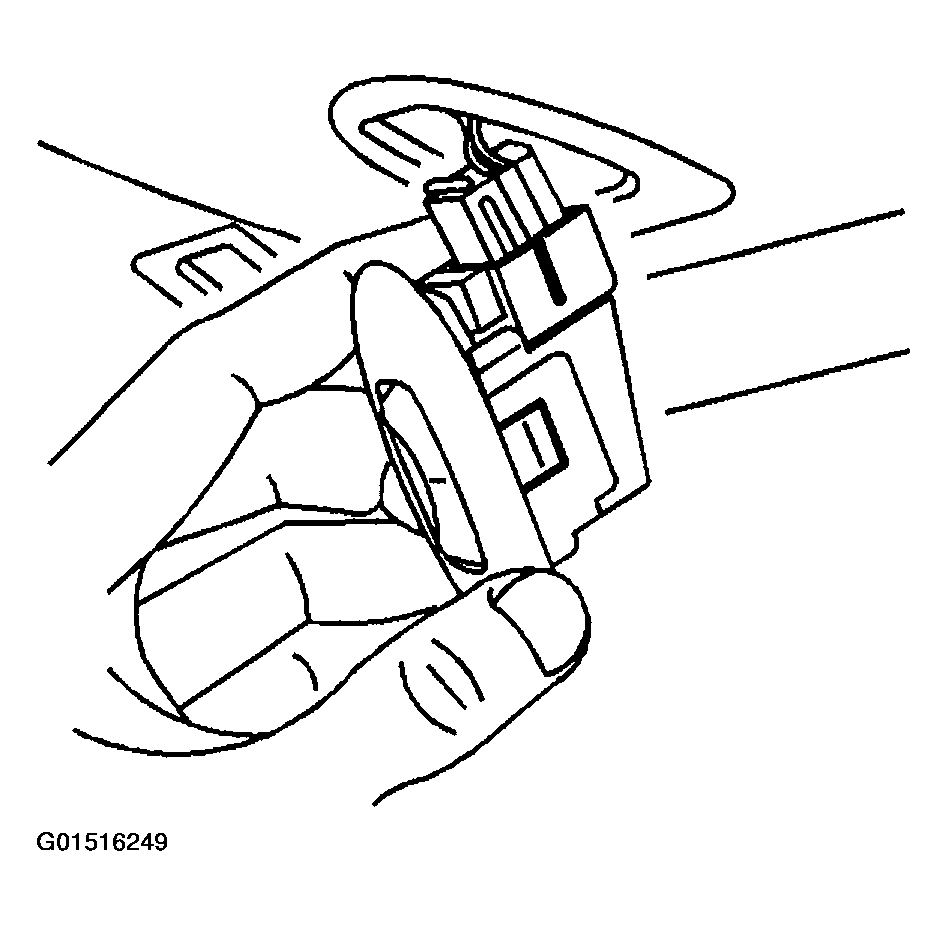

    Fig 3: Installing Power Sunroof Switch To Roof
    G01516249Courtesy of GENERAL MOTORS CORP.
