Removal Procedure

Important:  Protect the applique with heavy material tape in order to avoid damaging the underlying paint finish or applique. Do not use a pointed or a sharp instrument for the removal of the applique.

1. Remove the rear door window outer belt sealing strip. Refer to SEALING STRIP REPLACEMENT - REAR DOOR WINDOW BELT OUTER  .

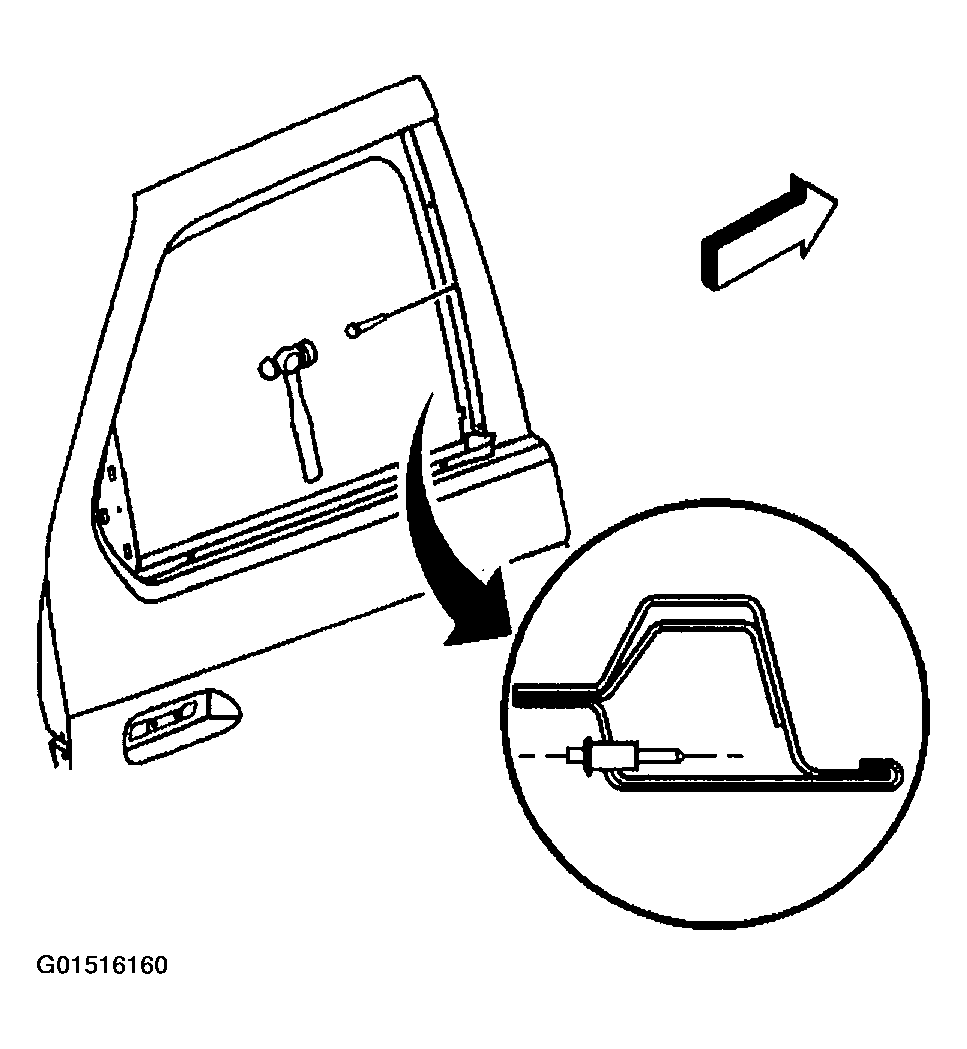

2. Remove the center of the rivets using a center punch.
   Fig 1: Removing Rear Door Frame Applique (1 Of 3)

   Courtesy of GENERAL MOTORS CORP.

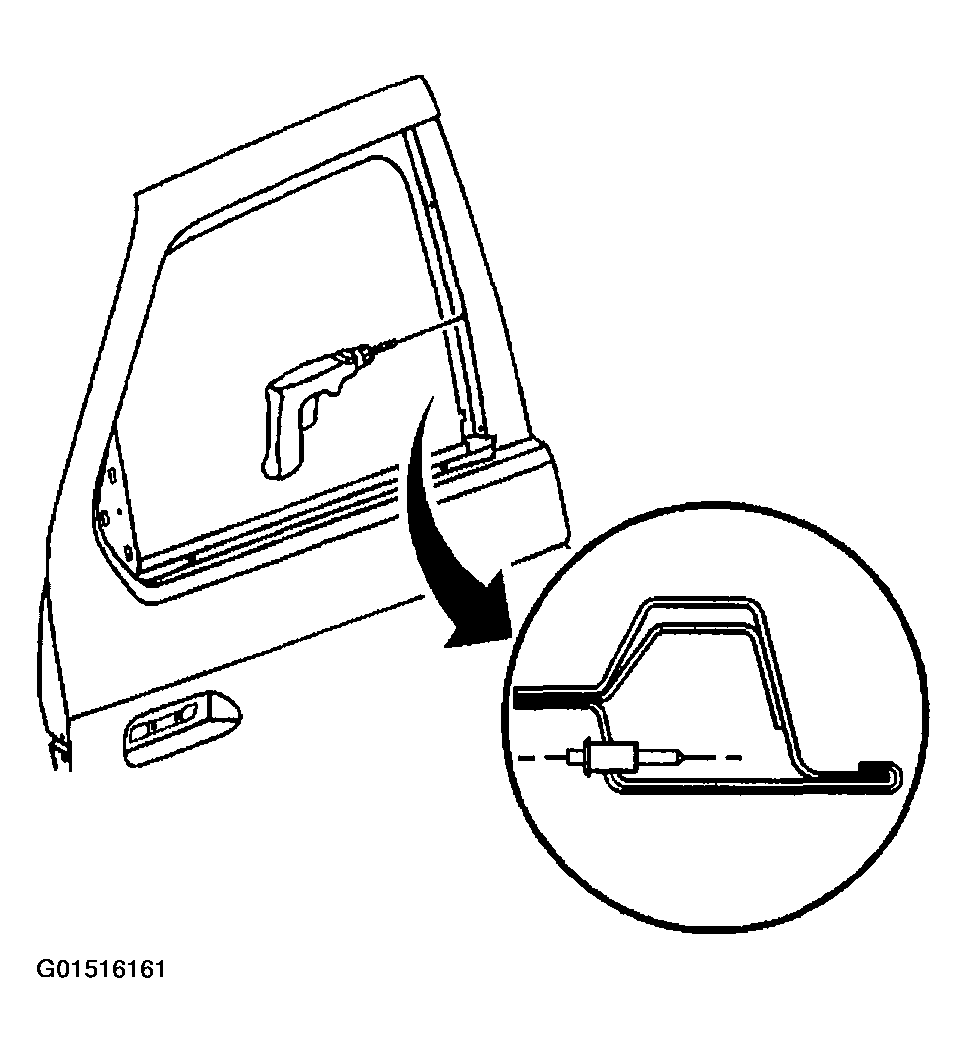

3. Drill out the rivets from the frame applique.
   Fig 2: Removing Rear Door Frame Applique (2 Of 3)

   Courtesy of GENERAL MOTORS CORP.

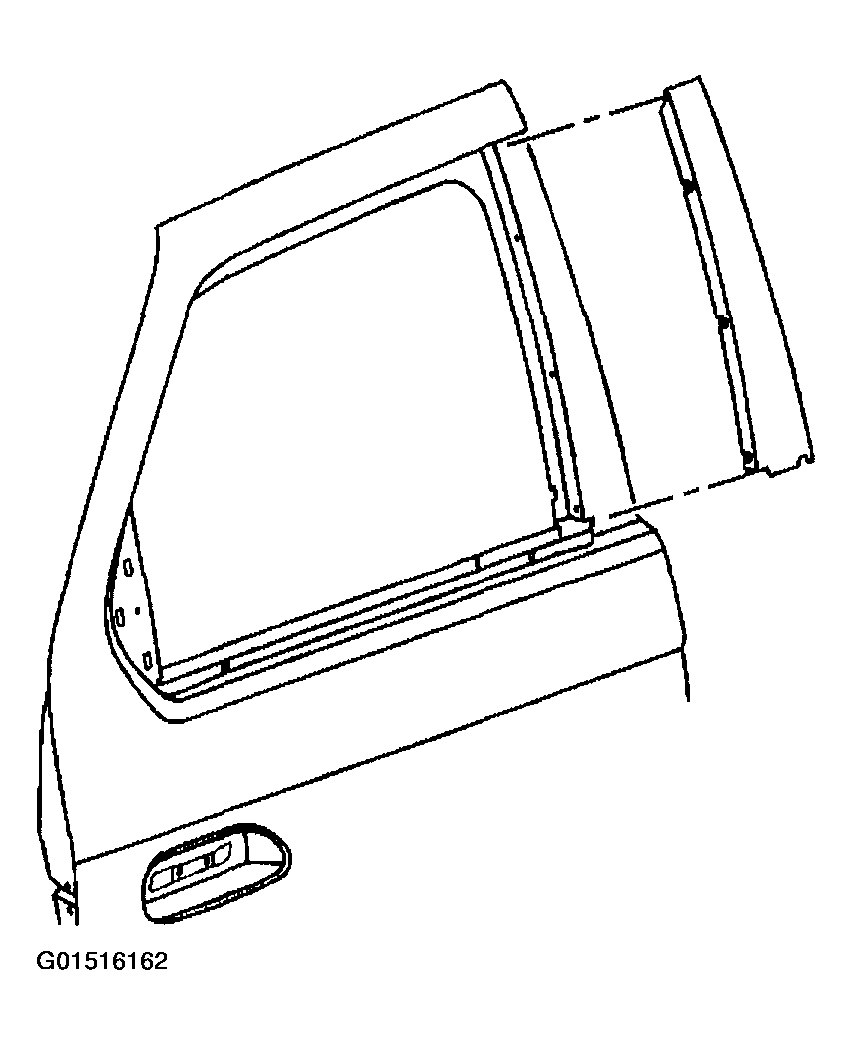

4. Remove the frame applique from the rear door.
   Fig 3: Removing Rear Door Frame Applique (3 Of 3)

   Courtesy of GENERAL MOTORS CORP.
