Removal Procedure

  1. Remove the door trim panel. Refer to TRIM PANEL REPLACEMENT - SIDE FRONT DOOR (AZTEK)  or TRIM PANEL REPLACEMENT - SIDE FRONT DOOR (RENDEZVOUS)  .
  2. Use a small flat-bladed tool to release the clips at the top and the bottom of the door lock switch.
  3. Disconnect the electrical connector from the switch.
  4. Remove the switch.

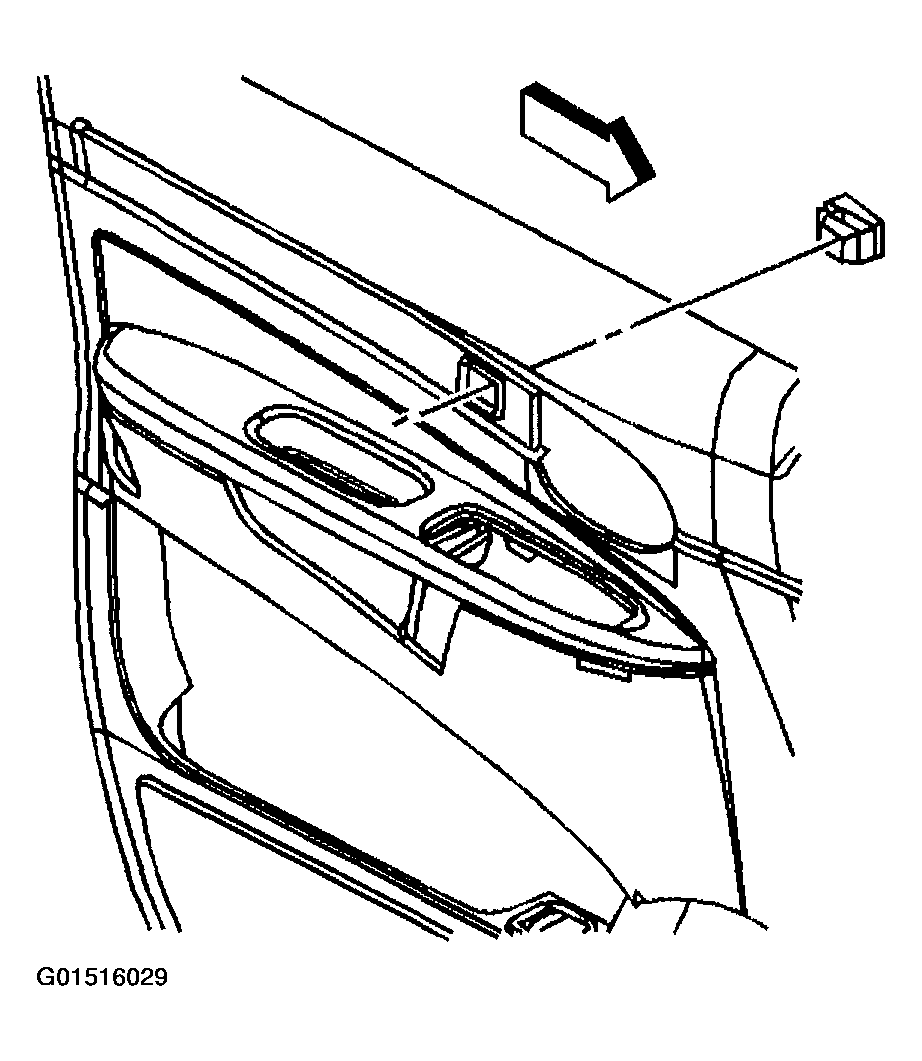

    Fig 1: Removing Power Door Lock Switch (Rendezvous)
    G01516029Courtesy of GENERAL MOTORS CORP.
