Removal Procedure

Use a small flat-bladed tool in order to remove the switch plate from the front door trim panel

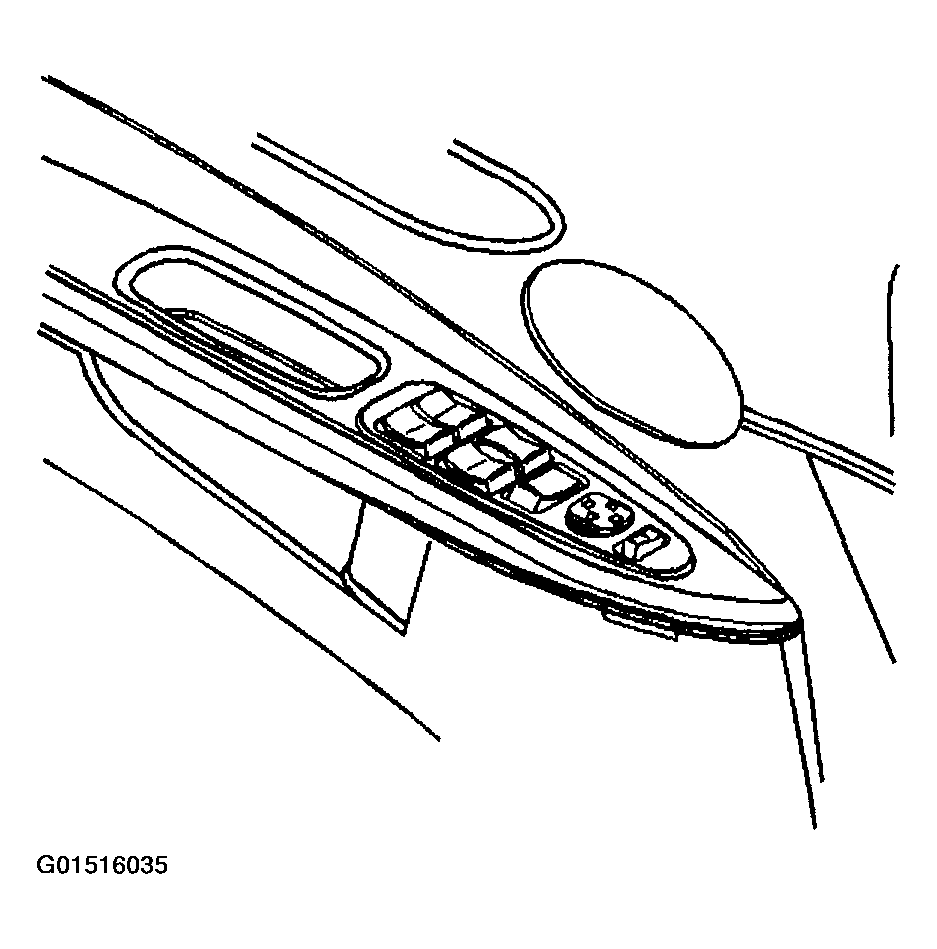

Fig 1: Removing Power Mirror Switch (Rendezvous - 1 Of 3)
Courtesy of GENERAL MOTORS CORP.
Disconnect the electrical connectors from the switch plate.

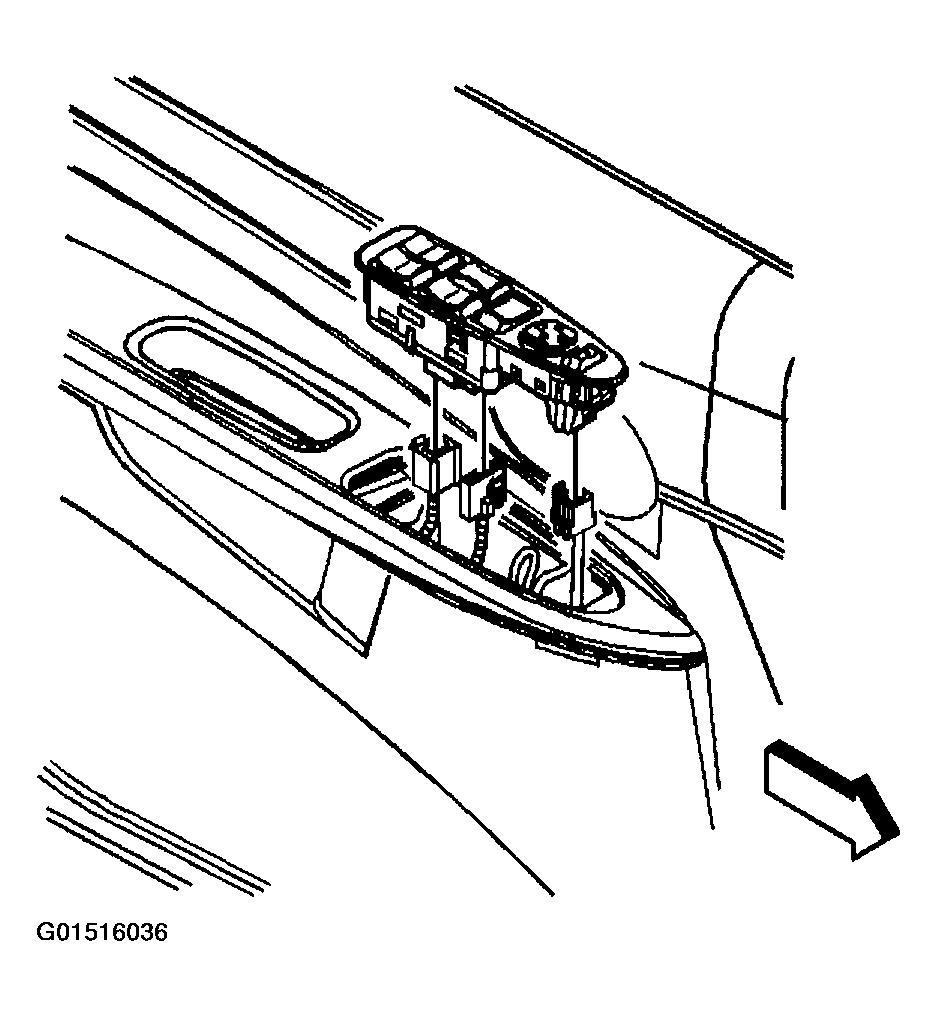

Fig 2: Removing Power Mirror Switch (Rendezvous - 2 Of 3)
Courtesy of GENERAL MOTORS CORP.
Use a small flat-bladed tool in order to remove the power mirror switch from the switch plate

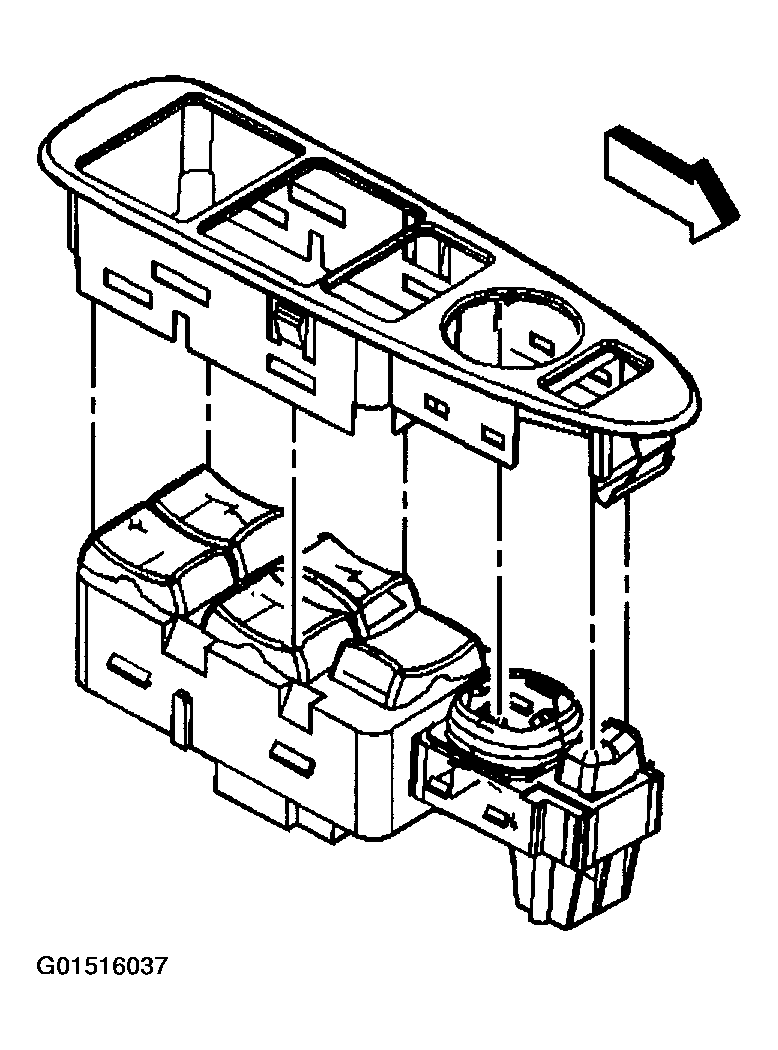

Fig 3: Removing Power Mirror Switch (Rendezvous - 3 Of 3)
Courtesy of GENERAL MOTORS CORP.
