Removal Procedure

  1. Lower the window to the down position.
  2. Remove the trim panel. Refer to TRIM PANEL REPLACEMENT - SIDE FRONT DOOR (AZTEK)  or TRIM PANEL REPLACEMENT - SIDE FRONT DOOR (RENDEZVOUS)  .
  3. Remove the water deflector. Refer to WATER DEFLECTOR REPLACEMENT - FRONT DOOR  .
  4. Remove the outer belt sealing strip. Refer to SEALING STRIP REPLACEMENT - FRONT DOOR WINDOW BELT OUTER  .
  5. Remove the screw from the window channel.
  6. Remove the window channel from the front door frame.

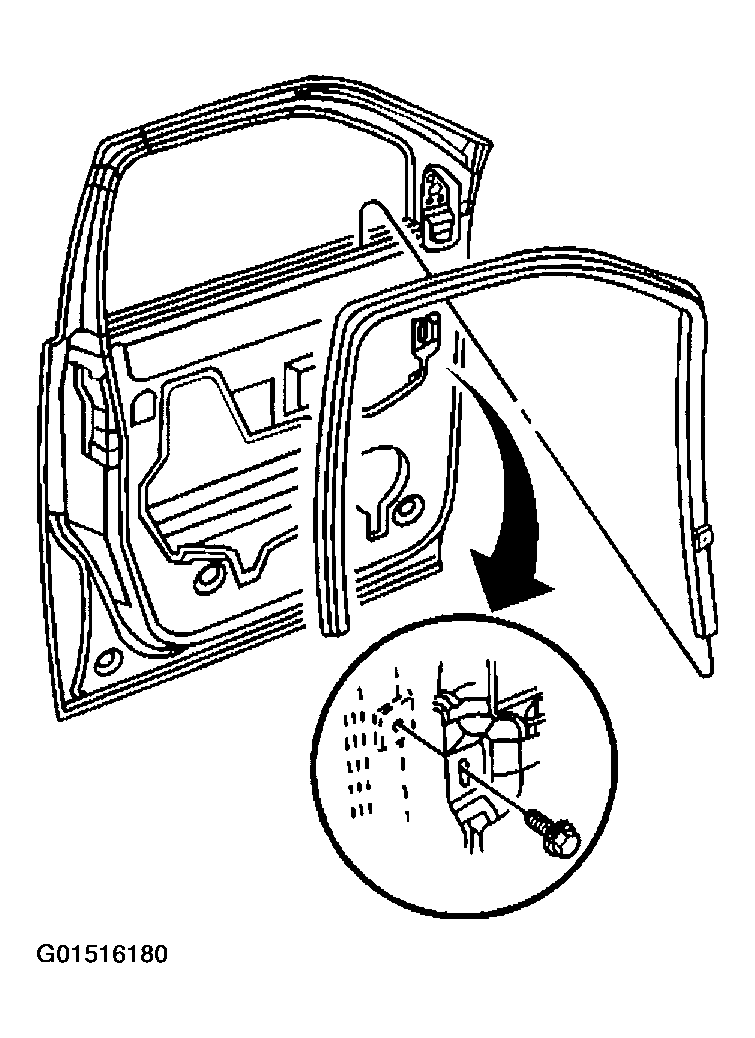

    Fig 1: Removing Front Door Window Weatherstrip
    G01516180Courtesy of GENERAL MOTORS CORP.
