Stationary Windows Connector End Views

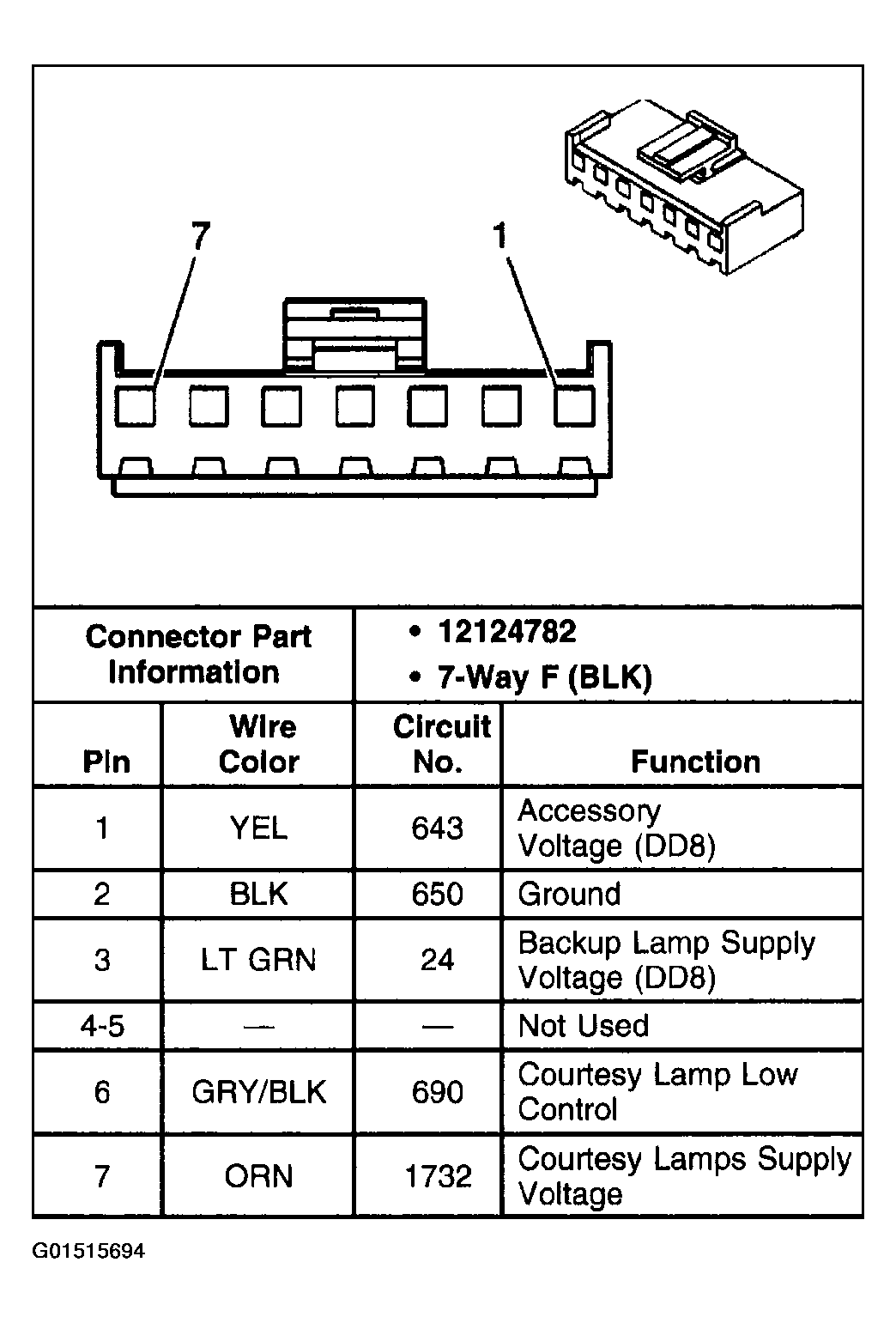

Fig 1: Identifying Inside Rearview Mirror Connector Terminals

Courtesy of GENERAL MOTORS CORP.

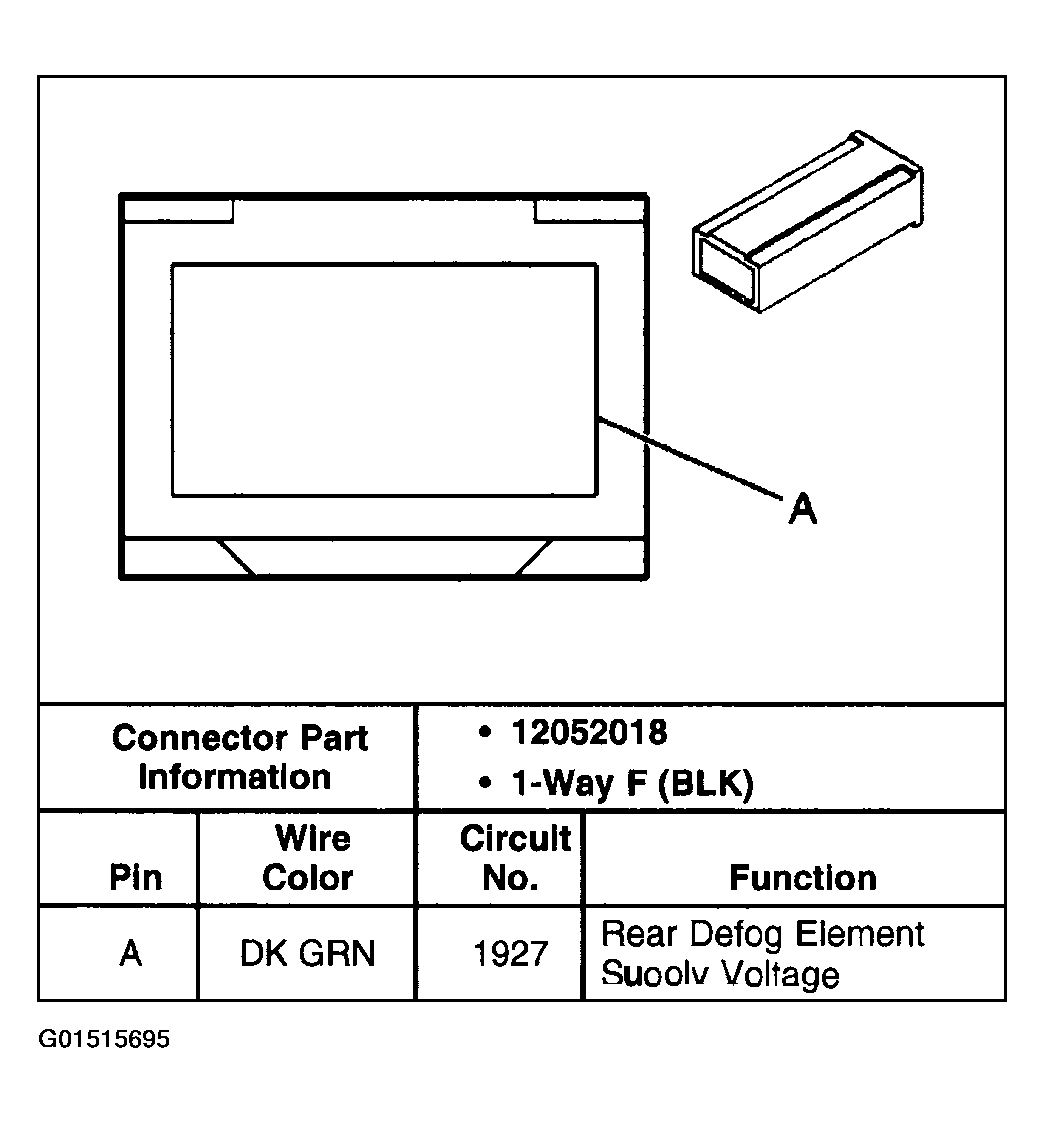

Fig 2: Identifying Rear Window Defogger Terminals

Courtesy of GENERAL MOTORS CORP.
