Scan Tool Output Controls Data List

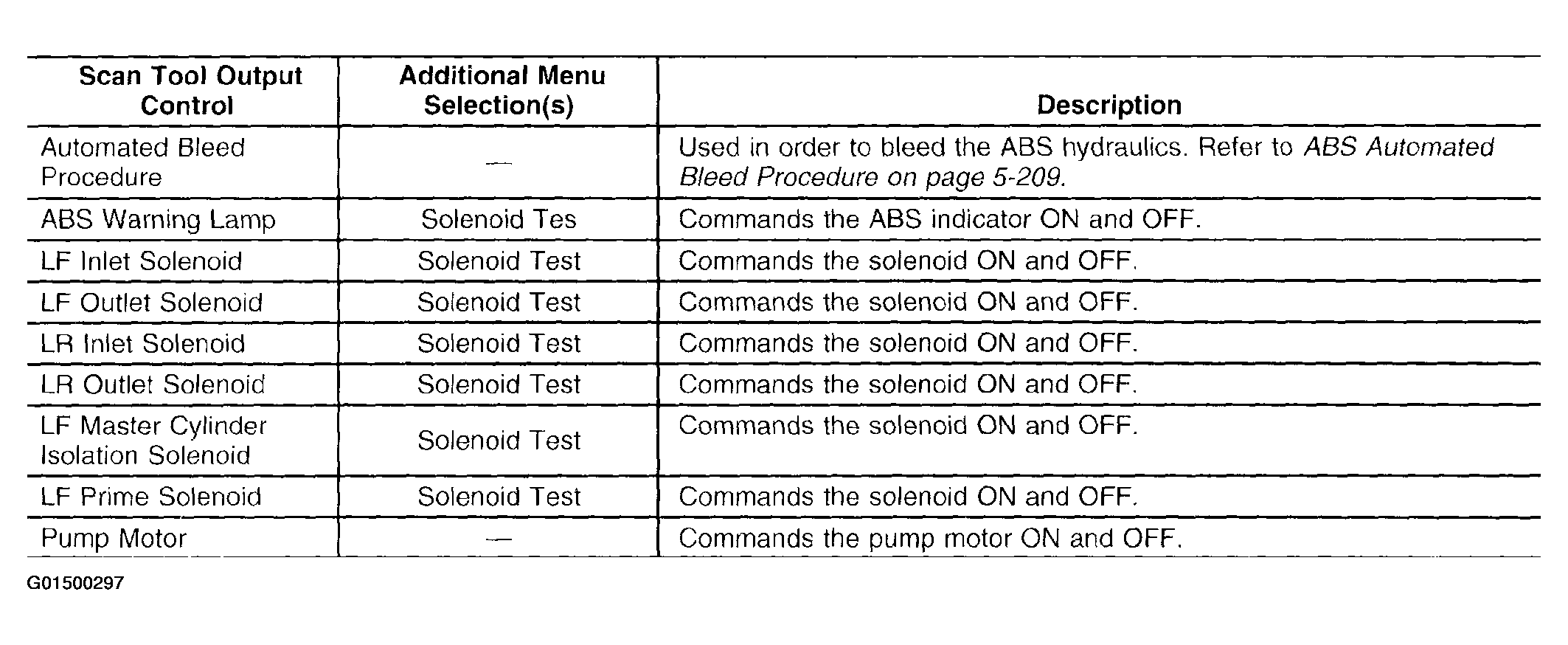

Fig 1: Scan Tool Output Controls Data List (1 Of 2)

Courtesy of GENERAL MOTORS CORP.

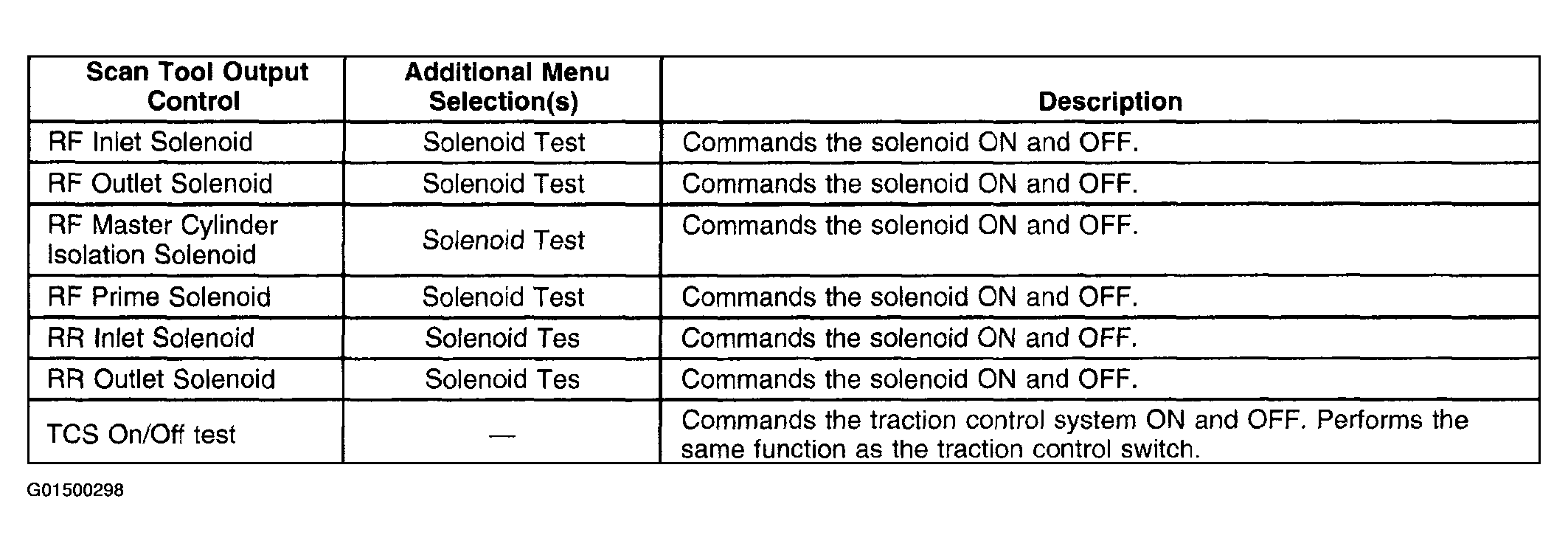

Fig 2: Scan Tool Output Controls Data List (2 Of 2)

Courtesy of GENERAL MOTORS CORP.
