Installation Procedure

Install the upper jumper harness connector from the rear body pass-thru connector.
Install the jumper harness grommet to the retainer.
Install the wheel speed sensor connectors (2,3).

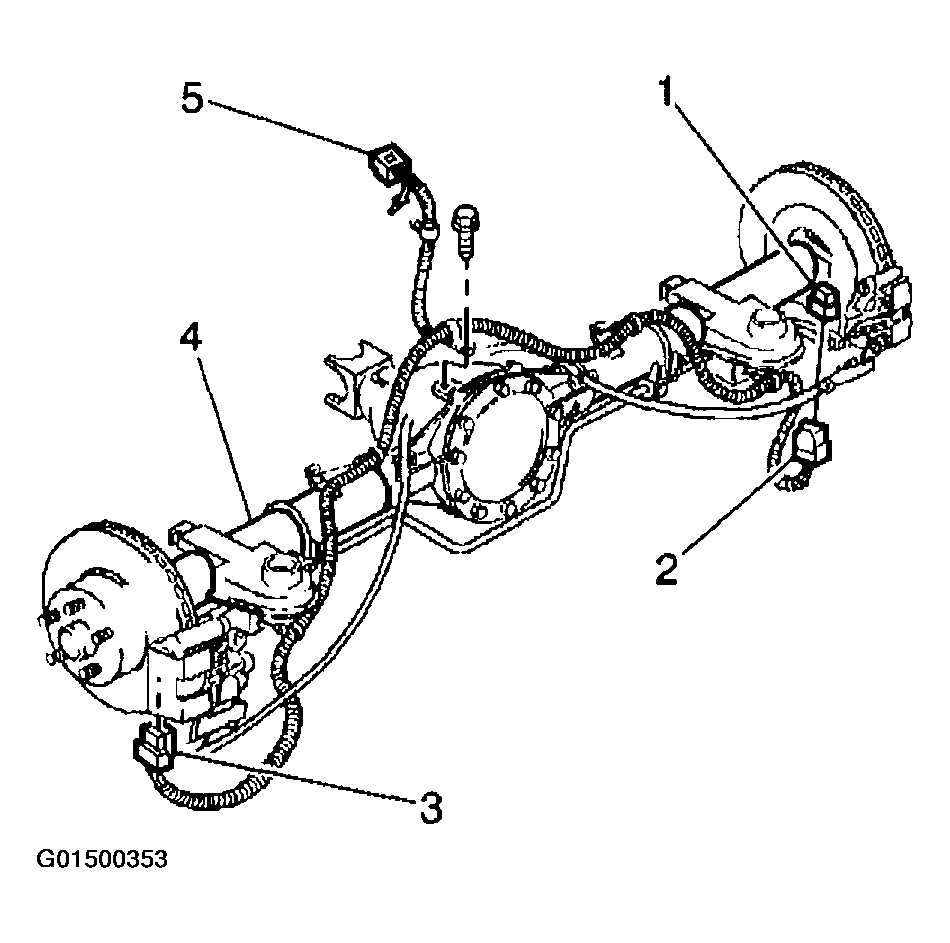

Fig 1: Installing Jumper Harness

Courtesy of GENERAL MOTORS CORP.
