Removal Procedure

  1. Remove the wheel speed sensor connectors (2,3).
  2. Remove the jumper harness grommet from the retainer.
  3. Remove the upper jumper harness connector from the rear body pass-thru connector.

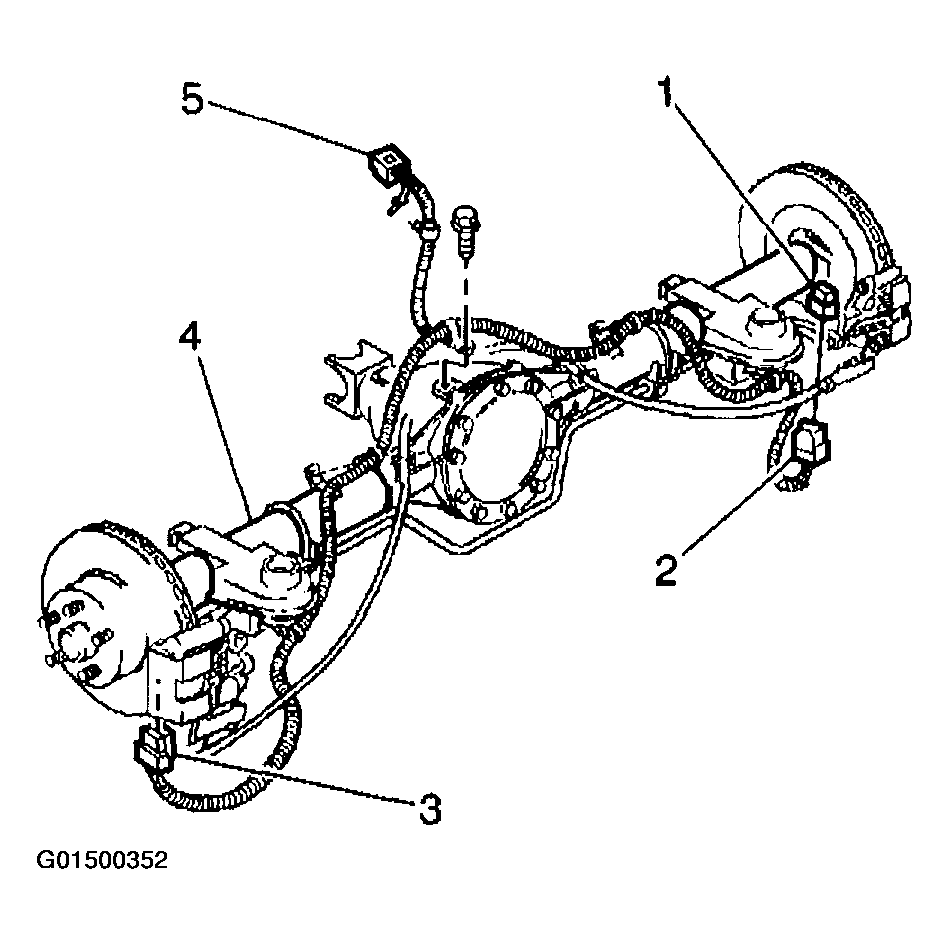

Fig 1: Removing Jumper Harness
G01500352Courtesy of GENERAL MOTORS CORP.
