Engine Controls - PID Values, Pcm Connector Views And Terminal Identification
›
PID Value Charts
›
PID Values
PID Values

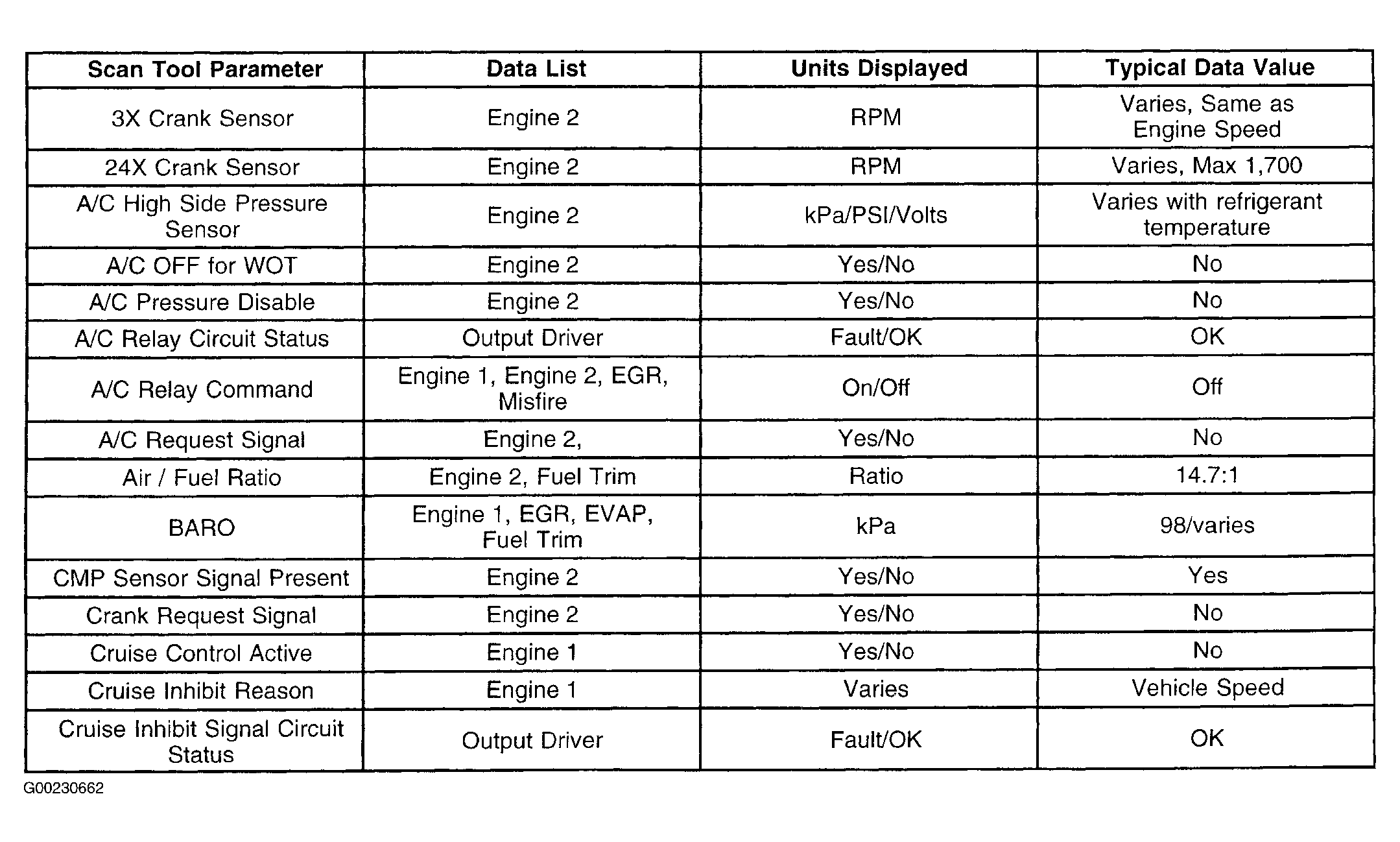

Fig 1: PID Values (1 Of 4)
Courtesy of GENERAL MOTORS CORP.

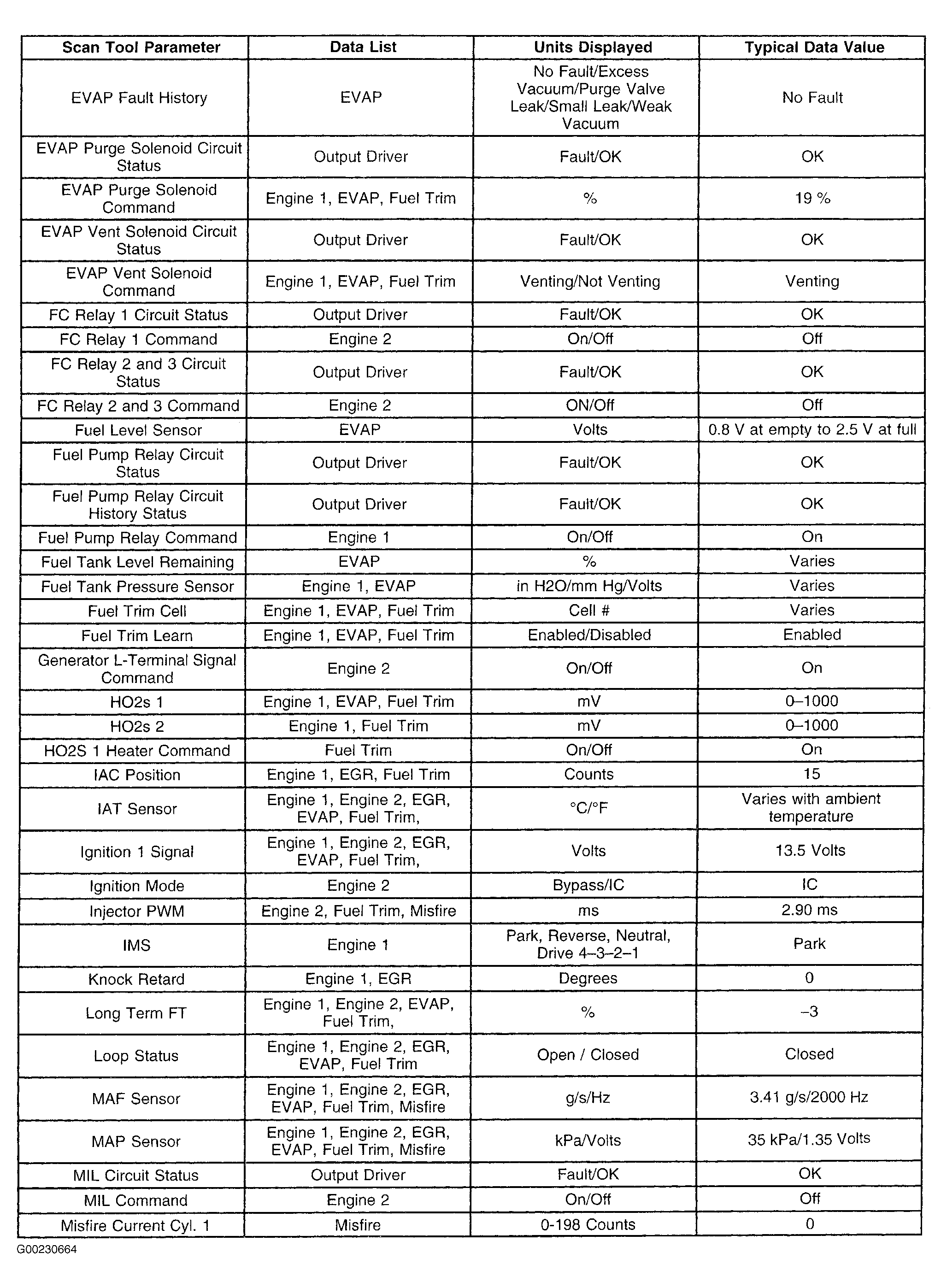

Fig 2: PID Values (2 Of 4)
Courtesy of GENERAL MOTORS CORP.

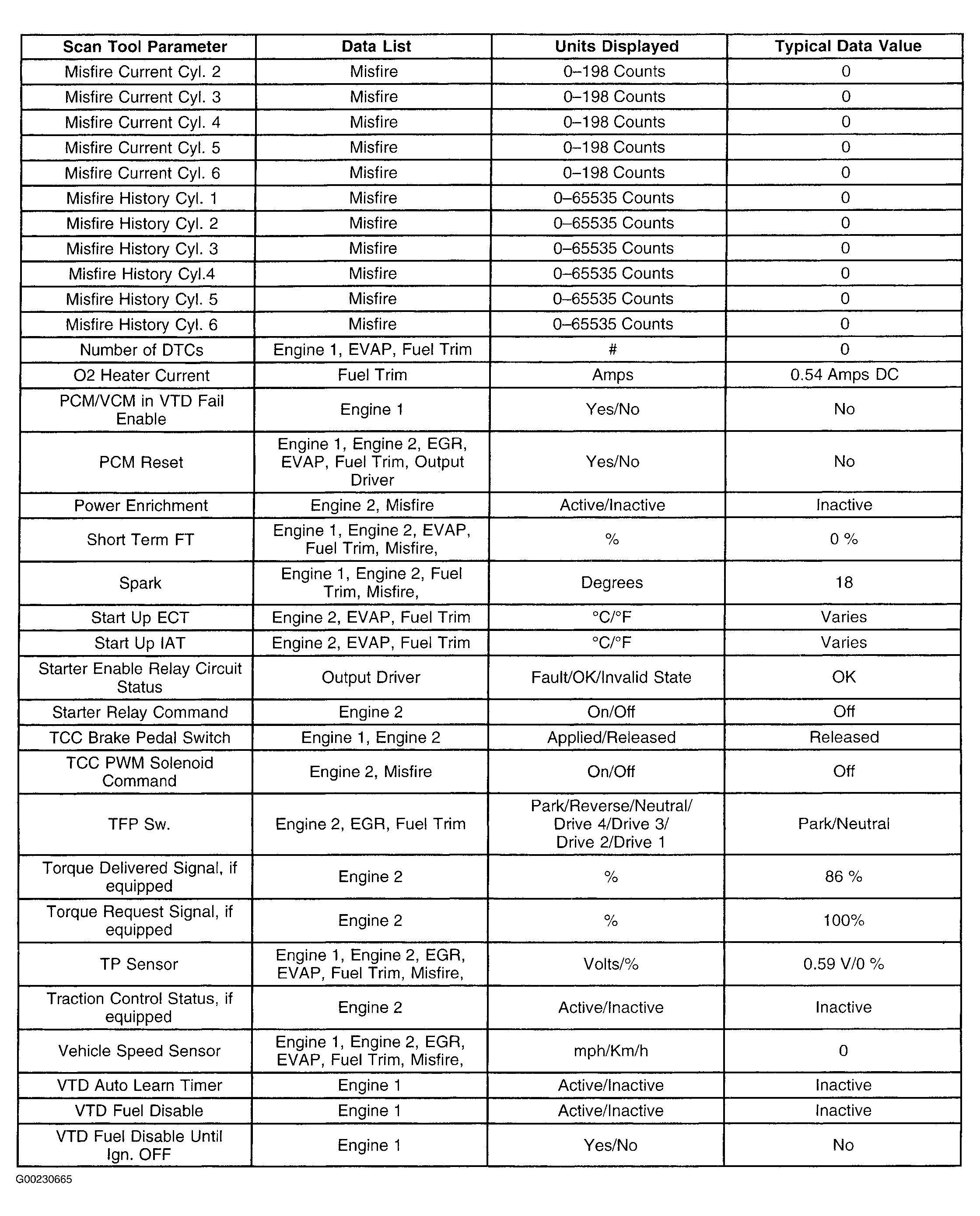

Fig 3: PID Values (3 Of 4)
Courtesy of GENERAL MOTORS CORP.
Fig 4: PID Values (4 Of 4)
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
