A/T In-Line 20-Way Connector End View - Engine Side

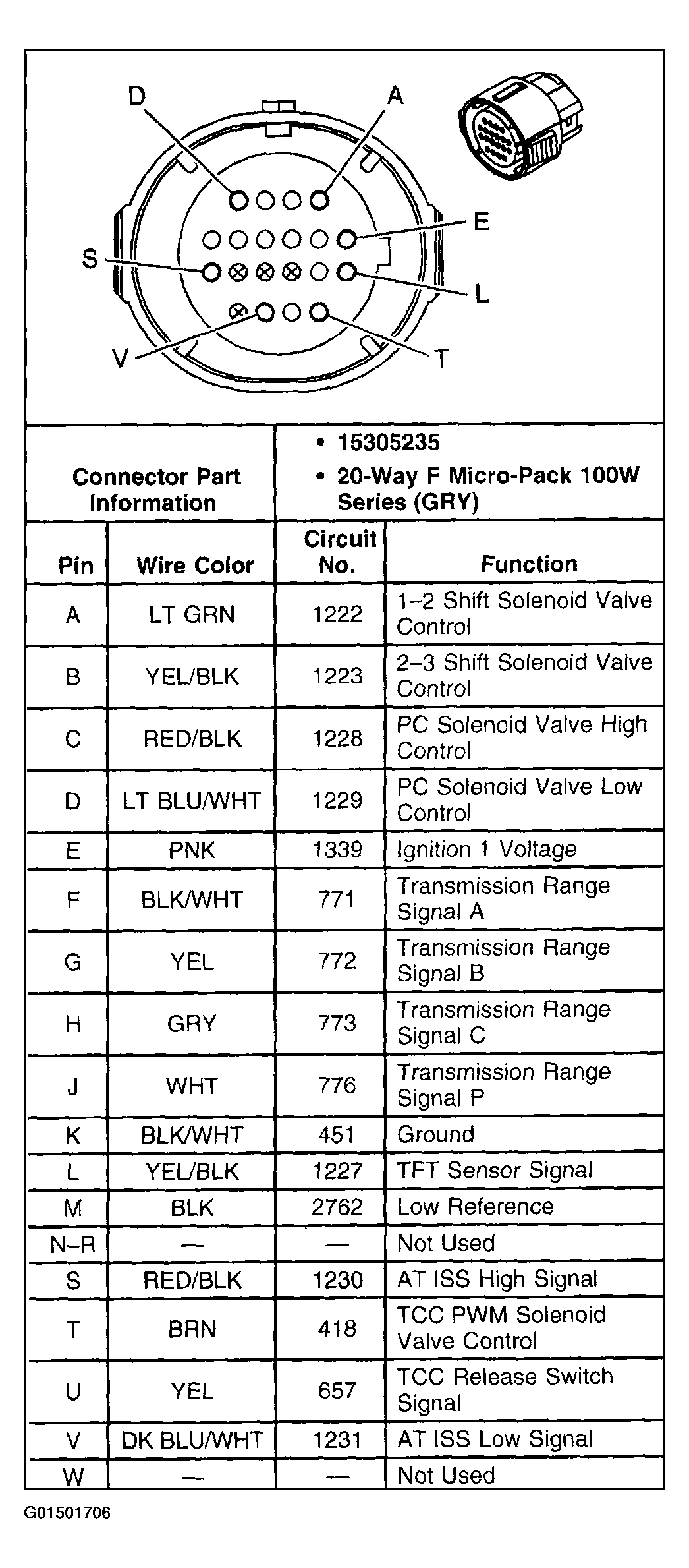

Fig 1: A/T In-Line 20-Way Connector - Engine Side
G01501706Courtesy of GENERAL MOTORS CORP.
