A/T Shift Lock Control Solenoid Connector End View - Aztek
A/T Shift Lock Control Solenoid Connector End View - Aztek

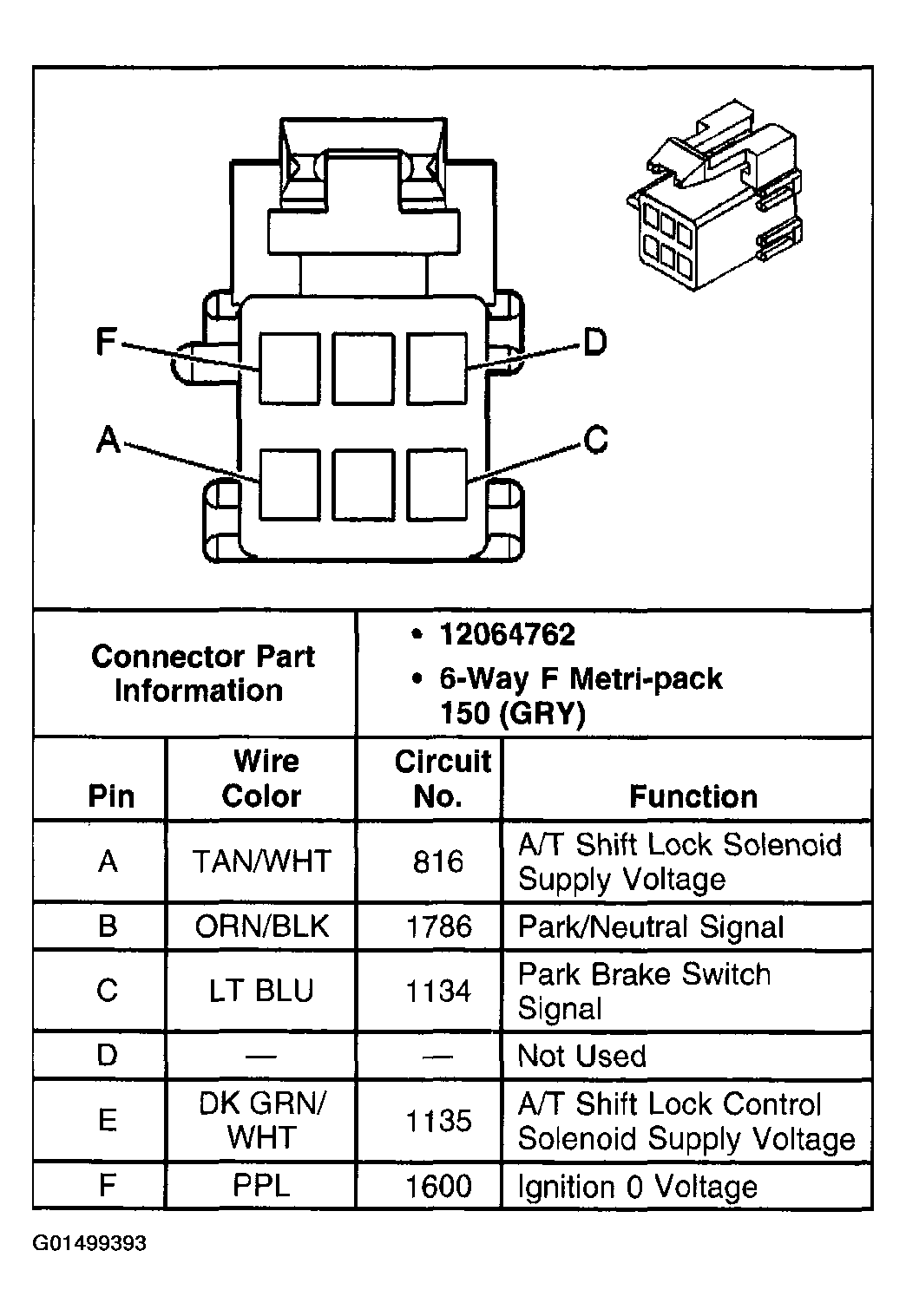

Fig 1: A/T Shift Lock Control Solenoid Connector - Aztek
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
