Air Inflator Switch Connector End View
Air Inflator Switch Connector End View

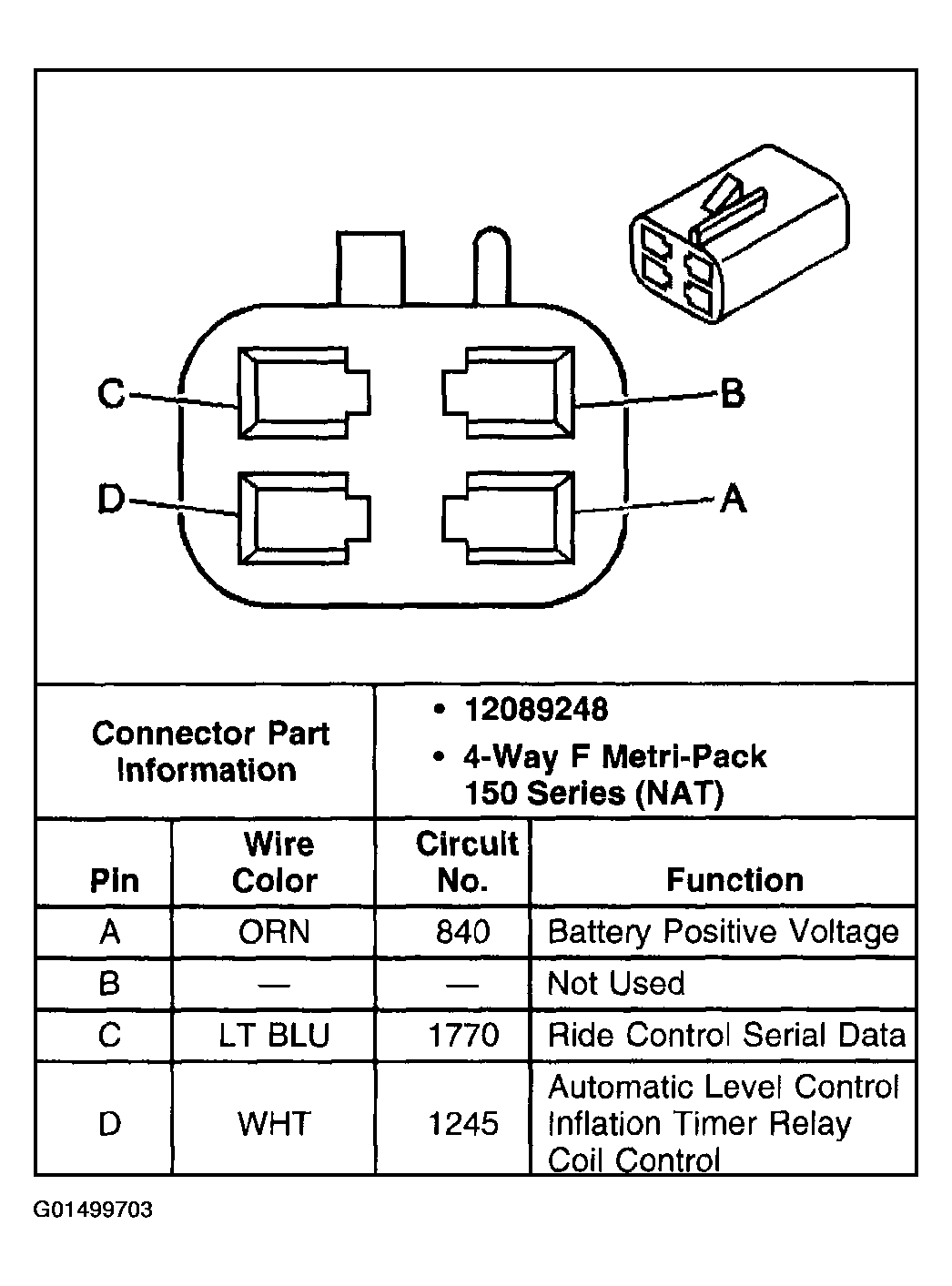

Fig 1: Air Inflator Switch
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
