Cooling Fan Right Connector End View
Cooling Fan Right Connector End View

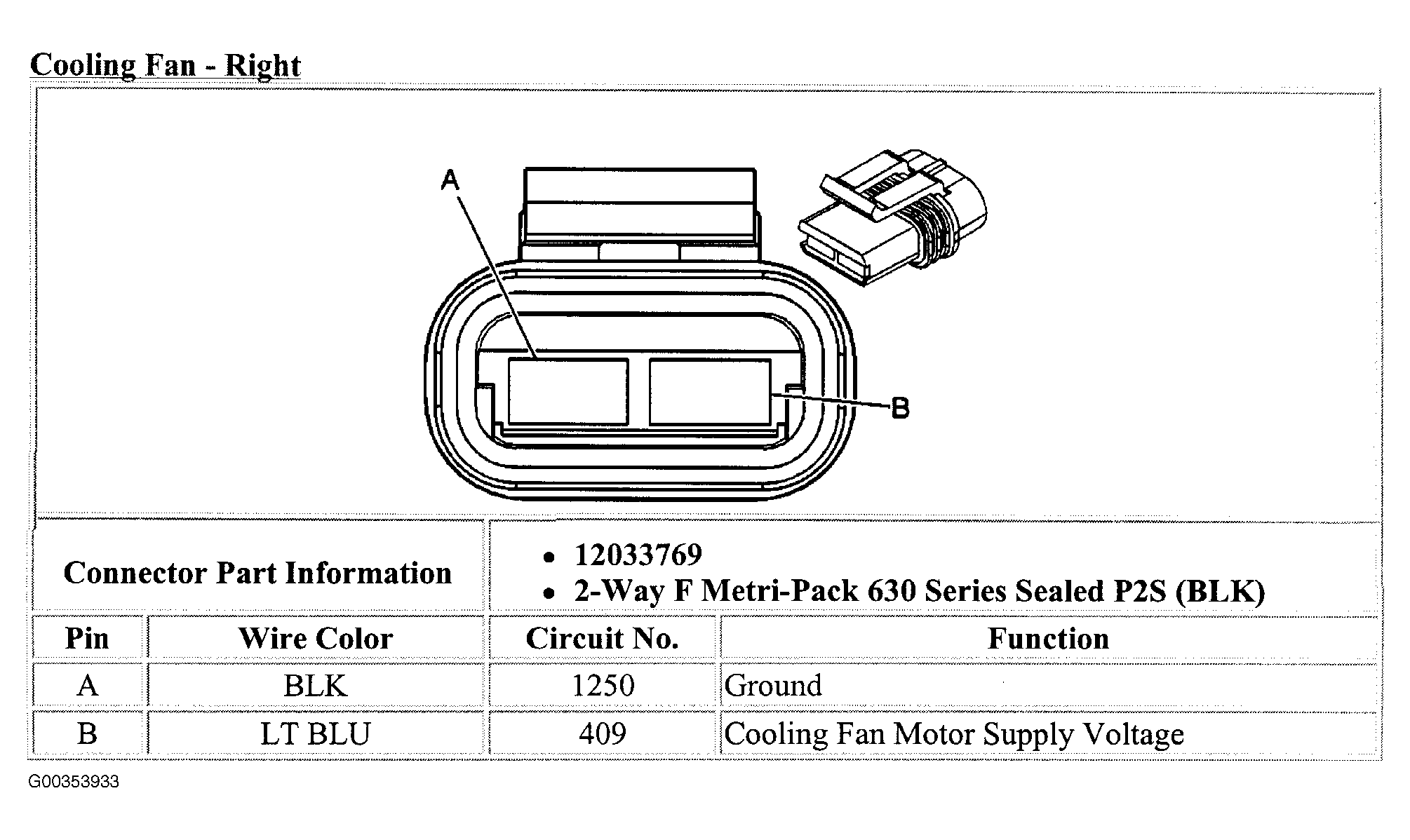

Fig 1: Cooling Fan Right Connector
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
