Driver Door Latch Connector End View
Driver Door Latch Connector End View

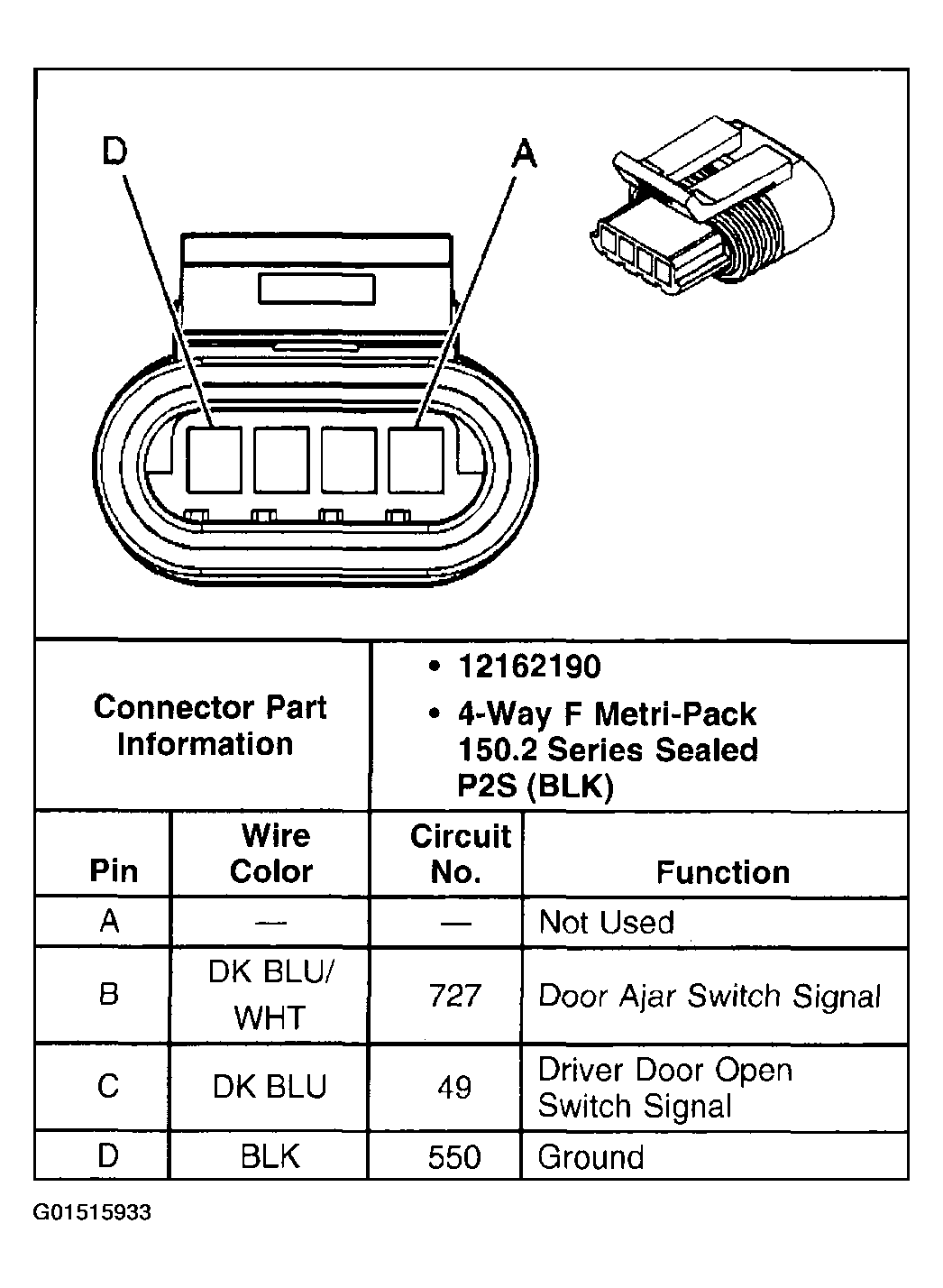

Fig 1: Driver Door Latch
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
