Front Passenger Door Lock Switch Connector End View

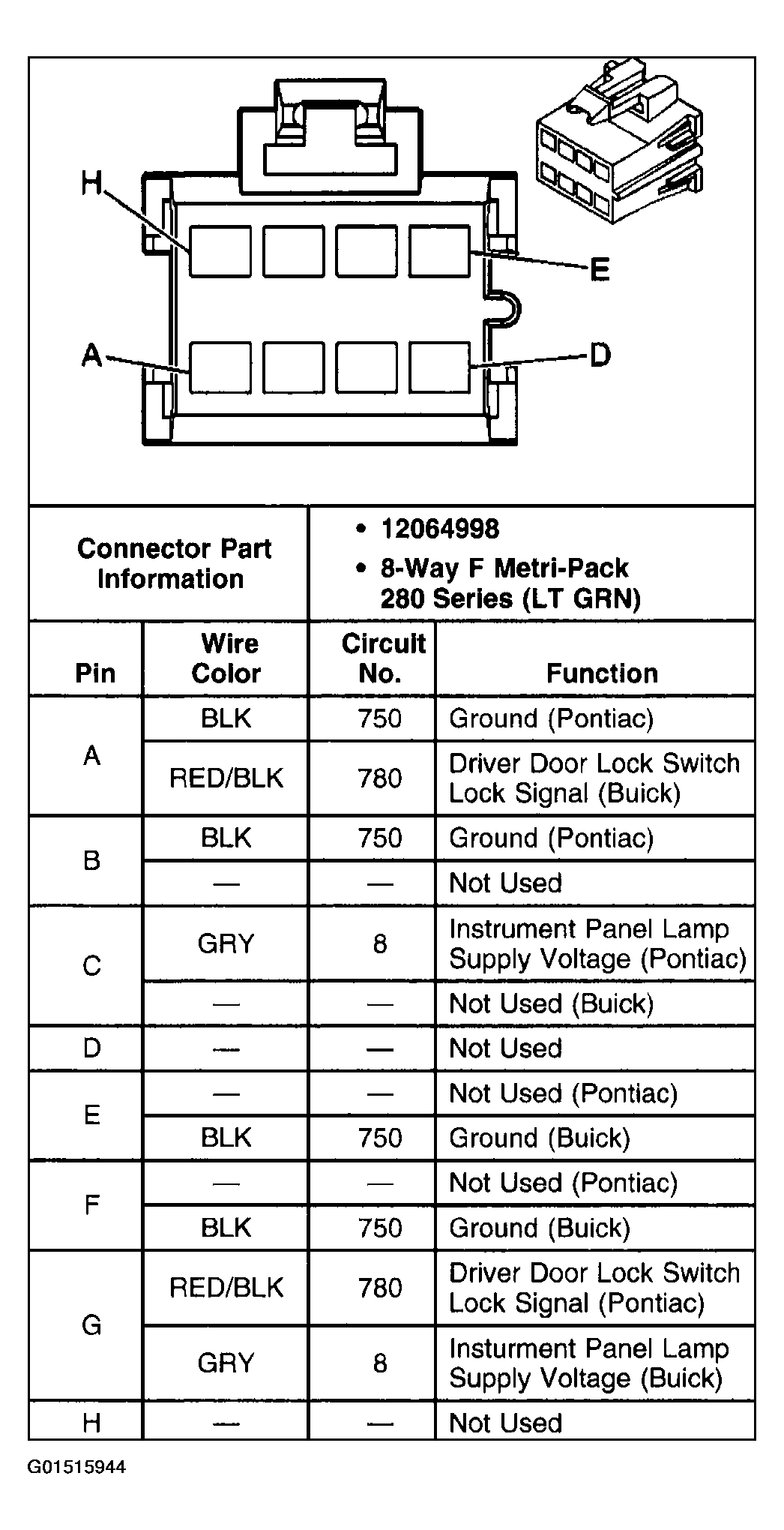

Fig 1: Front Passenger Door Lock Switch
G01515944Courtesy of GENERAL MOTORS CORP.
