Front Passenger Window Motor Connector End View

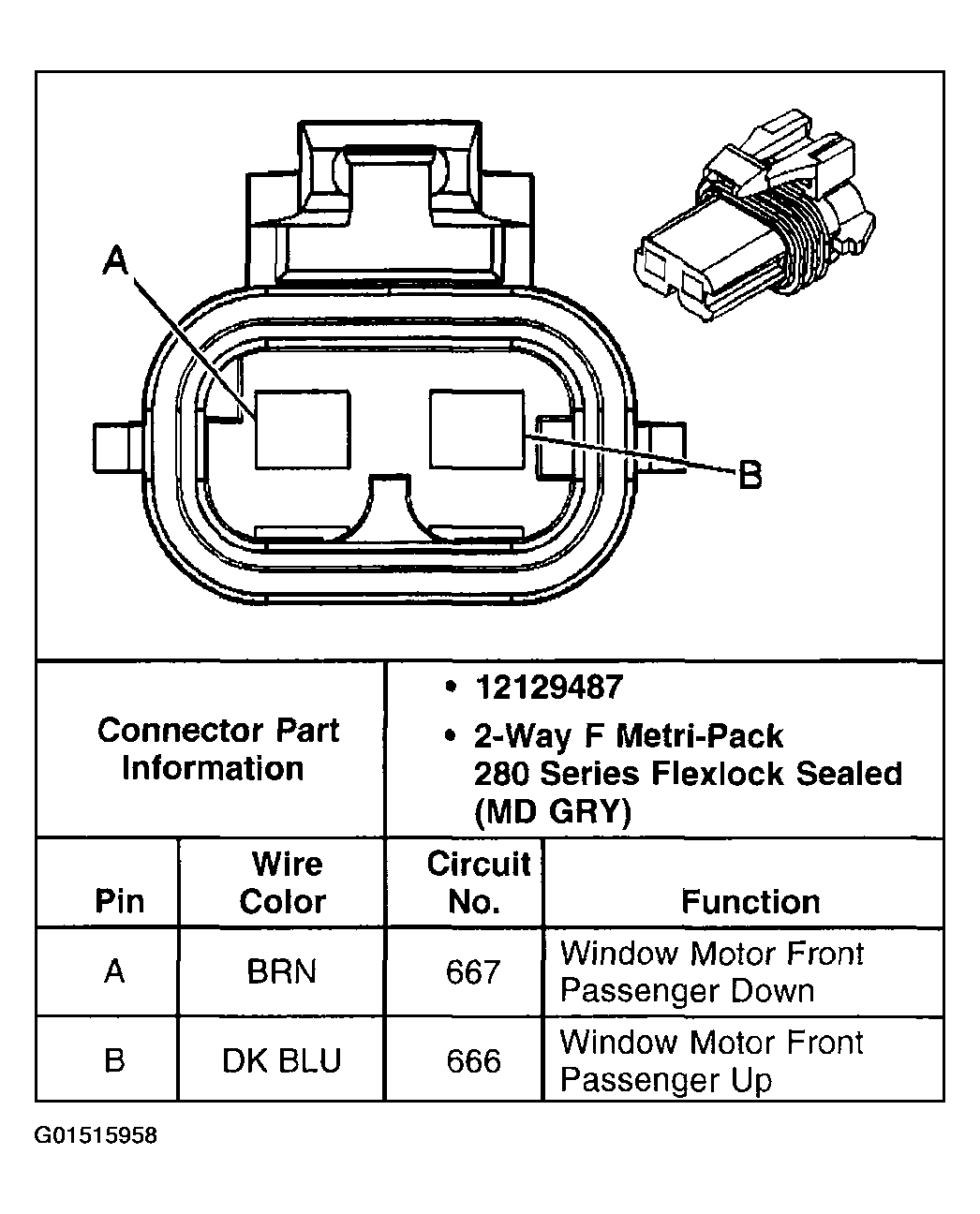

Fig 1: Front Passenger Window Motor
G01515958Courtesy of GENERAL MOTORS CORP.
