Head Up Display (HUD) Connector End View
Head Up Display (HUD) Connector End View

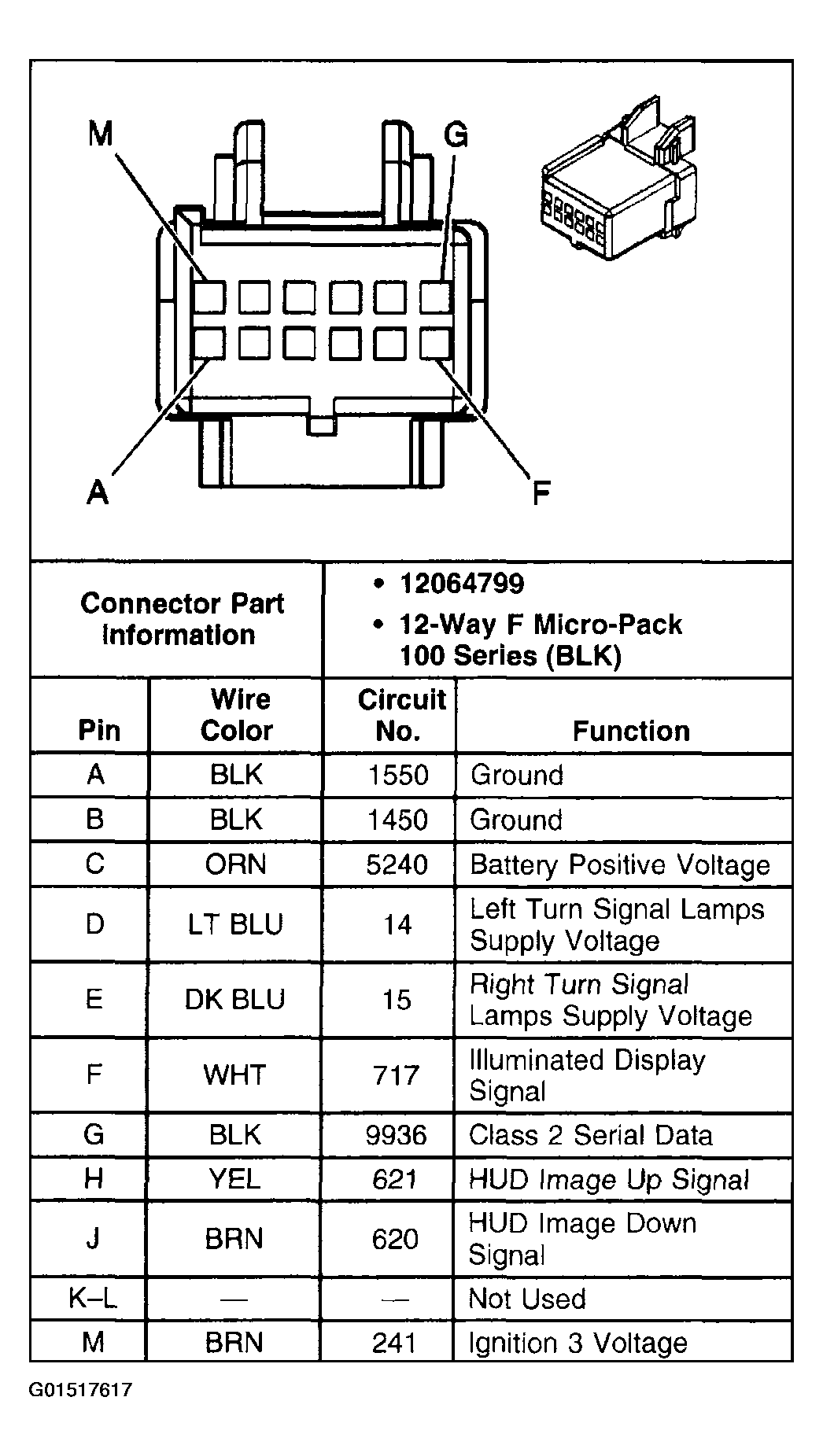

Fig 1: Head Up Display (HUD)
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
