Head Up Display (HUD) Switch Connector End View

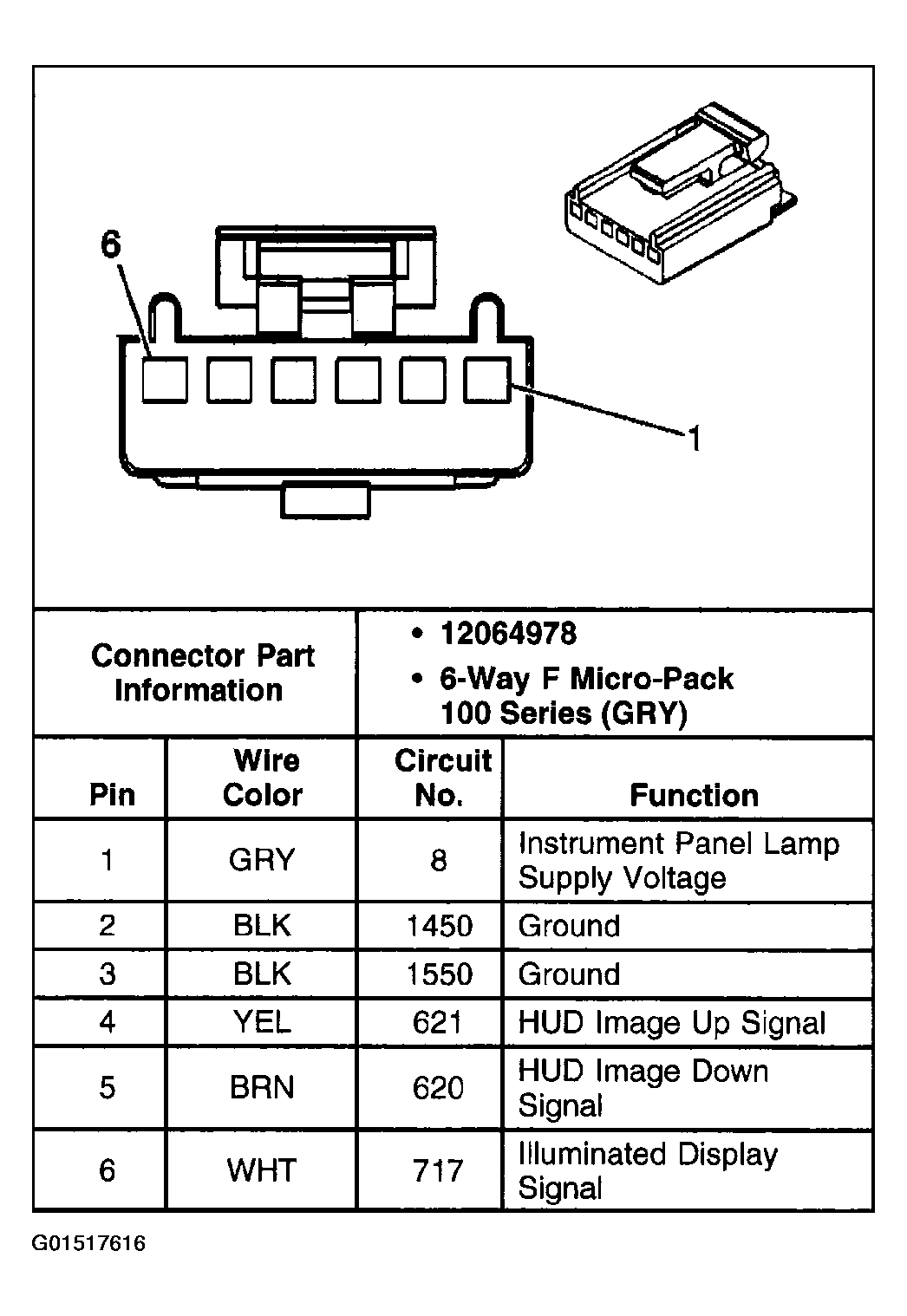

Fig 1: Head Up Display (HUD) Switch
G01517616Courtesy of GENERAL MOTORS CORP.
