Ignition Lock Cylinder Control Actuator Connector End View
Ignition Lock Cylinder Control Actuator Connector End View

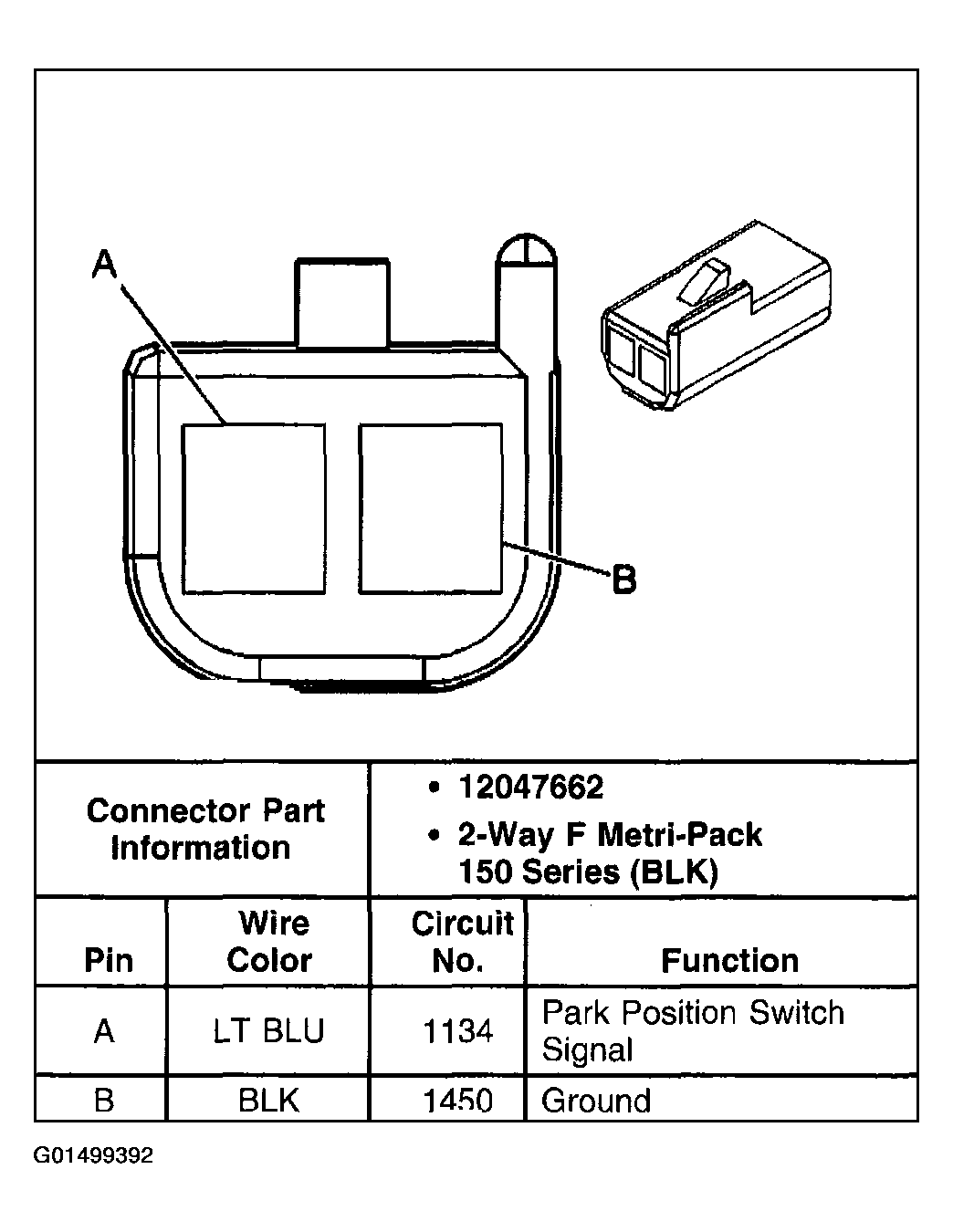

Fig 1: Ignition Lock Cylinder Control Actuator
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
