In-Line Connector End View C420

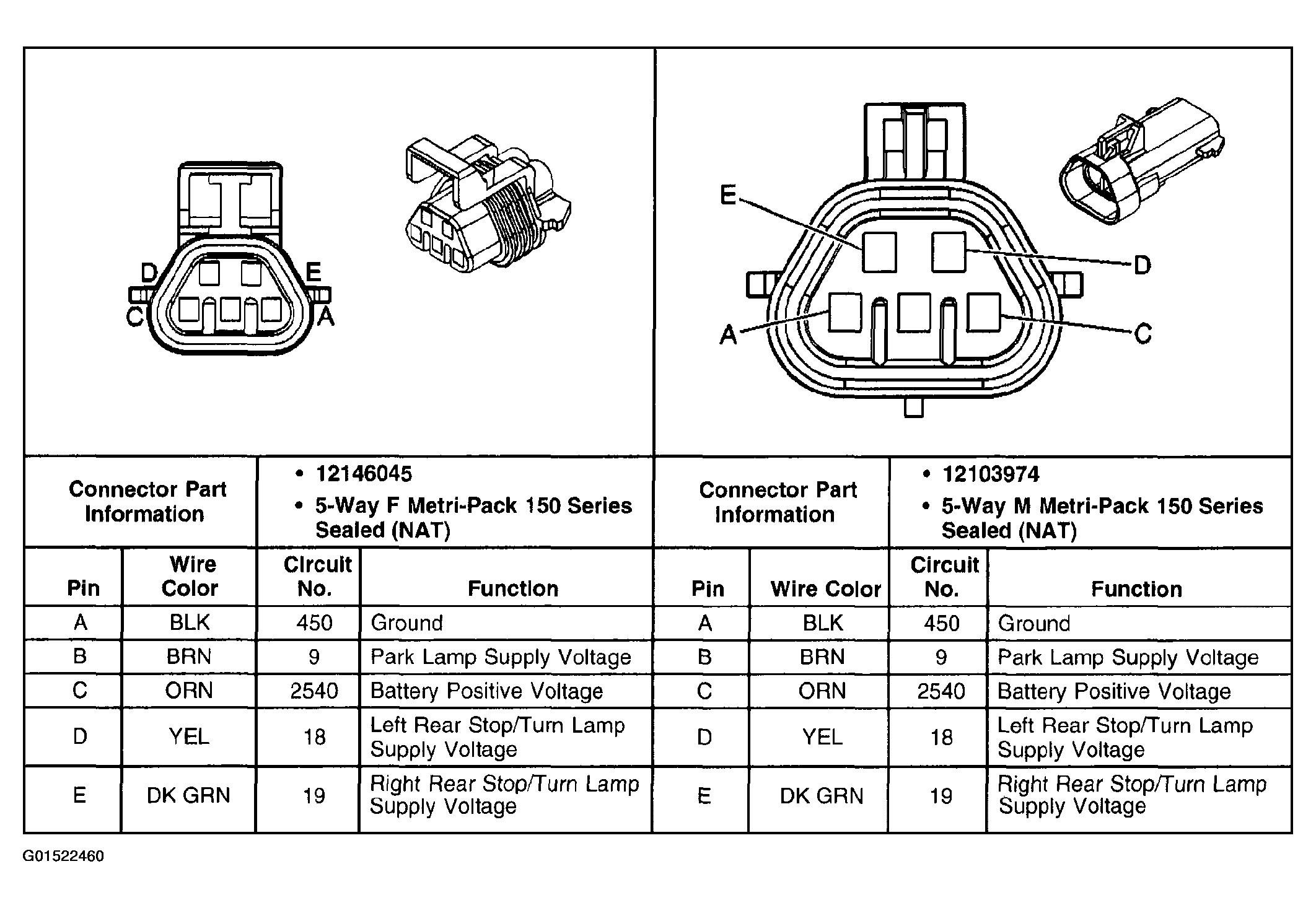

Fig 1: In-Line Connector C420
G01522460Courtesy of GENERAL MOTORS CORP.
