Left Horn (Low Note) Connector End View
Left Horn (Low Note) Connector End View

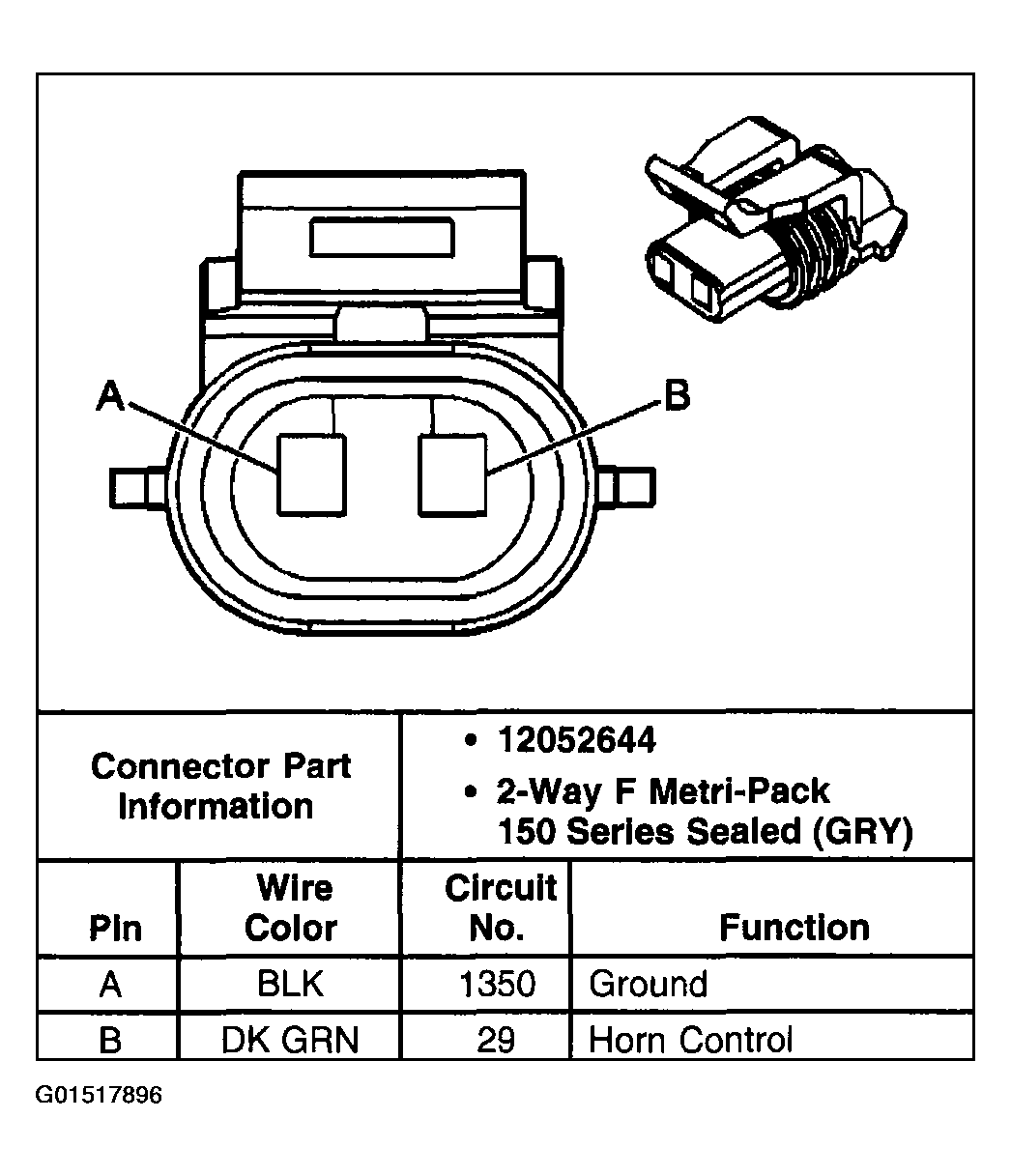

Fig 1: Left Horn (Low Note)
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
