Liftgate Latch Connector End View (Buick)

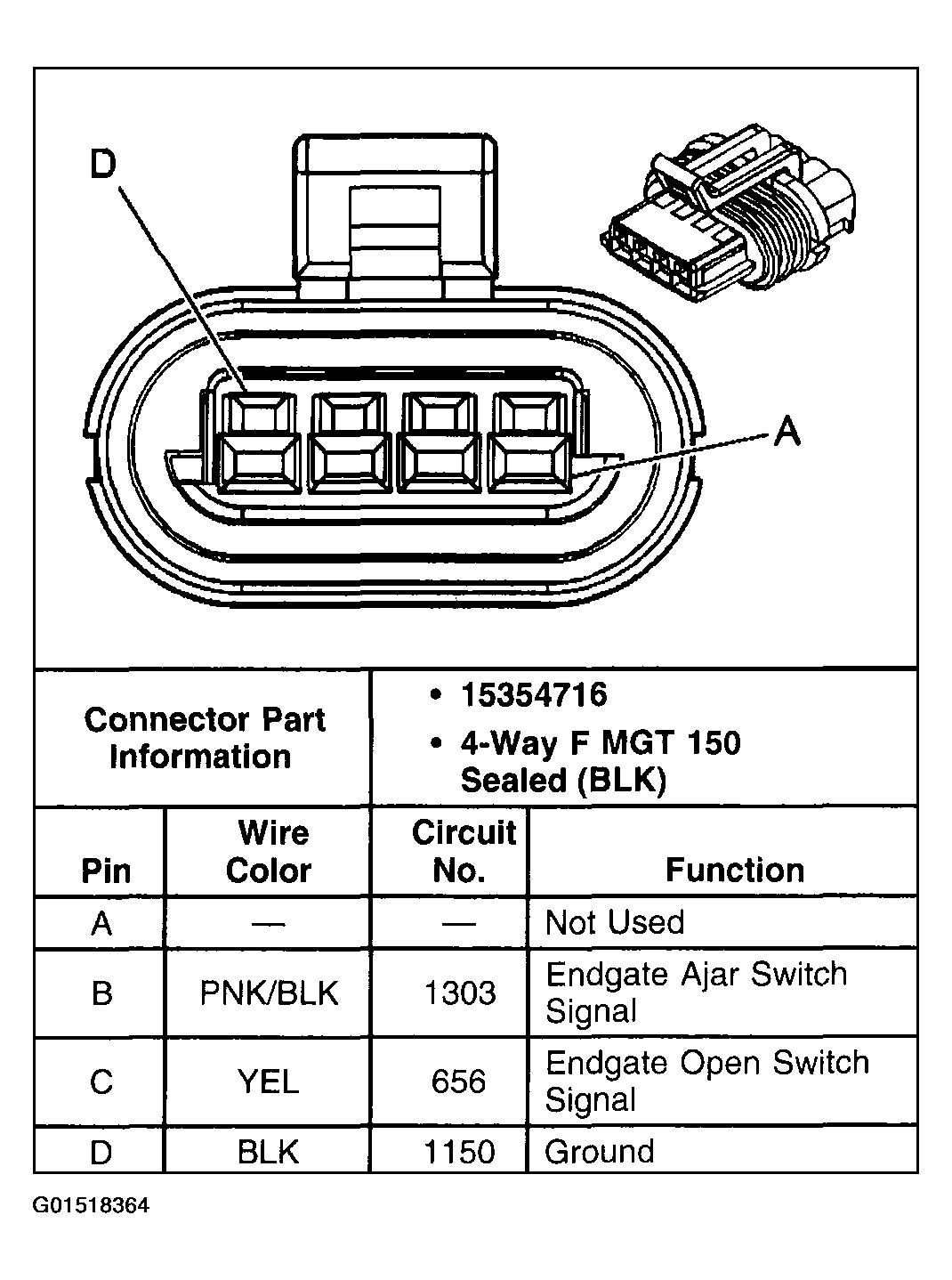

Fig 1: Liftgate Latch (Buick)
G01518364Courtesy of GENERAL MOTORS CORP.
