Lock Cylinder Switch Connector End View - Endgate
Lock Cylinder Switch Connector End View - Endgate

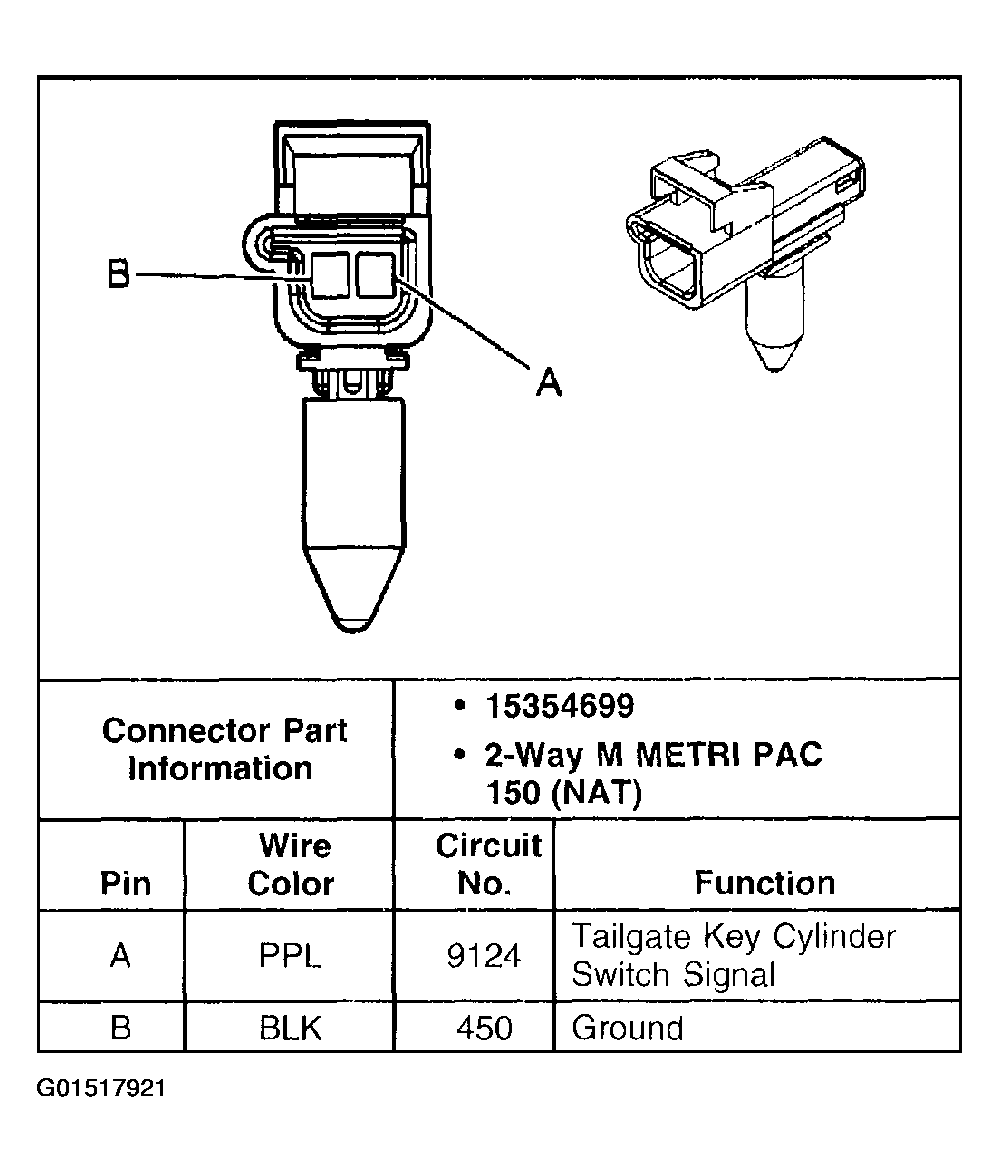

Fig 1: Lock Cylinder Switch - Endgate
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
