Mode Actuator Connector End View

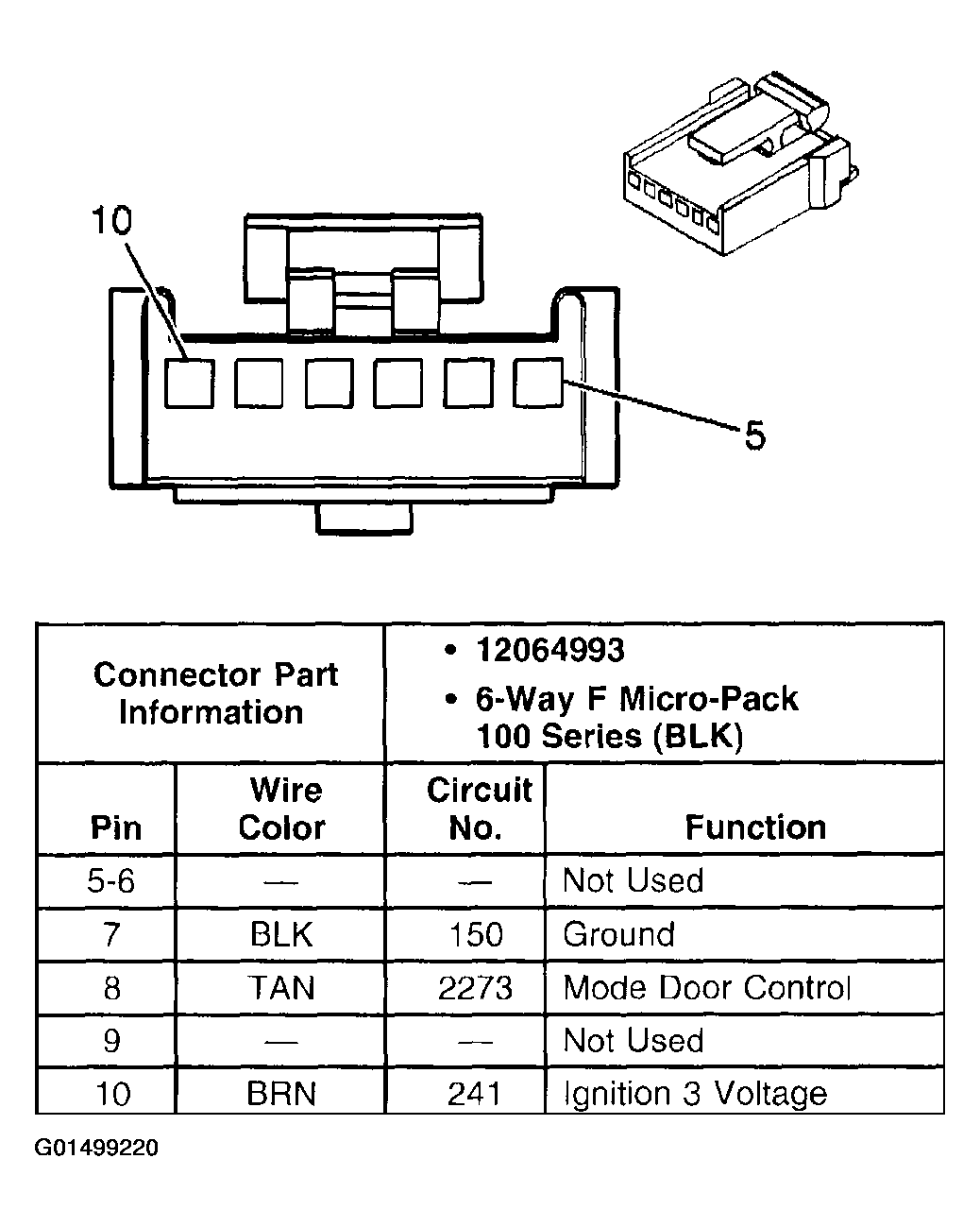

Fig 1: Mode Actuator
G01499220Courtesy of GENERAL MOTORS CORP.

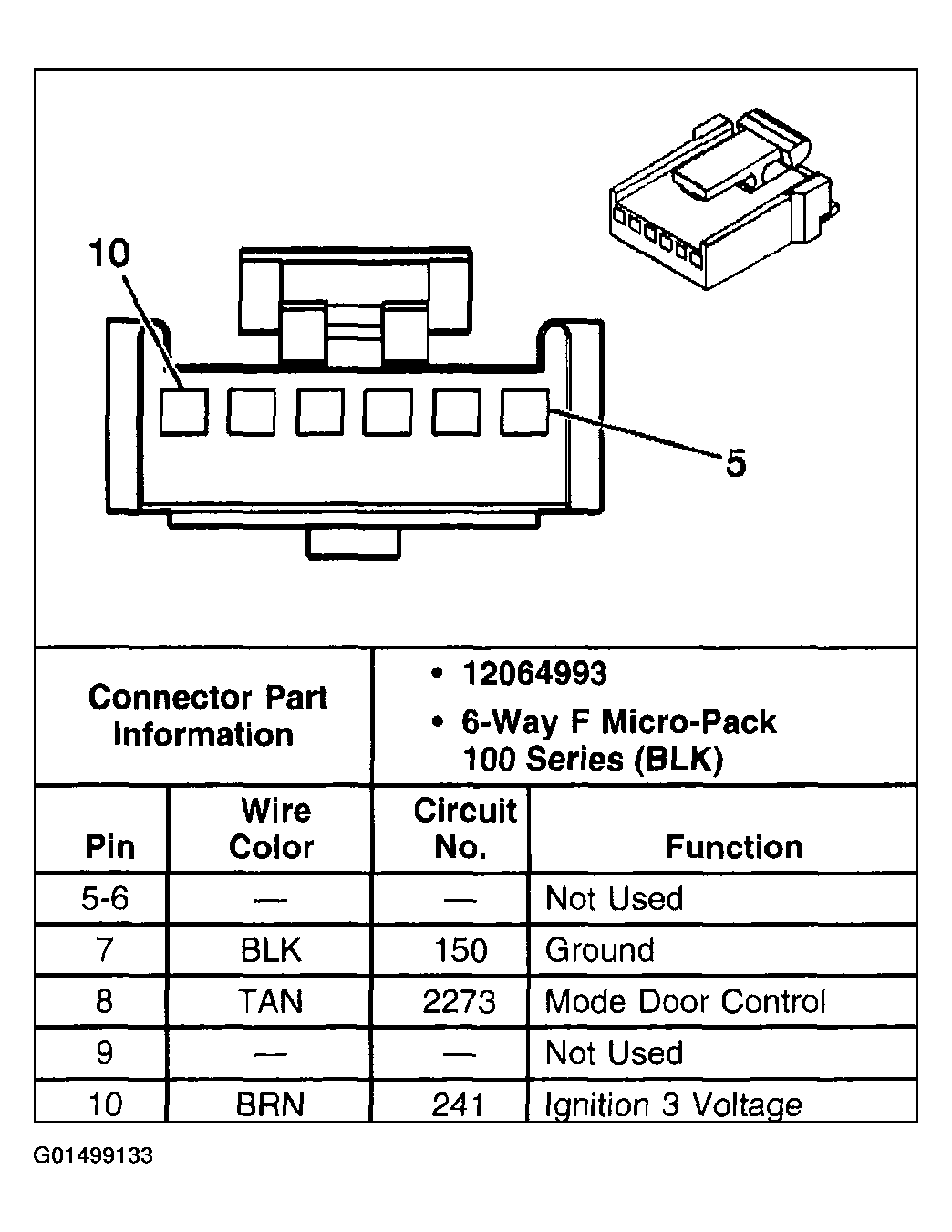

Fig 1: Mode Actuator
G01499133Courtesy of GENERAL MOTORS CORP.
