Sunroof Module Connector End View C2 (1 Of 2)

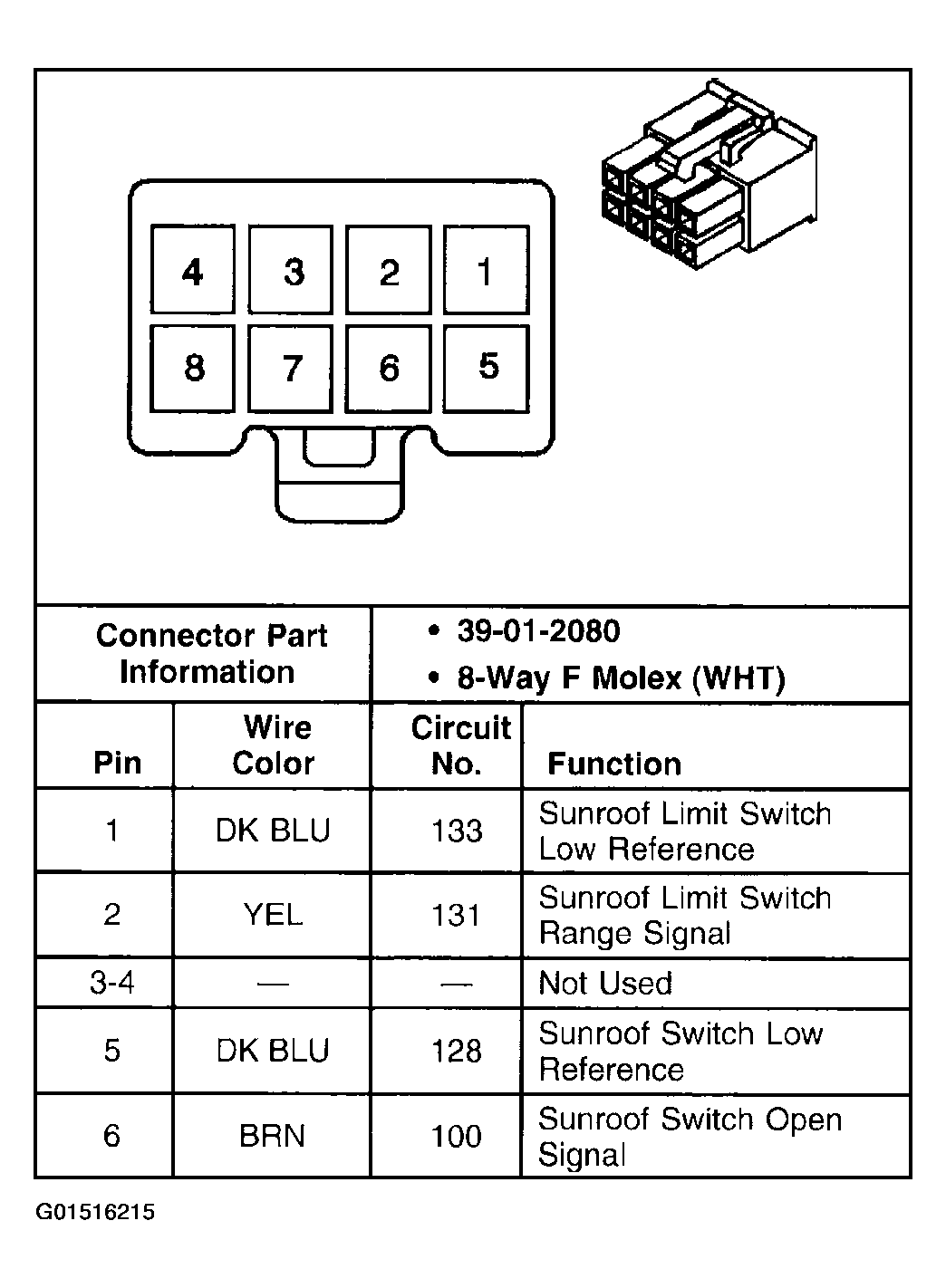

Fig 1: Sunroof Module C2 (1 Of 2)
G01516215Courtesy of GENERAL MOTORS CORP.
