Turn Signal/Multifunction Switch Connector End View - C1

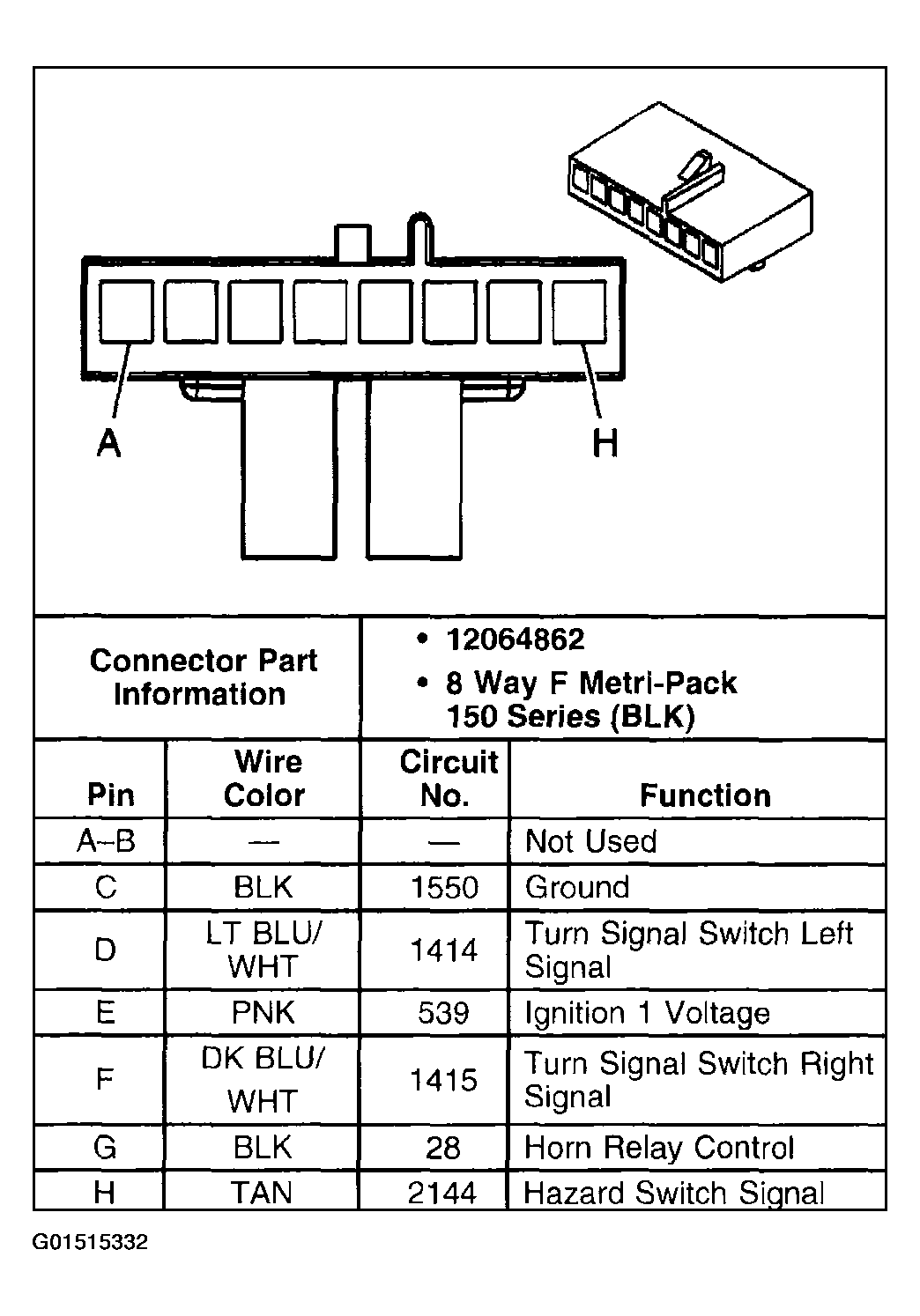

Fig 1: Turn Signal/Multifunction Switch - C1
G01515332Courtesy of GENERAL MOTORS CORP.
