Window Master Switch Connector End View (C1)

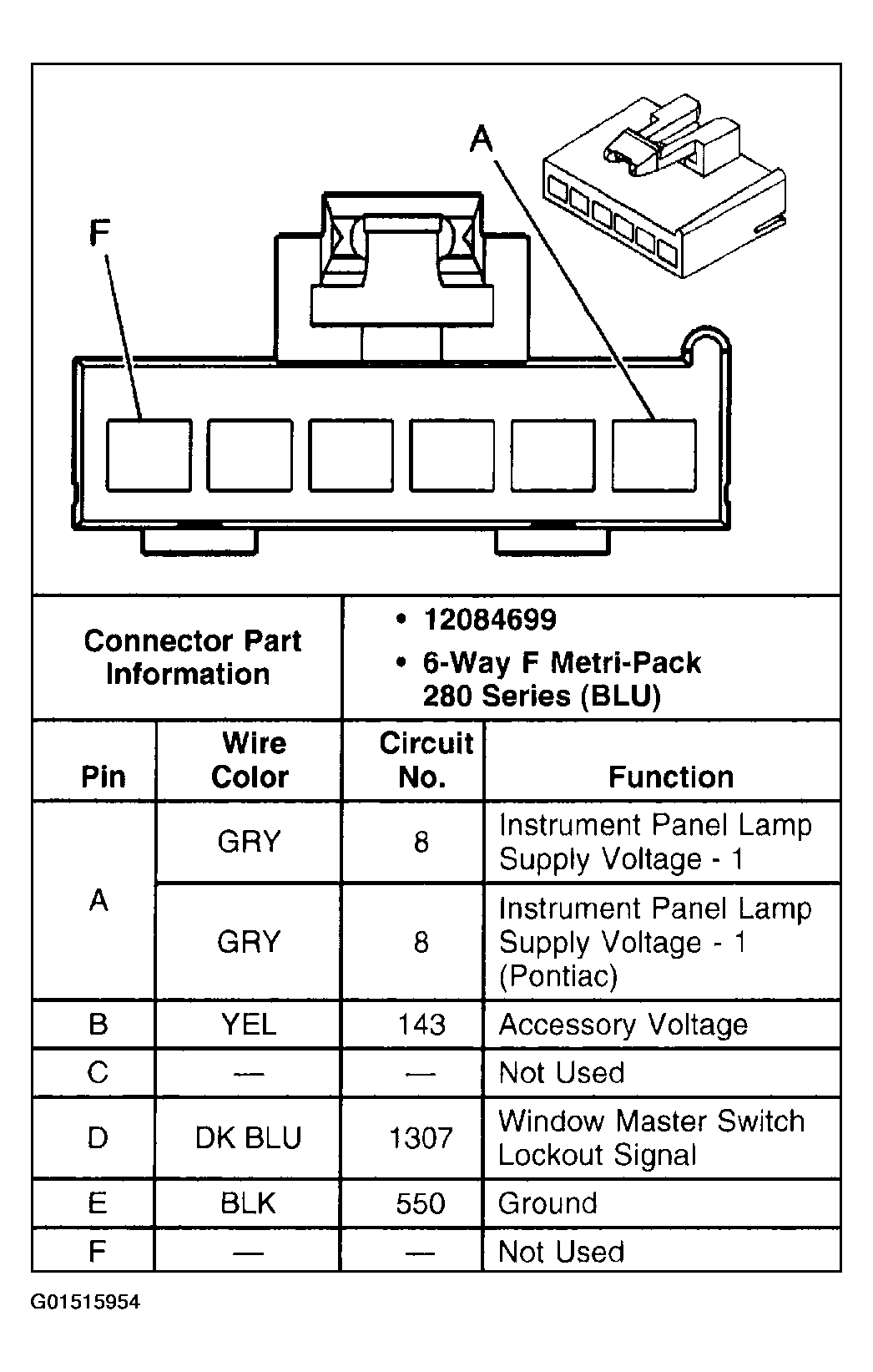

Fig 1: Window Master Switch (C1)
G01515954Courtesy of GENERAL MOTORS CORP.
