Installation Procedure

Align the front floor console to the floor.
Connect the required electrical connectors.

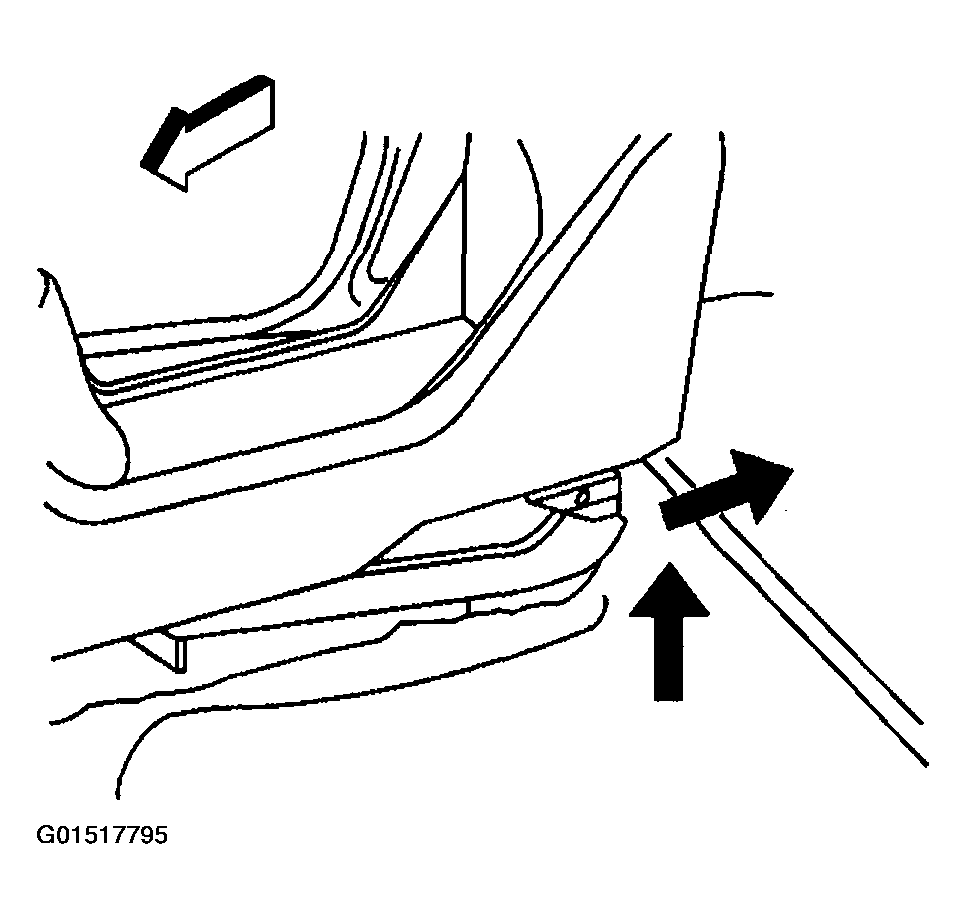

Fig 1: Aligning Front Floor Console To Floor
Courtesy of GENERAL MOTORS CORP.
Install the nuts to the front of the front floor console.
Tighten

Tighten the nuts to 6 N.m (53 lb in)

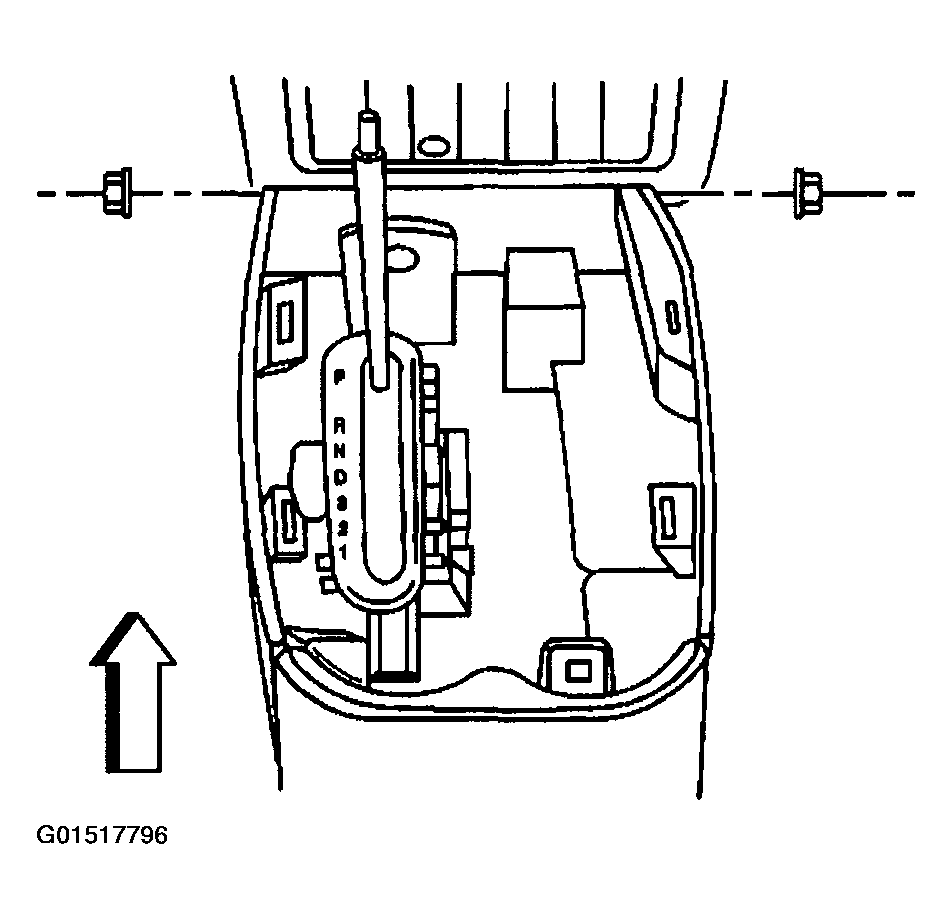

Fig 2: Installing Nuts To Front Of Front Floor Console
Courtesy of GENERAL MOTORS CORP.
Install the nuts to the rear of the front floor console
Tighten

Tighten the nuts to 6 N.m (53 lb in).
Install the front floor console trim plate. Refer to TRIM PLATE REPLACEMENT - FRONT FLOOR CONSOLE (AZTEK) or TRIM PLATE REPLACEMENT - FRONT FLOOR CONSOLE (RENDEZVOUS) .

Fig 3: Installing Nuts To Rear Of Front Floor Console
Courtesy of GENERAL MOTORS CORP.
