Removal Procedure

  1. Use a flat-bladed tool to press down and release the clip at the top of the Driver Information Center Switch.

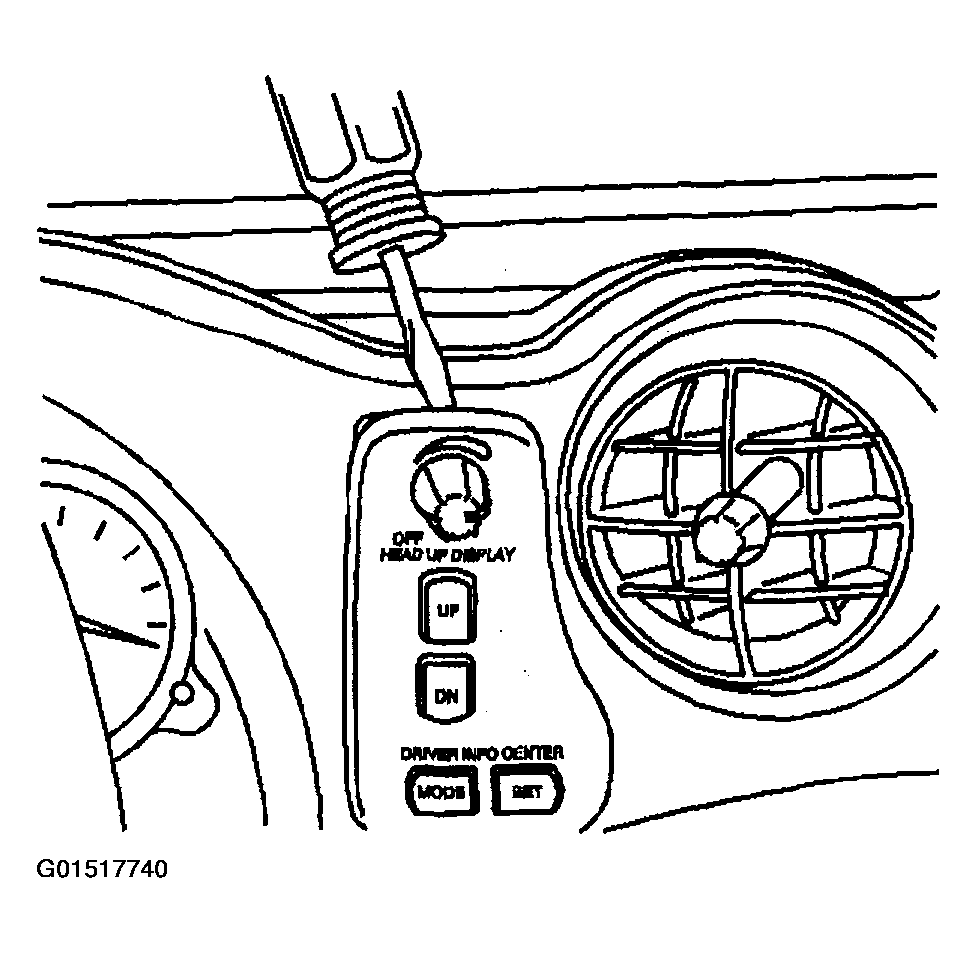

    Fig 1: Releasing Clip At Top Of Driver Information Center Switch
    G01517740Courtesy of GENERAL MOTORS CORP.
  2. Disconnect the electrical connectors.
  3. Remove the driver information center switch.

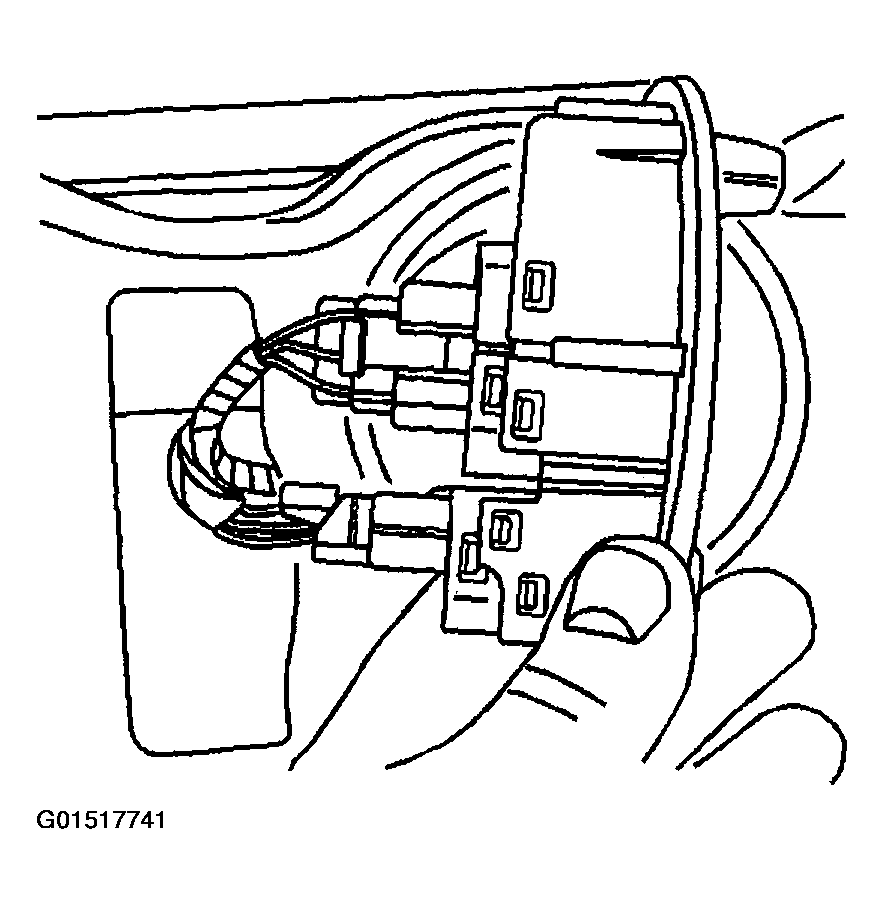

    Fig 2: Removing Driver Information Center Switch
    G01517741Courtesy of GENERAL MOTORS CORP.
