Installation Procedure

  1. Install the heads up display module.
  2. Install the bolts that secure the heads up display module to the IP.

    Tighten

    Tighten the bolts to 2 N.m (18 lb in).

  3. Connect the electrical connectors.
  4. Install the IP upper trim pad. Refer to TRIM PAD REPLACEMENT - INSTRUMENT PANEL (I/P) UPPER (AZTEK)  or TRIM PAD REPLACEMENT - INSTRUMENT PANEL (I/P) UPPER (RENDEZVOUS)  .

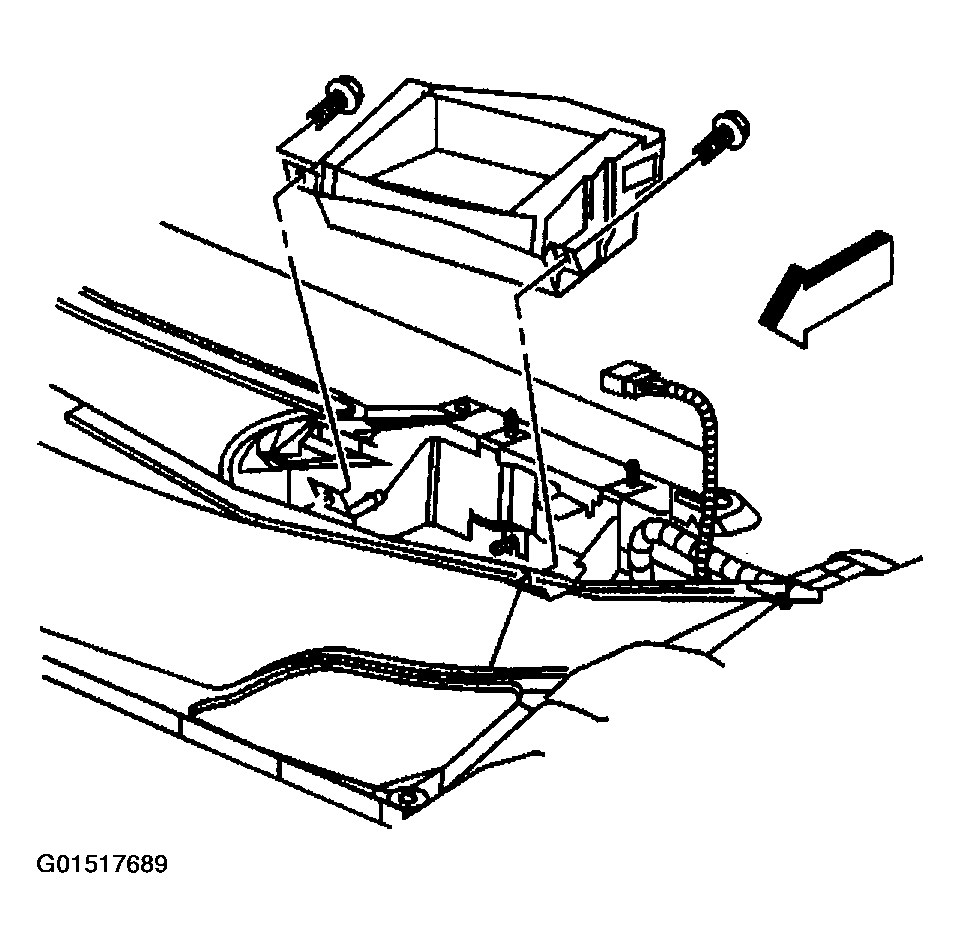

    Fig 1: Installing Heads Up Display Module
    G01517689Courtesy of GENERAL MOTORS CORP.
