Installation Procedure
- Align the instrument panel to the vehicle.
- Reposition the I/P wiring harness.
- Install the I/P mounting bolts at the cluster pocket.
Tighten
Tighten the mounting bolts to 5.0 N.m (44 lb in).

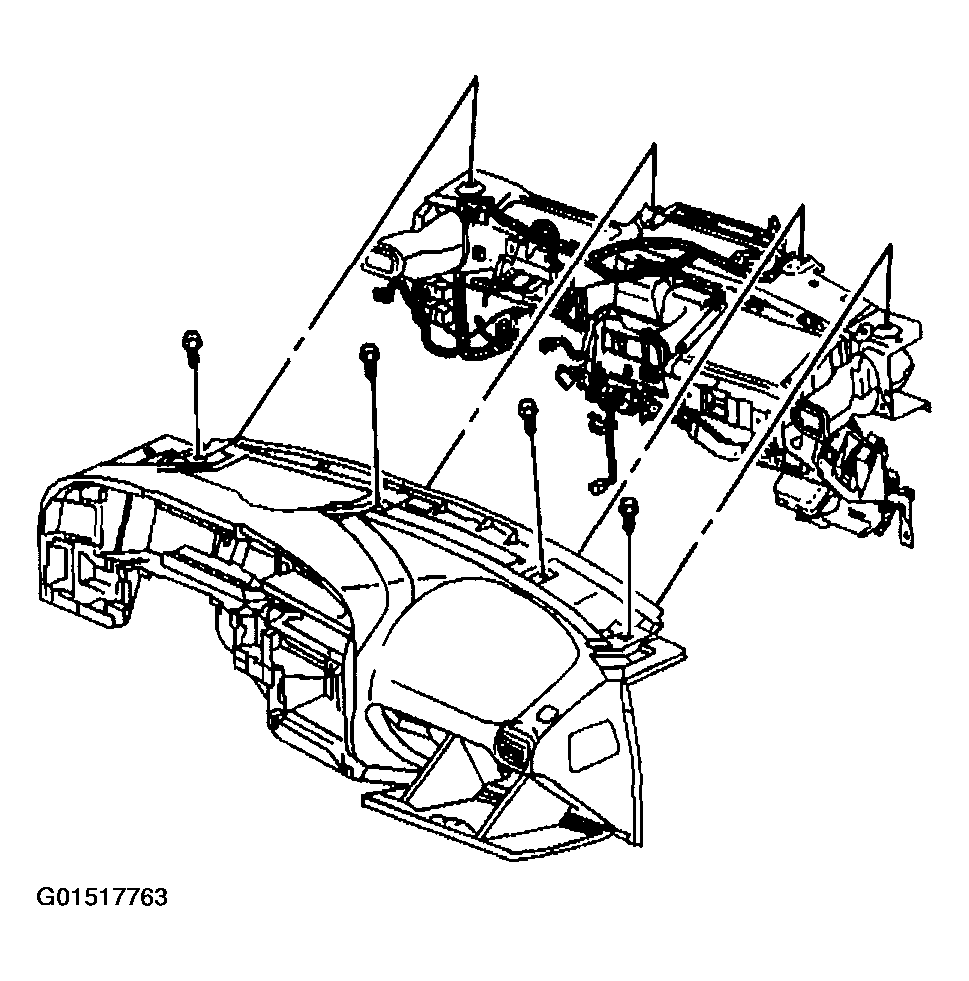

- Install the I/P mounting bolts at the windshield.
Tighten
Tighten the mounting bolts to 5.0 N.m (18 lb in).

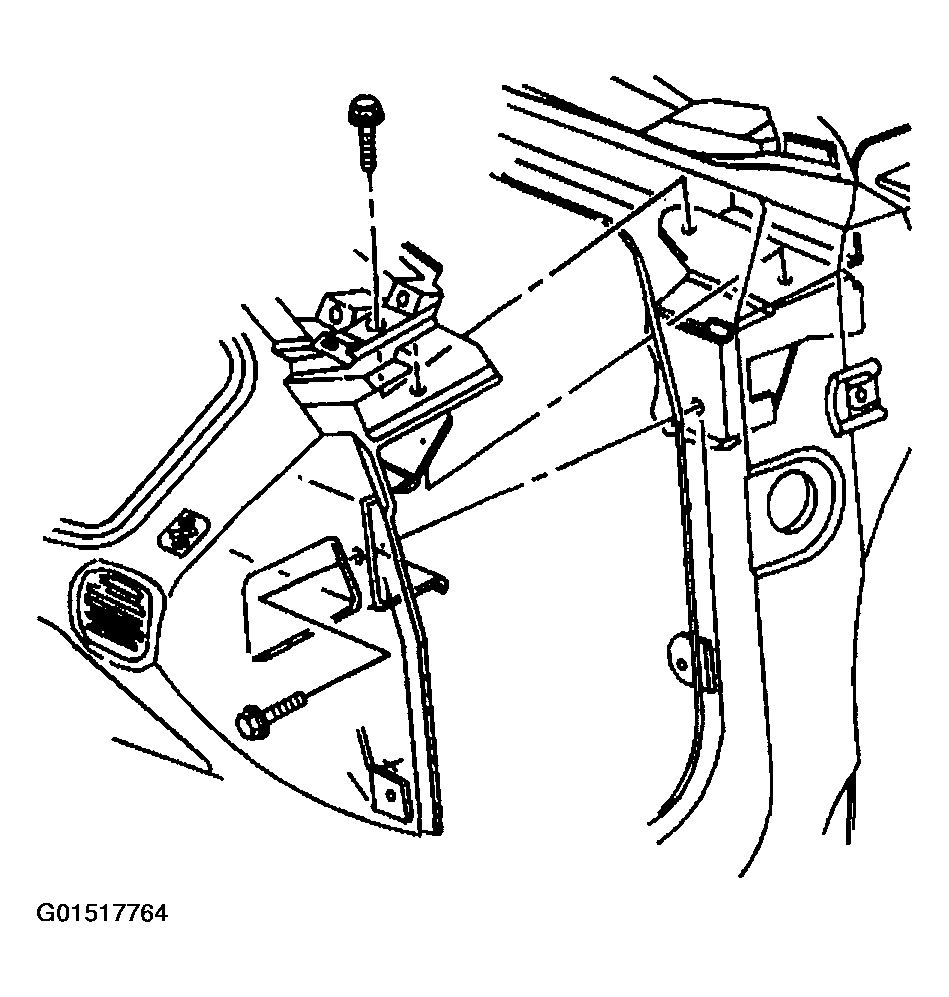

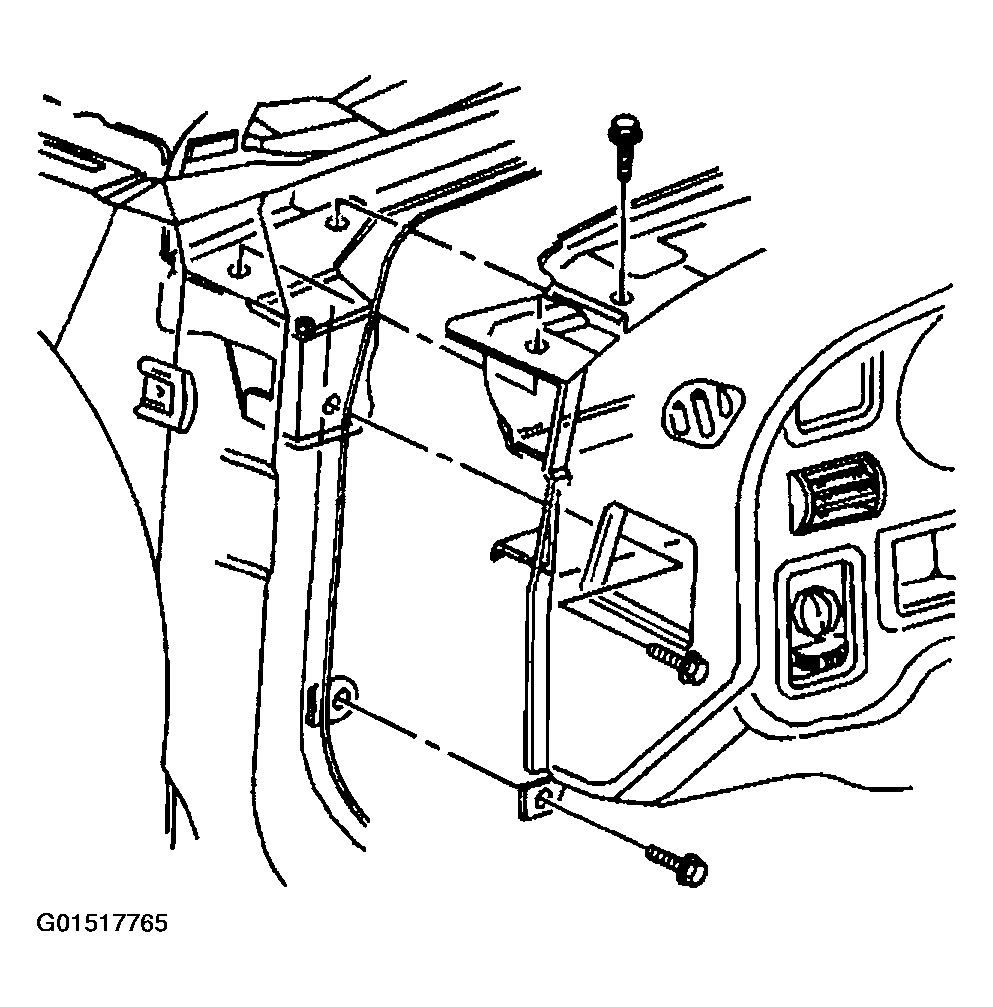

- Install the I/P mounting bolts to the compartment.
Tighten
Tighten the mounting bolts to 2 N.m (18 lb in)
- Install the I/P compartment lamp switch. Refer to INSTRUMENT PANEL (I/P) COMPARTMENT LAMP SWITCH REPLACEMENT .
- Install the I/P compartment. Refer to COMPARTMENT REPLACEMENT - INSTRUMENT PANEL (I/P) .
- Install the I/P cluster. Refer to INSTRUMENT PANEL CLUSTER (IPC) REPLACEMENT .
- Install the heater A/C control. Refer to HVAC CONTROL MODULE REPLACEMENT (BUICK) or HVAC CONTROL MODULE REPLACEMENT (PONTIAC) .
- Install the radio. Refer to RADIO REPLACEMENT .
- Install the I/P cluster trim plate bezel. Refer to TRIM PLATE BEZEL REPLACEMENT - INSTRUMENT PANEL (I/P) CLUSTER (AZTEK) or TRIM PLATE BEZEL REPLACEMENT - INSTRUMENT PANEL (I/P) CLUSTER (RENDEZVOUS) .
- Install the I/P accessory trim plate. Refer to TRIM PLATE REPLACEMENT - INSTRUMENT PANEL (I/P) ACCESSORY (AZTEK) .
- Install the hood release handle. Refer to HOOD LATCH RELEASE HANDLE REPLACEMENT .

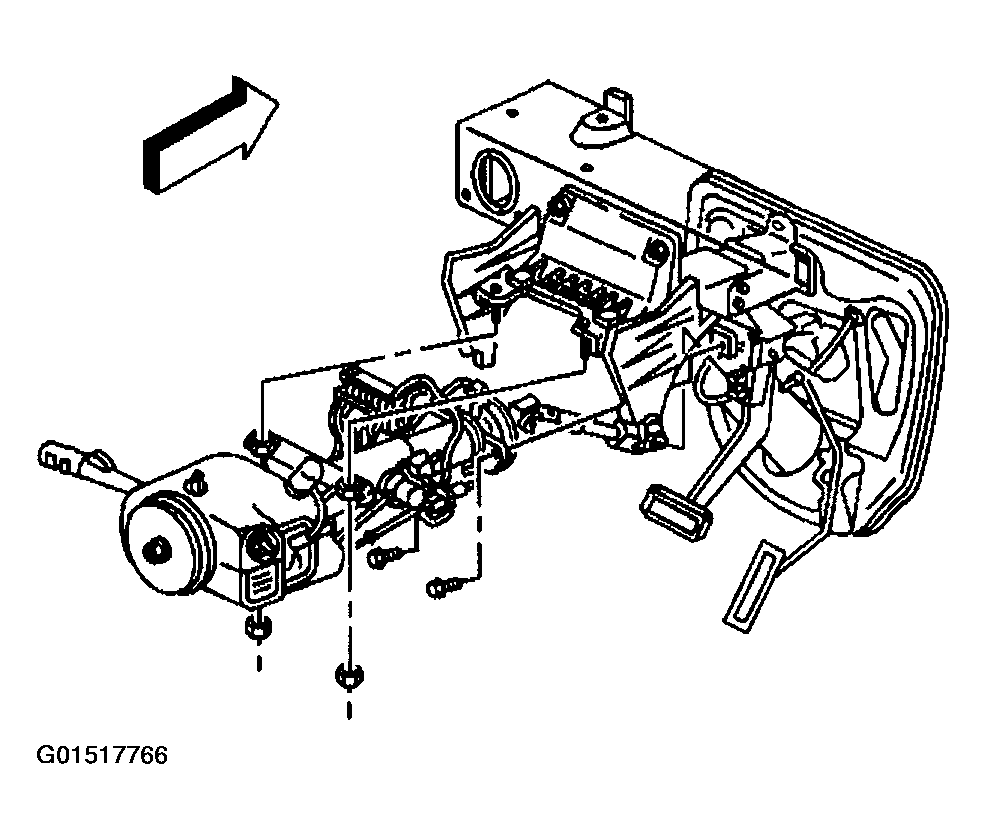

- Raise the steering column.
- Install the nuts to the upper steering column.
Tighten
Tighten the nuts to 25 N.m (18 lb ft).
- Install the bolts to the lower steering column.
Tighten
Tighten the bolts to 25 N.m (18 lb ft).
- Install the knee bolster panel. Refer to KNEE BOLSTER REPLACEMENT .
- Install the front floor console. Refer to CONSOLE REPLACEMENT - FRONT FLOOR (AZTEK) or CONSOLE REPLACEMENT - FRONT FLOOR (RENDEZVOUS) .
- Install the I/P upper trim panel. Refer to TRIM PAD REPLACEMENT - INSTRUMENT PANEL (I/P) UPPER (AZTEK) or TRIM PAD REPLACEMENT - INSTRUMENT PANEL (I/P) UPPER (RENDEZVOUS) .
- Install the windshield side upper garnish moldings. Refer to GARNISH MOLDING REPLACEMENT -- WINDSHIELD PILLAR .
- Install the I/P insulators. Refer to CLOSEOUT/INSULATOR PANEL REPLACEMENT - RIGHT and to CLOSEOUT/INSULATOR PANEL REPLACEMENT - LEFT .
- Install the data link connector. Refer to DATA LINK CONNECTOR REPLACEMENT .
- Install the I/P access hole covers. Refer to INSTRUMENT PANEL (I/P) OUTER TRIM COVER REPLACEMENT .
- Enable the SIR system. Refer to DISABLING & ACTIVATING AIR BAG SYSTEM .
- Connect the battery negative cable.
