Removal Procedure

Remove the right and/or left headlamp. Refer to HEADLAMP ASSEMBLY OR HEADLAMP BULB REPLACEMENT (AZTEK) or HEADLAMP ASSEMBLY OR HEADLAMP BULB REPLACEMENT (RENDEZVOUS) .
Disconnect the horn electrical connector.

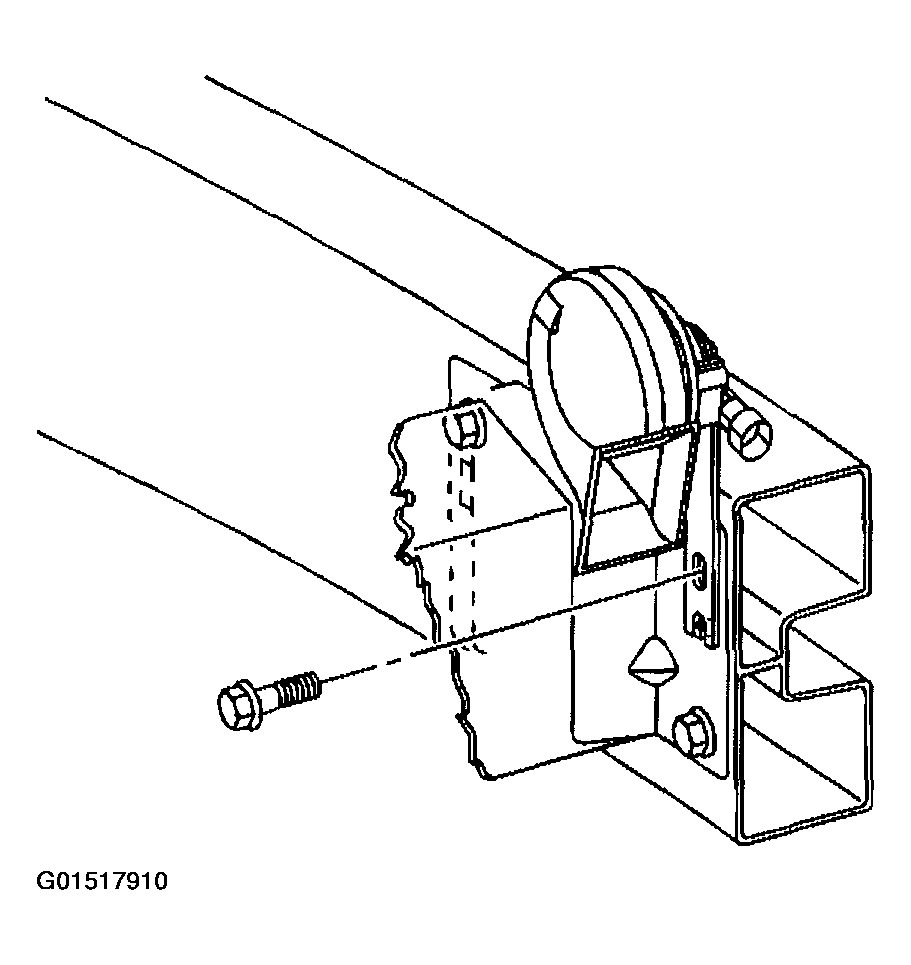

Fig 1: Horn Removal Procedure (1 Of 3)
Courtesy of GENERAL MOTORS CORP.
Remove the horn bracket bolt.

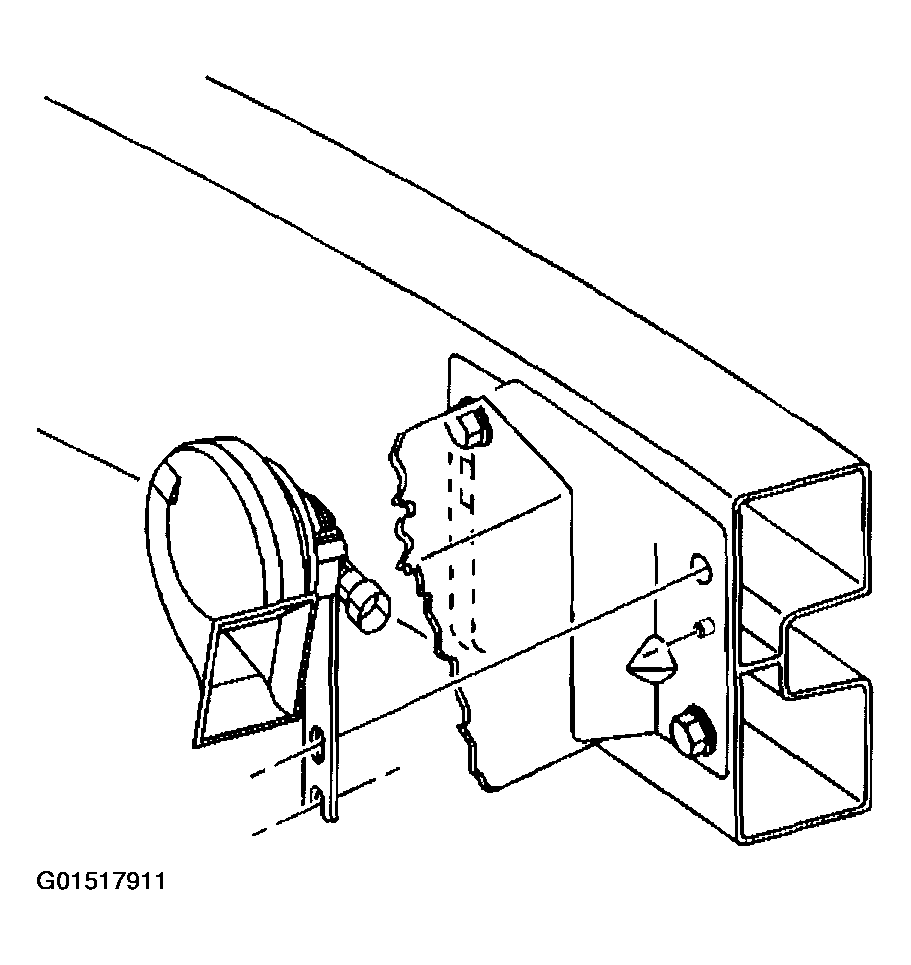

Fig 2: Horn Removal Procedure (2 Of 3)
Courtesy of GENERAL MOTORS CORP.
Remove the horn from the front bumper impact bar.

Fig 3: Horn Removal Procedure (3 Of 3)
Courtesy of GENERAL MOTORS CORP.
