Removal Procedure

  1. Raise and support the vehicle.
  2. Remove the catalytic converter. Refer to CATALYTIC CONVERTER REPLACEMENT  .
  3. Use a drill to remove the catalytic converter heat shield rivets.
  4. Remove the catalytic converter heat shield.

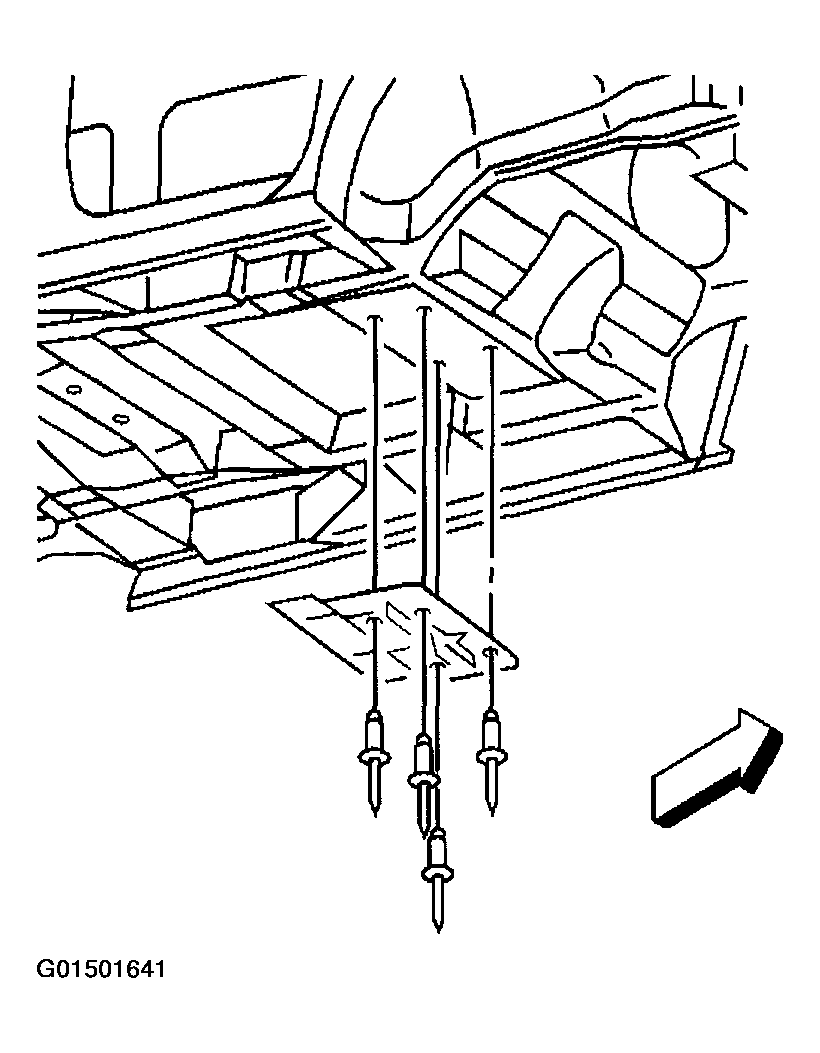

    Fig 1: Removing Catalytic Converter Heat Shield
    G01501641Courtesy of GENERAL MOTORS CORP.
