Powertrain Control Module: Notes

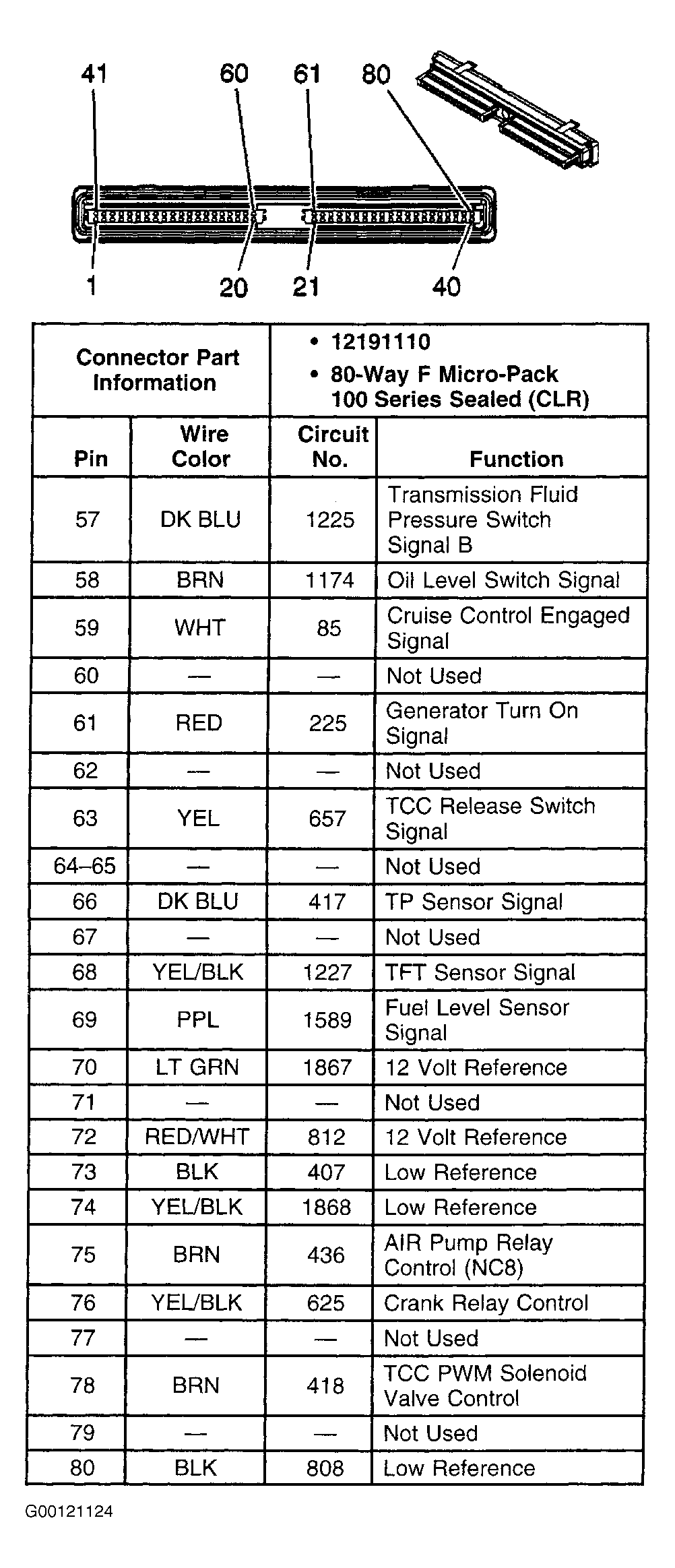

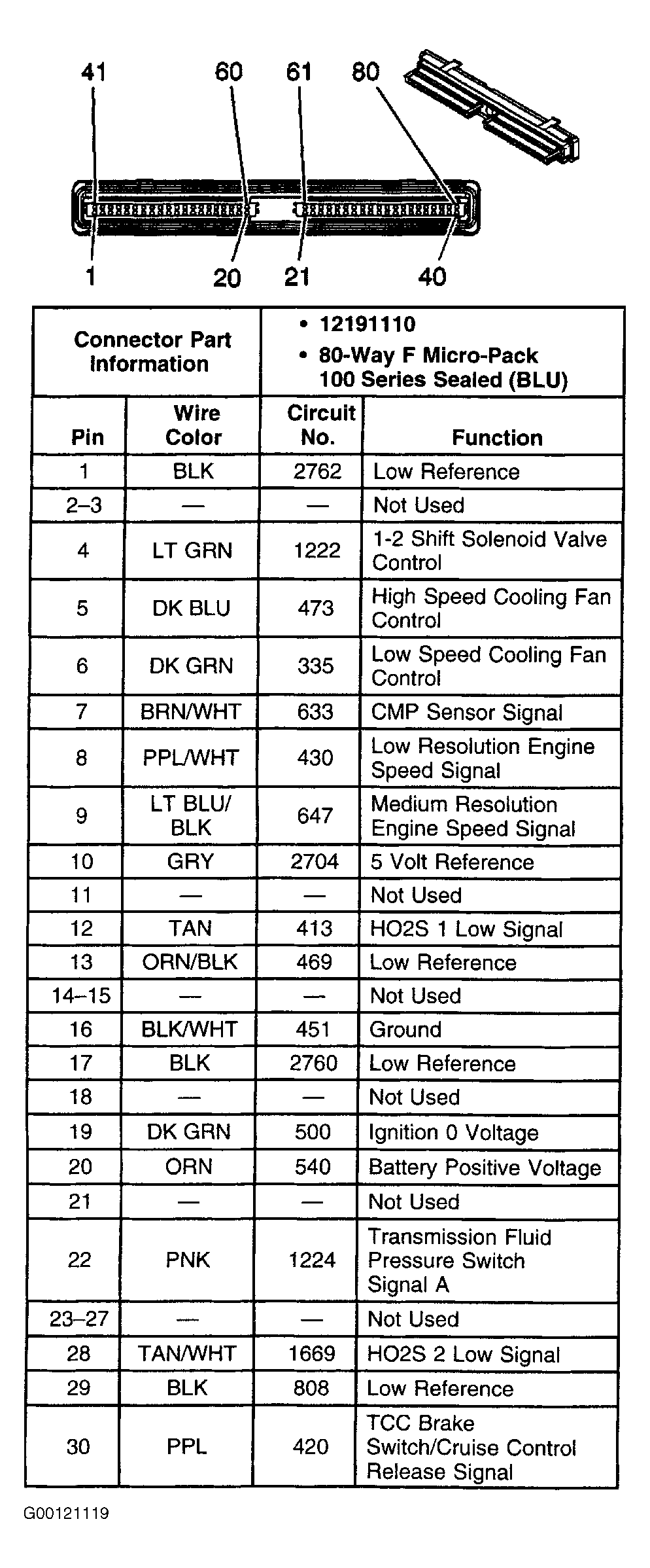

NOTE: To identify circuits referenced in the following ground and power tests, see WIRING DIAGRAMS  or Figure -Figure .
