Component Locations
WARNING: This page is about a different car, the 2002 Buick Regal and 2002 Buick Century. However, it is still accessible from the selected car via links, so may be relevant.
COMPONENT LOCATIONS
| Component | Location |
|---|---|
| A/C Compressor | Left Lower Side Of Engine |
| A/C Pressure Sensor | On Accumulator |
| Accumulator | Right Side Frame Rail |

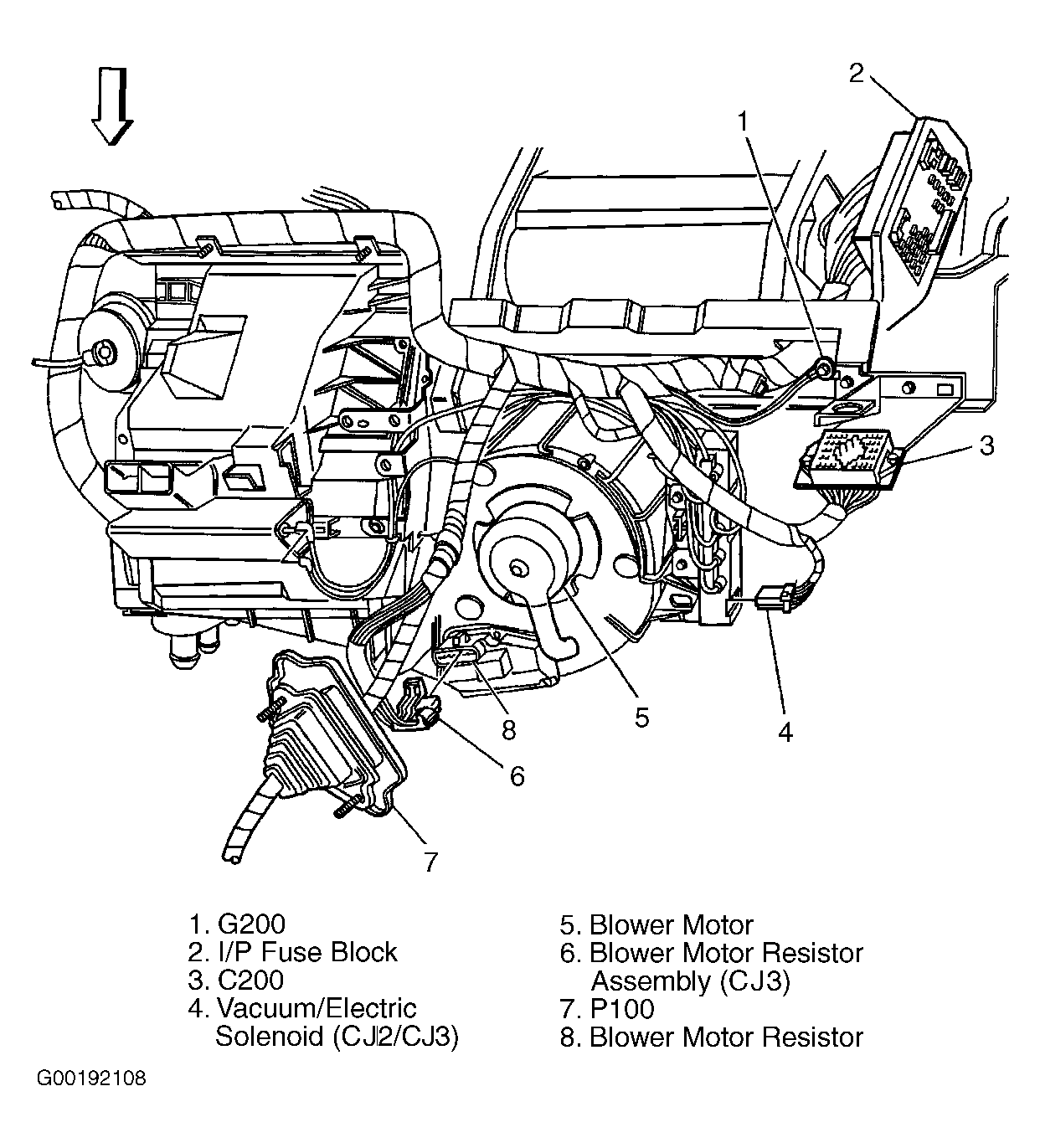

| Blower Motor | In HVAC Module |
| Blower Motor Resistor | In HVAC Module, Next To Blower Motor |
| Compressor Relay | In Underhood Relay Center |
| HVAC Control Module | Center Of Instrument Panel |
| Orifice Tube | In Evaporator Inlet Pipe |
| Passenger Compartment Air Filter | Located In Intake Plenum, Near Right Wiper Blade |
| Vacuum Reservoir Tank | Behind Instrument Panel, On HVAC Module |
