Zone 1

WARNING: This page is about a different car, the 2003 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.
  1. Turn steering wheel to place vehicle wheels in straight-ahead position. Turn ignition off and remove key. Remove SIR fuse (10-amp) from fuse block, located in junction block in center console. See Fig 1.
  2. Remove Connector Position Assurance (CPA) clip from passenger-side front end discriminating sensor connector. See Fig 2. Disconnect connector. Remove CPA clip from driver-side front end discriminating sensor connector and disconnect connector.

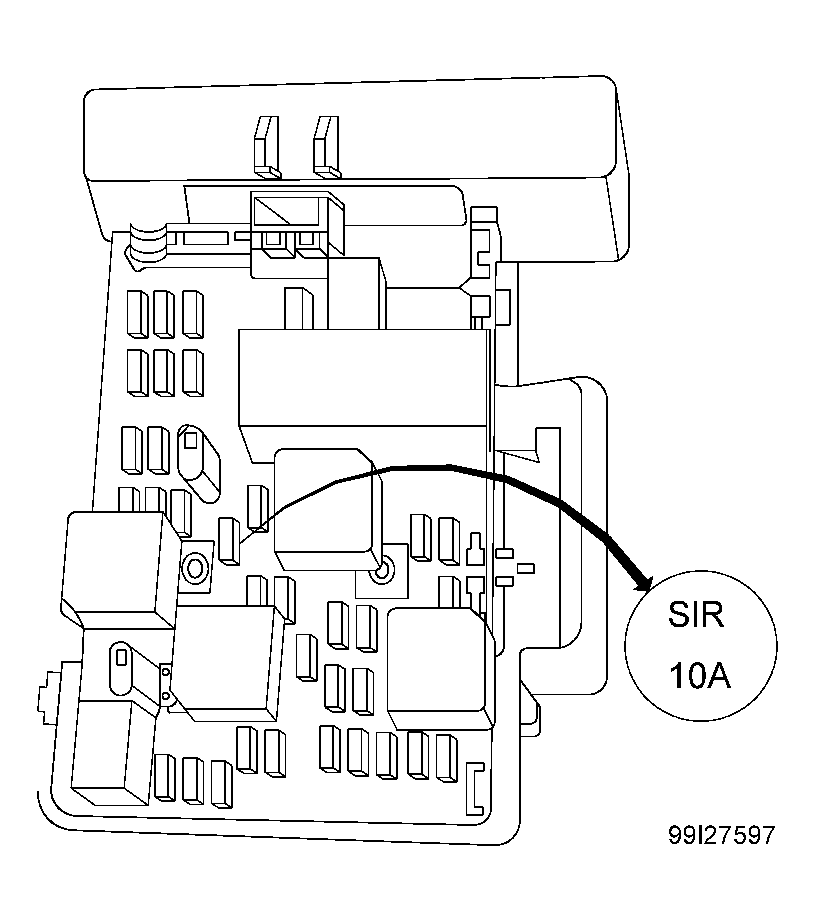

Fig 1: Identifying SIR Fuse Location
G99I27597Courtesy of GENERAL MOTORS CORP.

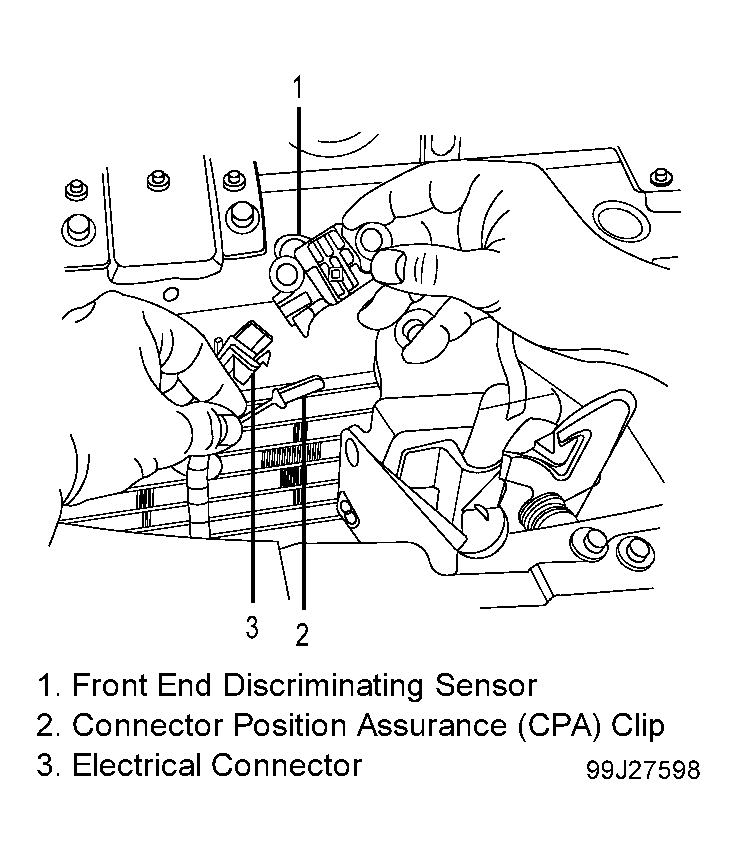

Fig 2: Identifying Front End Discriminating Sensor
G99J27598Courtesy of GENERAL MOTORS CORP.
