Zone 9

WARNING: This page is about a different car, the 2003 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.
  1. Turn steering wheel to place front wheels in straight-ahead position. Turn ignition off and remove key.
  2. Open glove box to access fuse block. Remove SIR fuse from fuse block. Remove driver-side knee bolster. Remove Connector Position Assurance (CPA) clip from driver-side air bag module Yellow 2-pin connector, located at base of steering column and disconnect connector. See Figure. Remove CPA from passenger-side air bag module connector, located to right of steering column and disconnect connector. See Figure.
  3. Remove CPA clip from Sensing and Diagnostic Module (SDM), located under passenger-side front seat. See Fig 1. Disconnect SDM connector.

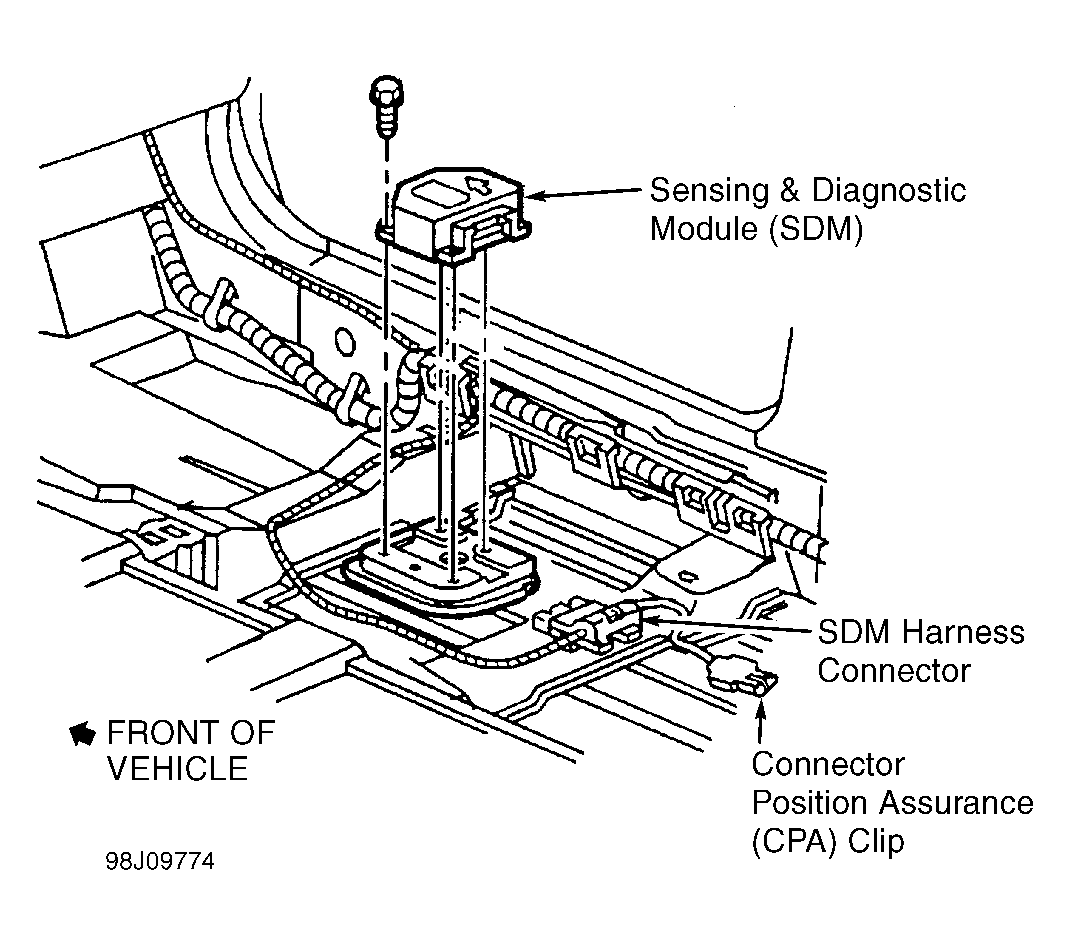

Fig 1: Identifying Sensing & Diagnostic Module (SDM)
G98J09774Courtesy of GENERAL MOTORS CORP.
