Installation Procedure

WARNING: This page is about a different car, the 2002 GMC Savana Special, 2002 GMC Savana Camper Special, 2002 GMC Savana, and 2002 Chevrolet Chevy Express. However, it is still accessible from the selected car via links, so may be relevant.

Install the lamp assembly to the bumper.

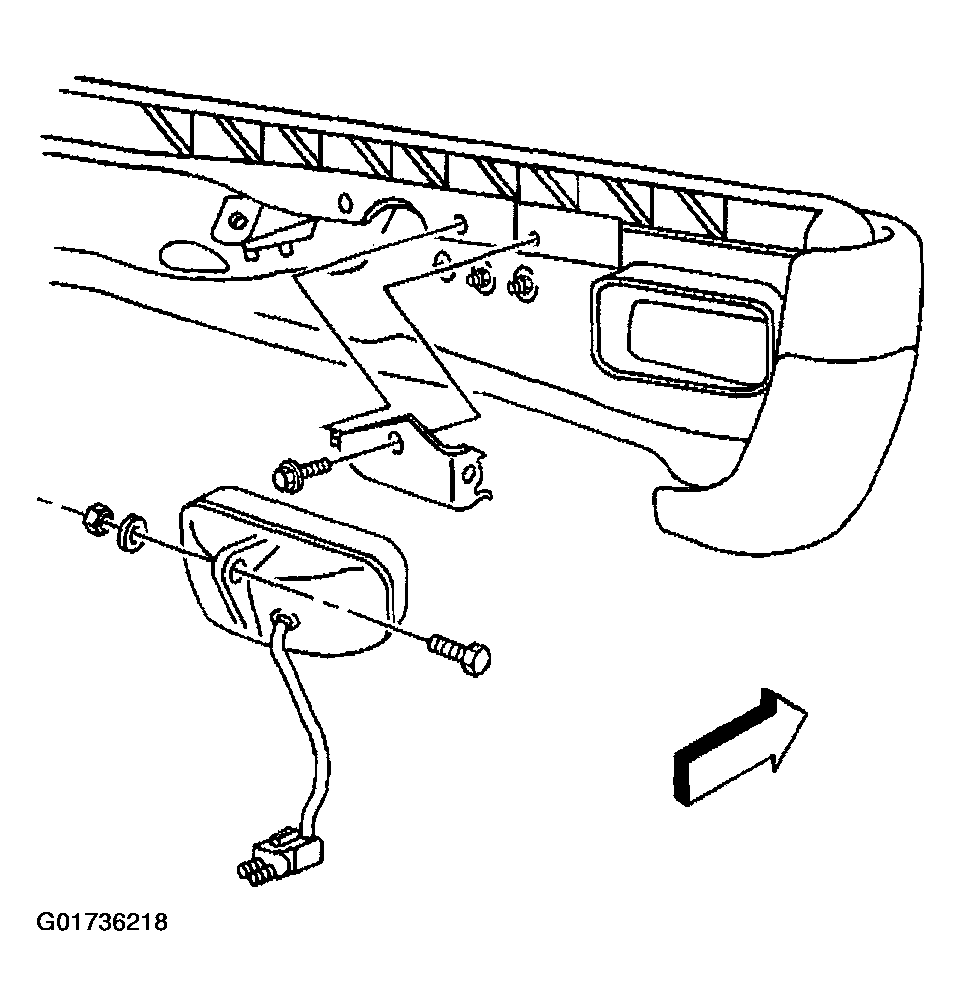

Fig 1: Installing Lamp Assembly To Bumper
Courtesy of GENERAL MOTORS CORP.
Install the nut to retain the lamp assembly to the bracket.
Tighten the nut until securely fastened but not stripped.
Connect the electrical connector to the lamp assembly.

Fig 2: Installing Nut & Connecting Electrical Connector
Courtesy of GENERAL MOTORS CORP.
