Installation Procedure

WARNING: This page is about a different car, the 2002 GMC Savana Special, 2002 GMC Savana Camper Special, 2002 GMC Savana, and 2002 Chevrolet Chevy Express. However, it is still accessible from the selected car via links, so may be relevant.

Install the following components to the instrument panel extension:
- The rear fog lamp switch
- The bezel
Apply pressure to the rear fog lamp switch in order to engage the tabs on the switch to the bezel.
Install the rear fog lamp switch.

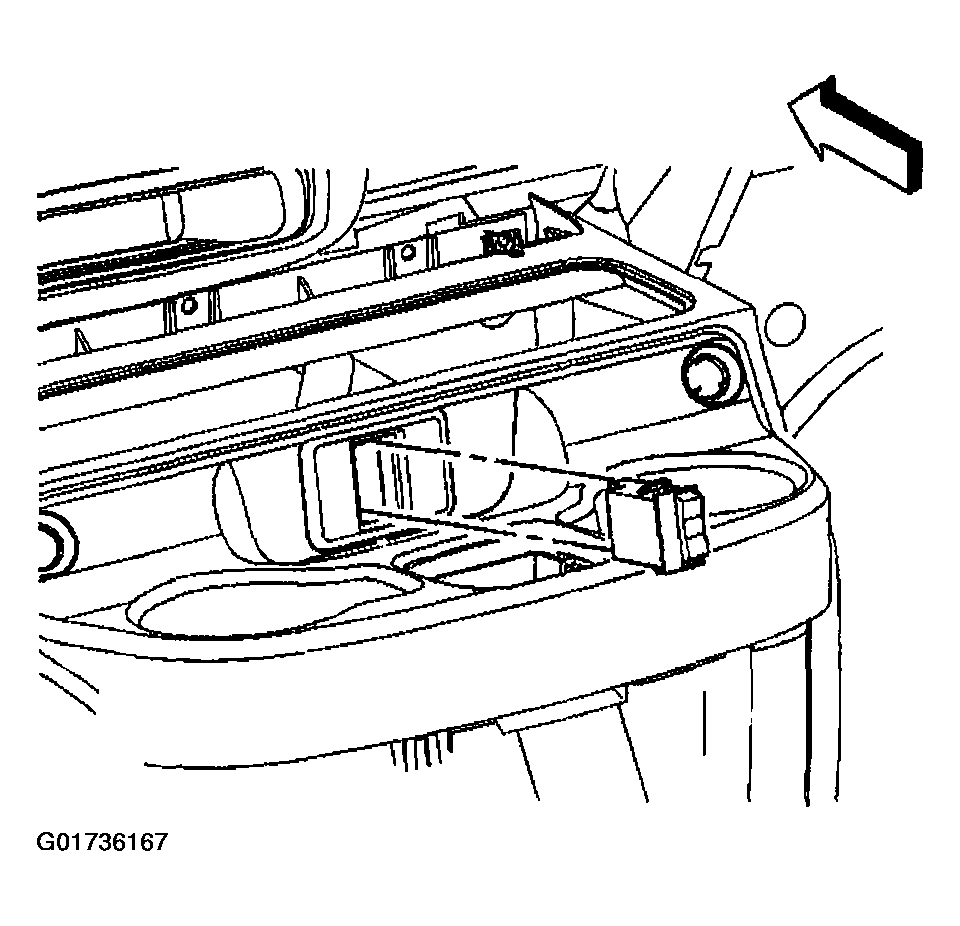

Fig 1: Installing Rear Fog Lamp Switch
Courtesy of GENERAL MOTORS CORP.
Install the electrical connector to the rear fog lamp switch.
Install the bezel to the lower panel extension.

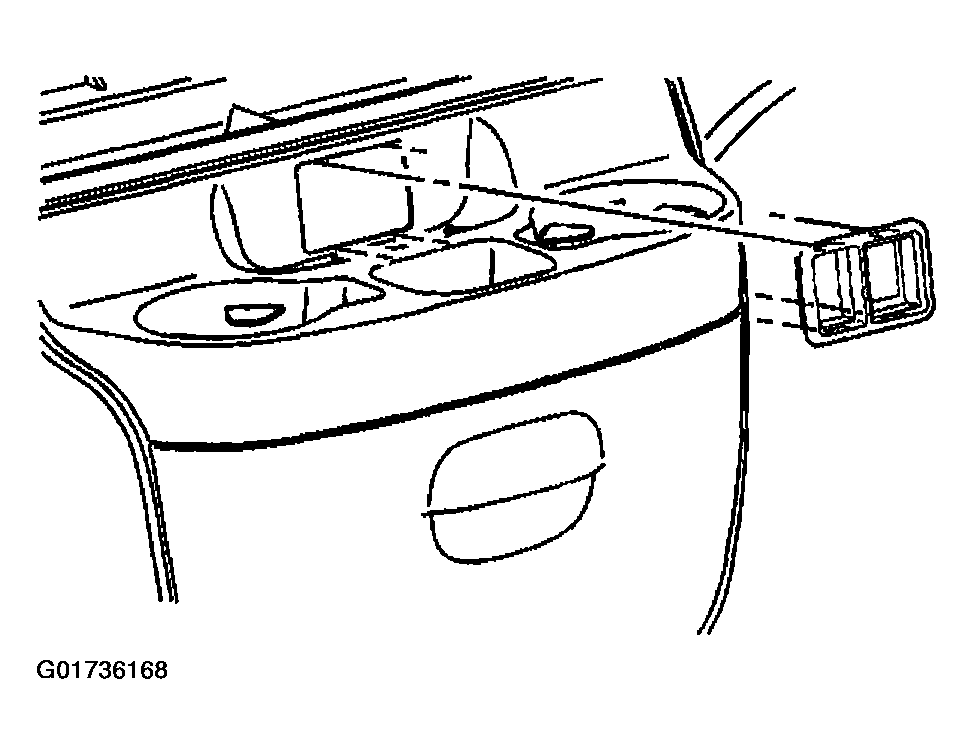

Fig 2: Installing Electrical Connector & Bezel
Courtesy of GENERAL MOTORS CORP.
