Removal Procedure

WARNING: This page is about a different car, the 2002 GMC Savana Special, 2002 GMC Savana Camper Special, 2002 GMC Savana, and 2002 Chevrolet Chevy Express. However, it is still accessible from the selected car via links, so may be relevant.

Remove the screws (3) that retain the center high mounted stop lamp lens to the center high mounted stop lamp applique.
Remove the center high mounted stop lamp lens (2) from the center high mounted stop lamp applique.
Disconnect the bulb socket (1) from the center high mounted stop lamp lens.
Remove the bulb (1) from the socket.

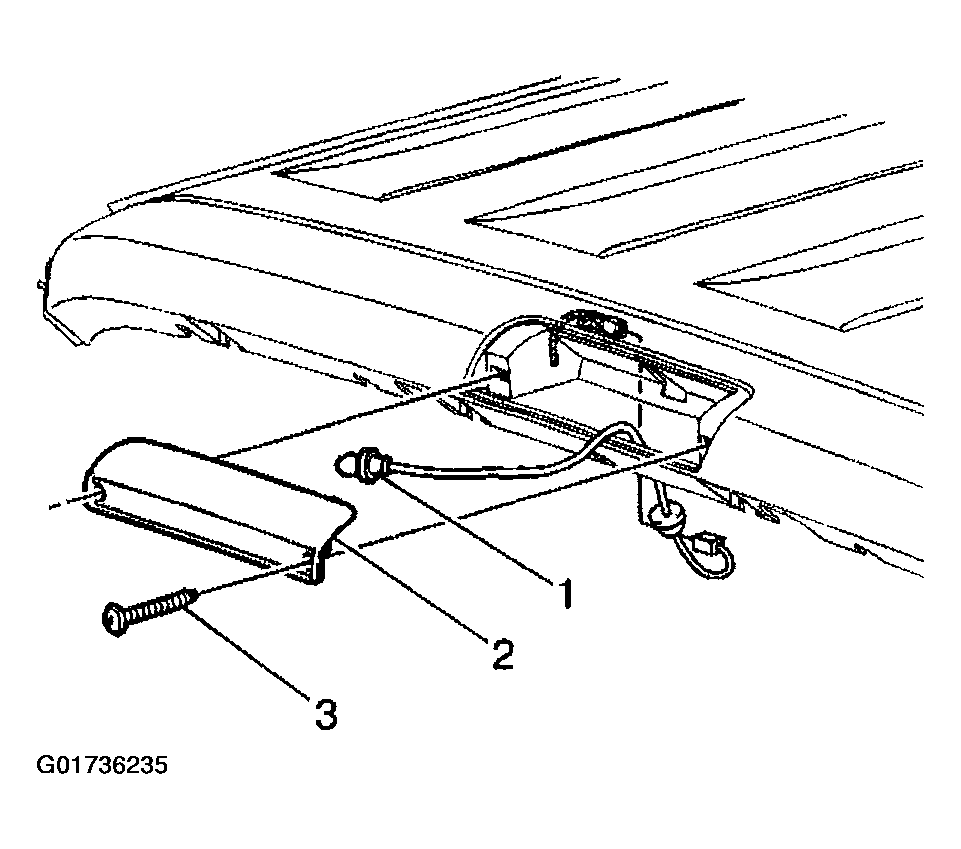

Fig 1: Removing High Mounted Stop Lamp Components
Courtesy of GENERAL MOTORS CORP.
