Installation Procedure

WARNING: This page is about a different car, the 2002 GMC Savana Special, 2002 GMC Savana Camper Special, 2002 GMC Savana, and 2002 Chevrolet Chevy Express. However, it is still accessible from the selected car via links, so may be relevant.

Install the bulb to the bulb socket (1).
Connect the bulb socket to the instrument cluster (2).
Lock the bulb socket into place by turning the bulb socket 1/4 turn to the right.
Install the instrument cluster assembly. Refer to INSTRUMENT PANEL CLUSTER (IPC) REPLACEMENT .

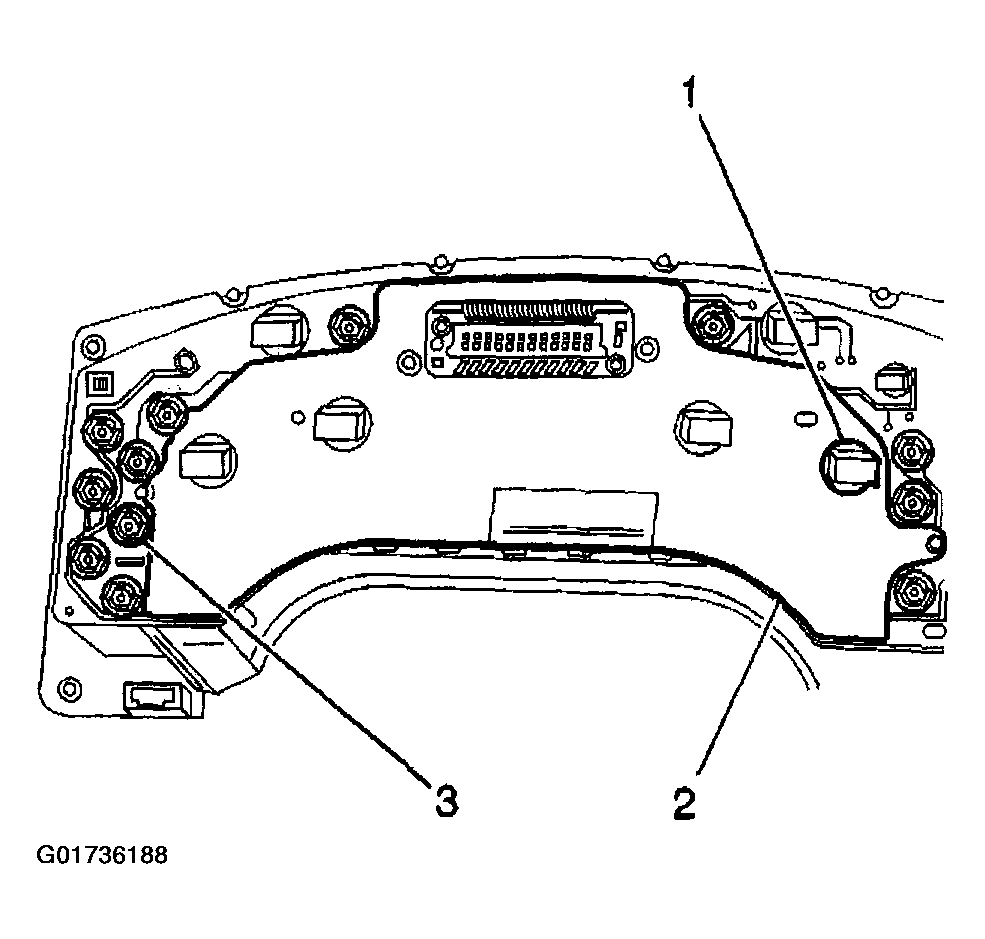

Fig 1: Installing & Connecting Bulb Socket
Courtesy of GENERAL MOTORS CORP.
