Installation Procedure

WARNING: This page is about a different car, the 2002 GMC Savana Special, 2002 GMC Savana Camper Special, 2002 GMC Savana, and 2002 Chevrolet Chevy Express. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the front headliner to the vehicle.
  2. Install the front headliner to the retaining clips at the rear edge of the headliner.
  3. Install the rear heater controls. Refer to MAIN HVAC CONTROL ASSEMBLY .
  4. Install the dome lamp. Refer to DOME LAMP REPLACEMENT (ALL EXCEPT LUXURY) or DOME LAMP REPLACEMENT (LUXURY Y91) .
  5. Install the front door upper pillar garnish molding. Refer to Garnish Molding Replacement - Upper Pillar .
  6. Install the front door opening upper frame garnish molding. Refer to Garnish Molding - Front Door Opening Upper Frame .
  7. Install the windshield garnish molding. Refer to Windshield Garnish Molding Replacement .
  8. If you remove the overhead console assembly, install the assembly. Refer to Overhead Console Replacement - Front (Luxury Y91) .
  9. Install the sunshades. Refer to Sunshade Replacement .

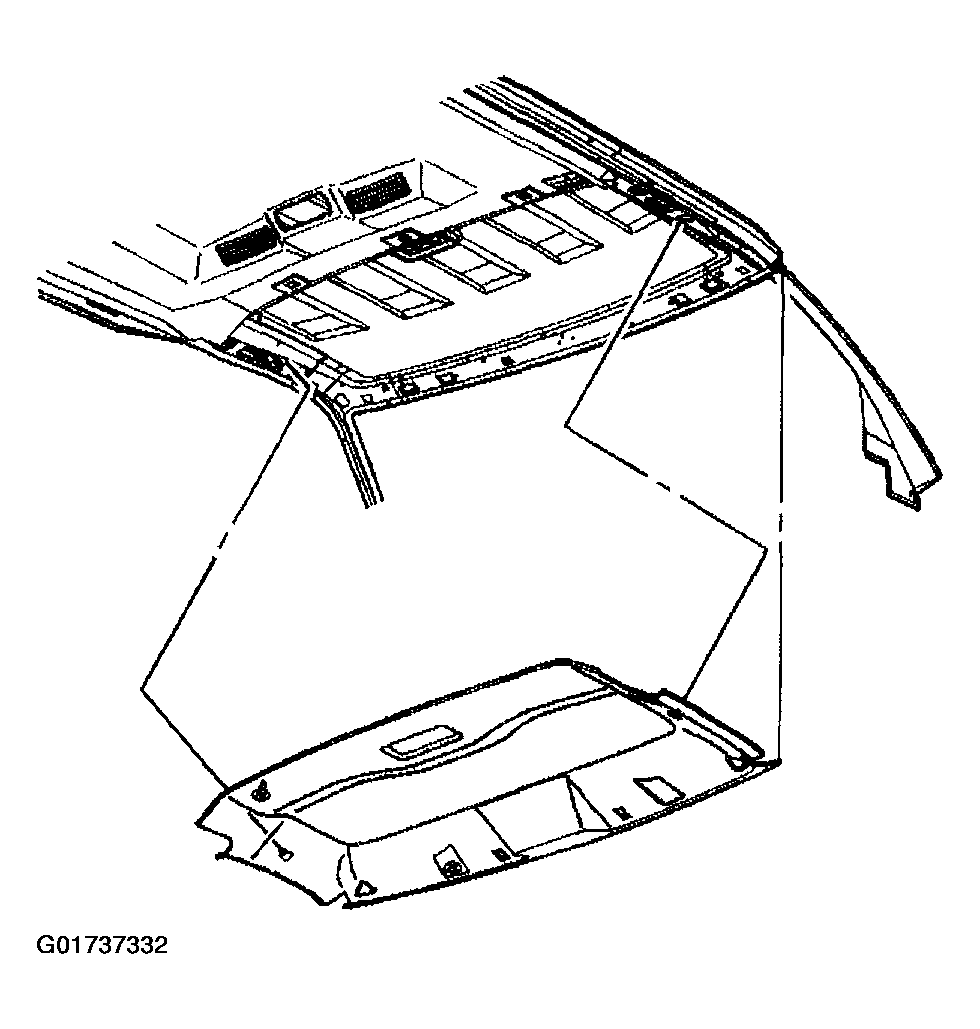

    Fig 1: Installing Front Headliner
    G01737332Courtesy of GENERAL MOTORS CORP.
