Removal Procedure

WARNING: This page is about a different car, the 2002 GMC Savana Special, 2002 GMC Savana Camper Special, 2002 GMC Savana, and 2002 Chevrolet Chevy Express. However, it is still accessible from the selected car via links, so may be relevant.

Unclip the sunshade from the support.

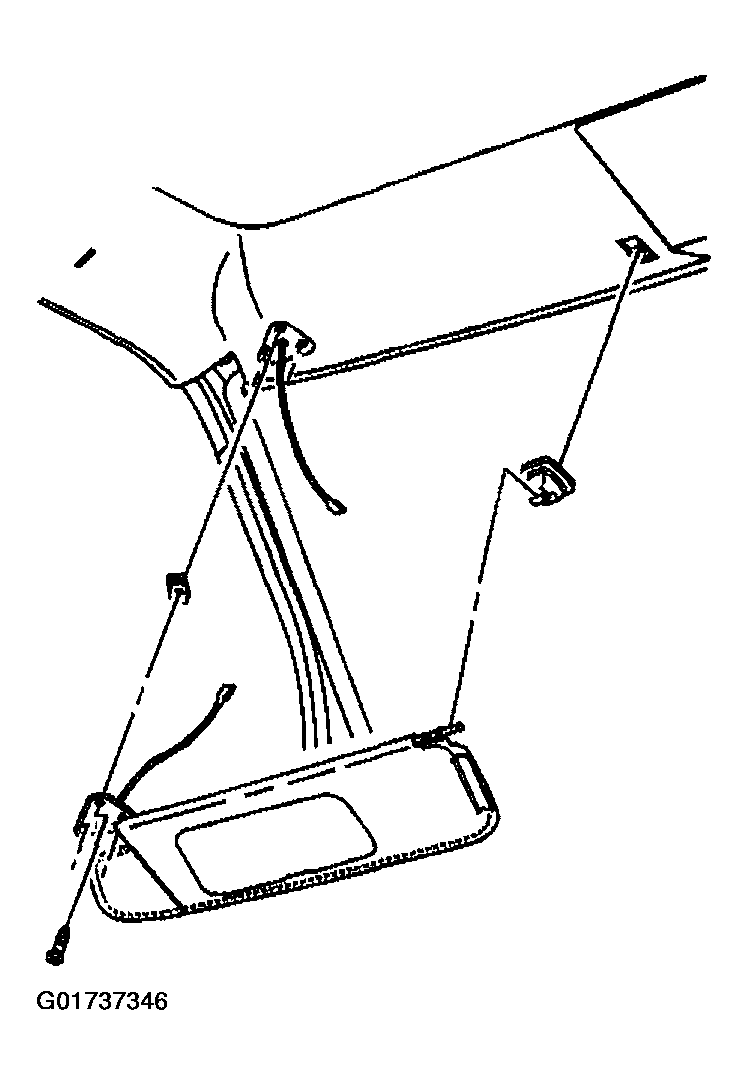

Fig 1: Removing & Installing Sunshade
Courtesy of GENERAL MOTORS CORP.
Remove the screws retaining the sunshade to the vehicle.
Disconnect the electrical connector, if equipped.
Remove the sunshade from the vehicle.

Fig 2: Removing & Installing Sunshade
Courtesy of GENERAL MOTORS CORP.
