Removal Procedure

WARNING: This page is about a different car, the 2002 GMC Savana Special, 2002 GMC Savana Camper Special, 2002 GMC Savana, and 2002 Chevrolet Chevy Express. However, it is still accessible from the selected car via links, so may be relevant.

Remove the radio and mounting bracket. Refer to Radio Replacement .
Remove the engine cover. Refer to ENGINE COVER REPLACEMENT .
Disconnect the antenna cable connector at the lower right of the instrument panel.
Remove the antenna cable (1) from the retaining clips on the instrument panel carrier.

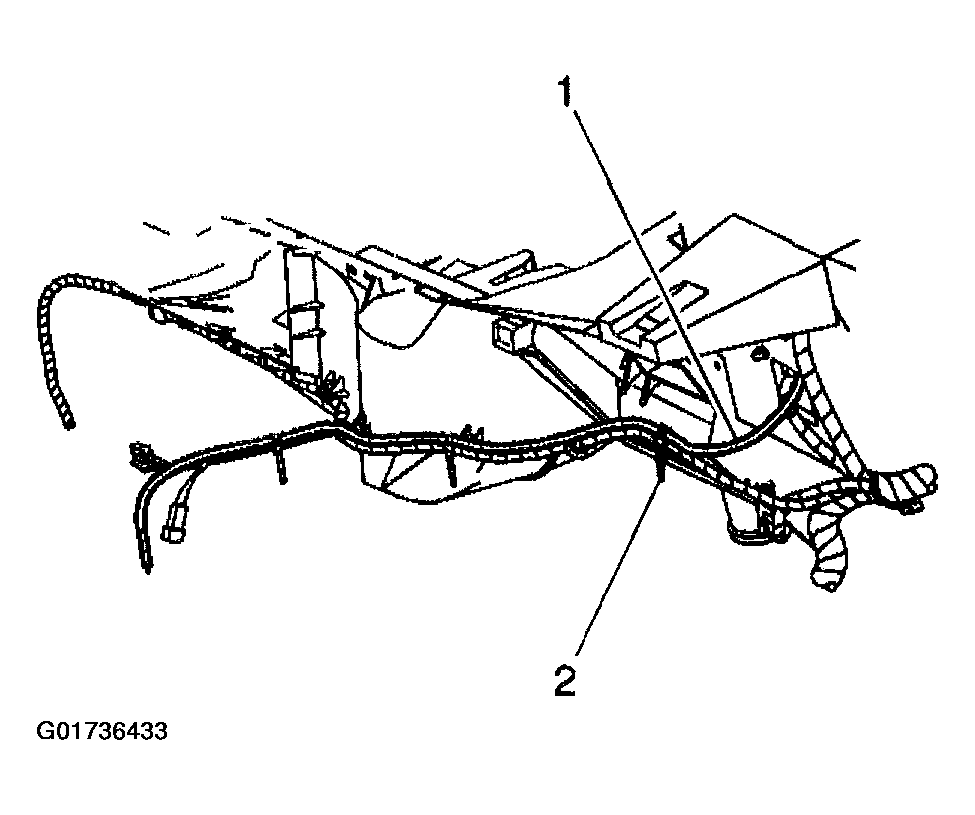

Fig 1: Removing Antenna Cable From Retaining Clips
Courtesy of GENERAL MOTORS CORP.
Remove the antenna cable (1) from the vehicle.

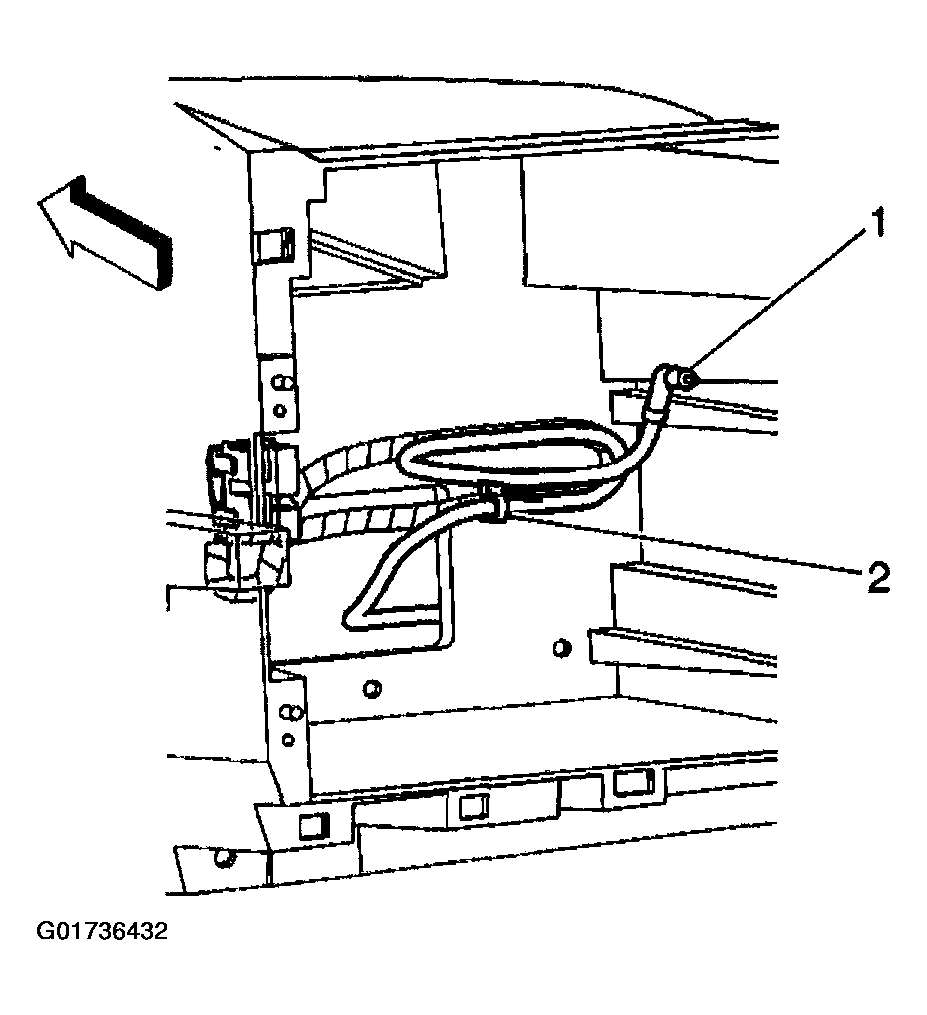

Fig 2: Removing Antenna Cable From Vehicle

Courtesy of GENERAL MOTORS CORP.
