Radio/Audio System Schematics

WARNING: This page is about a different car, the 2002 GMC Savana Special, 2002 GMC Savana Camper Special, 2002 GMC Savana, and 2002 Chevrolet Chevy Express. However, it is still accessible from the selected car via links, so may be relevant.

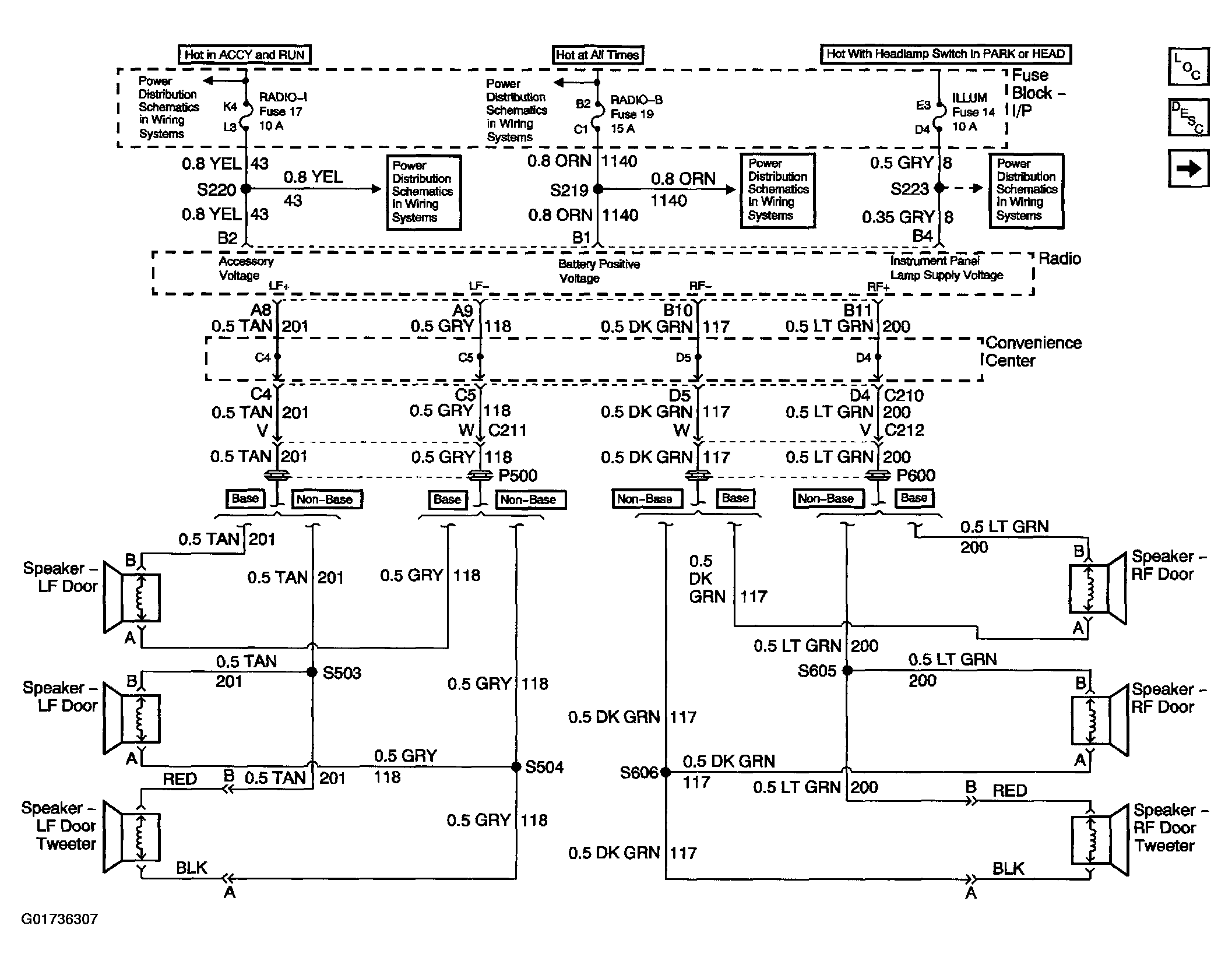

Fig 1: Radio/Audio System Schematics (PWR & Front Speakers)

G01736307

Courtesy of GENERAL MOTORS CORP.

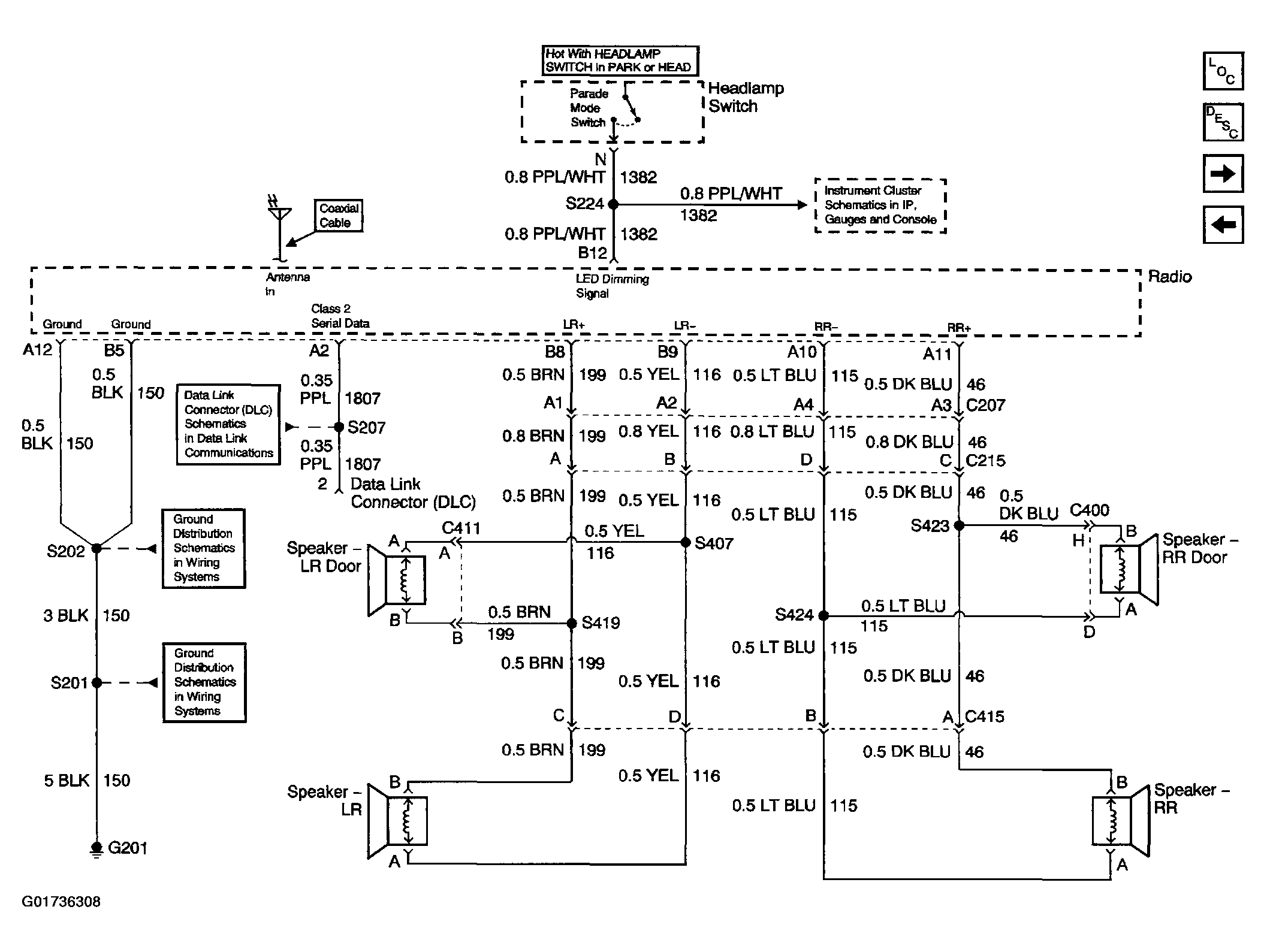

Fig 2: Radio/Audio System Schematics (Rear Speakers)

G01736308

Courtesy of GENERAL MOTORS CORP.

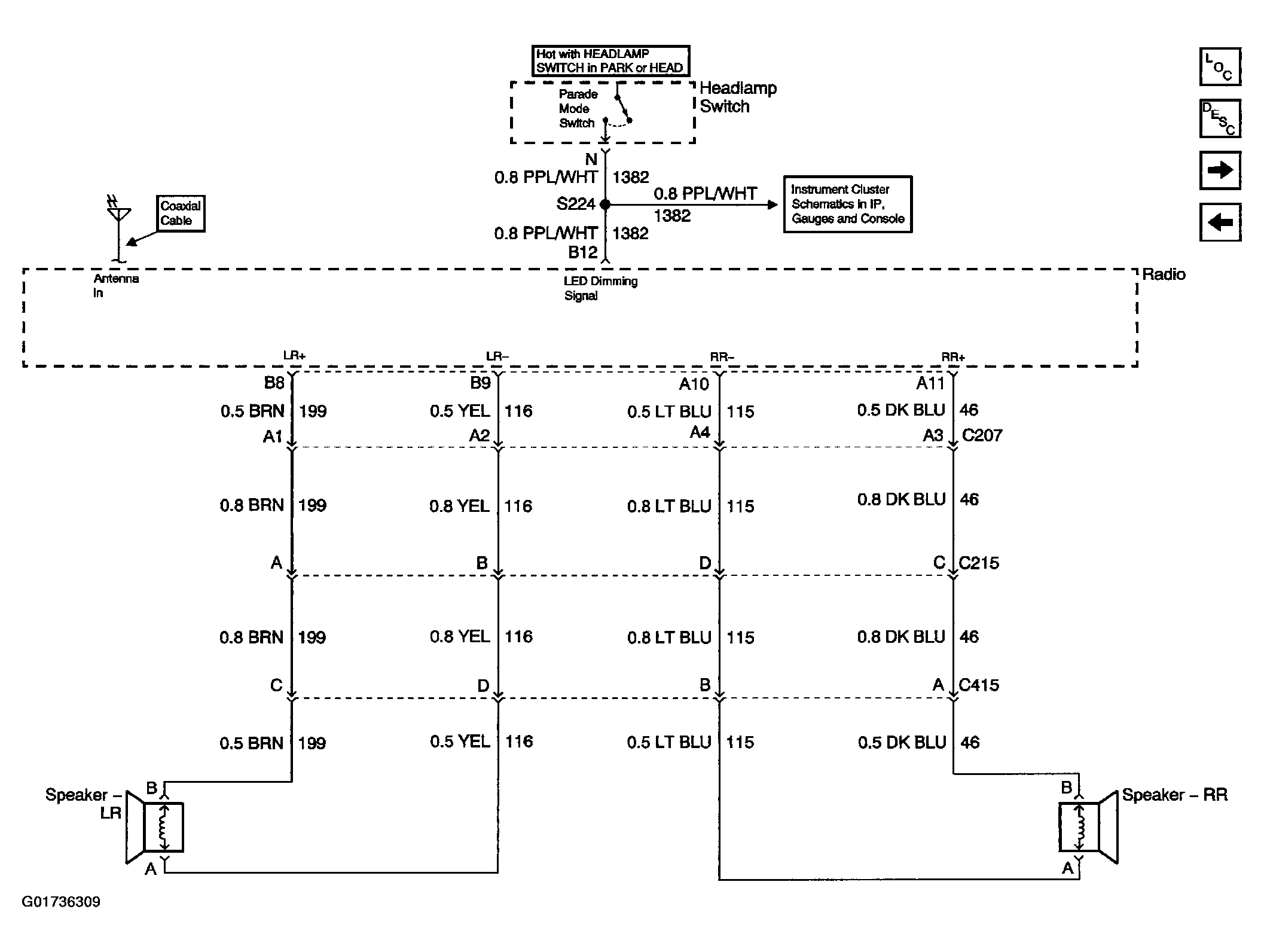

Fig 3: Radio/Audio System Schematics (Rear Speakers With Up fitter Provisions)

G01736309

Courtesy of GENERAL MOTORS CORP.

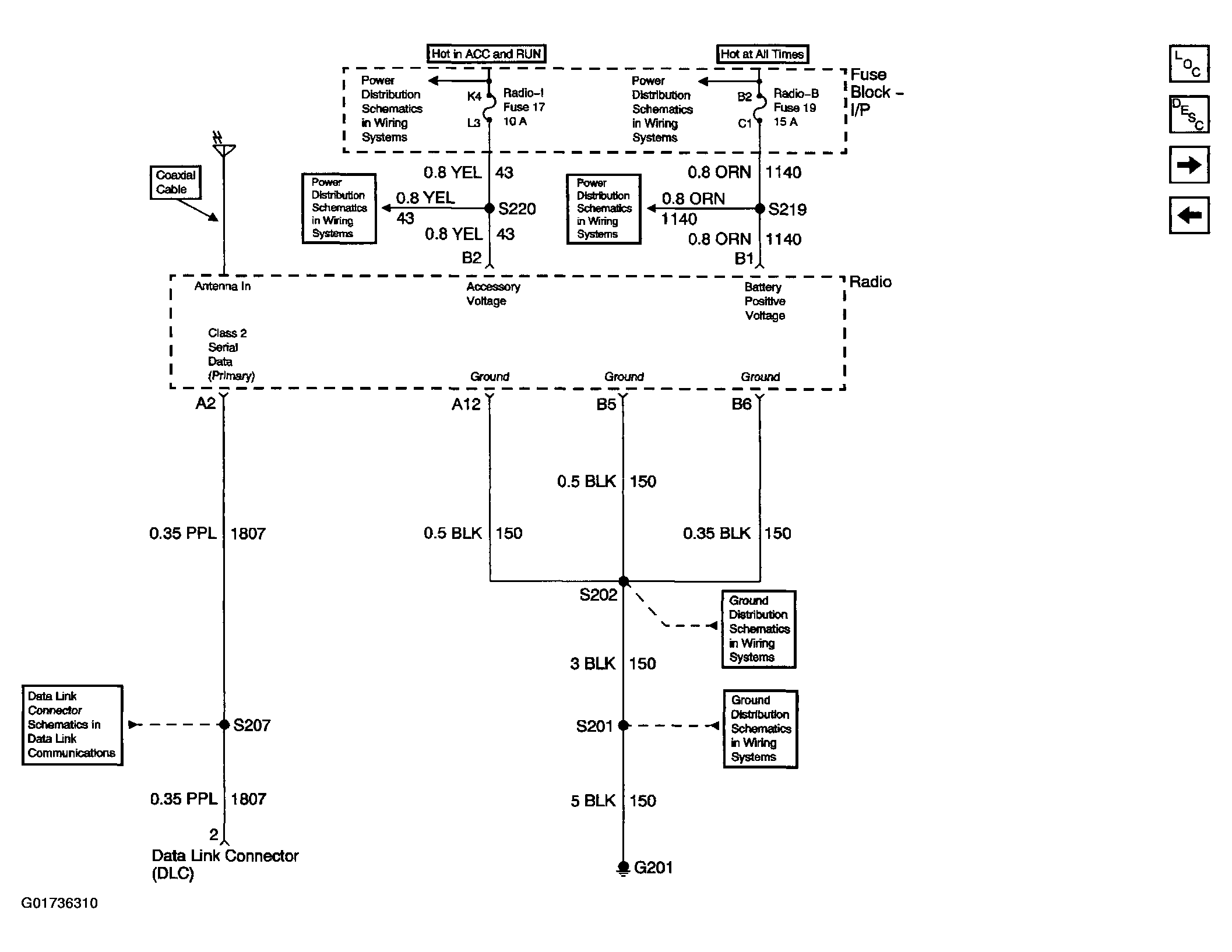

Fig 4: Radio/Audio System Schematics (Radio Power, Grounding, & DLC with Y91)

G01736310

Courtesy of GENERAL MOTORS CORP.

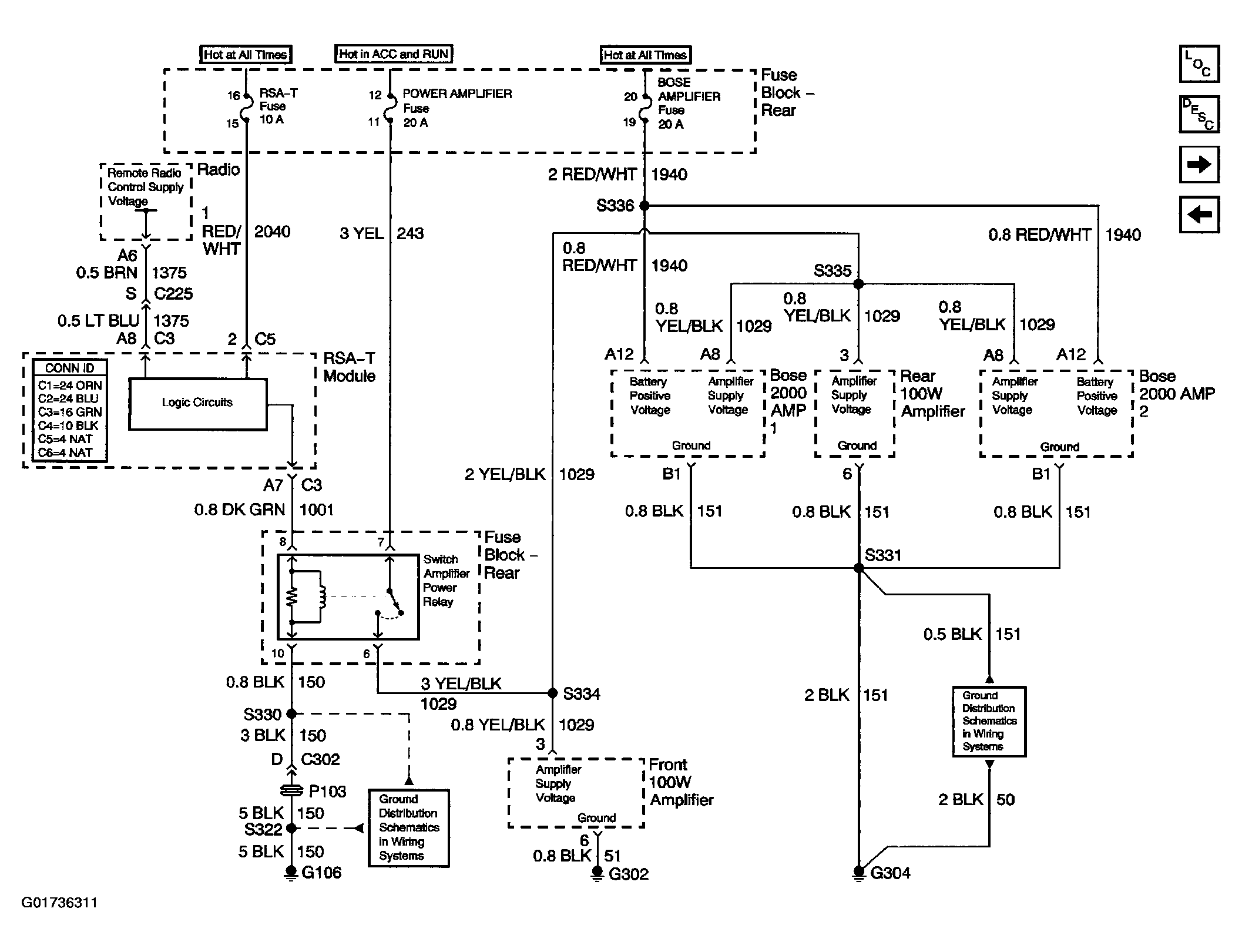

Fig 5: Radio/Audio System Schematics (Amplifier Power & Grounding)

G01736311

Courtesy of GENERAL MOTORS CORP.

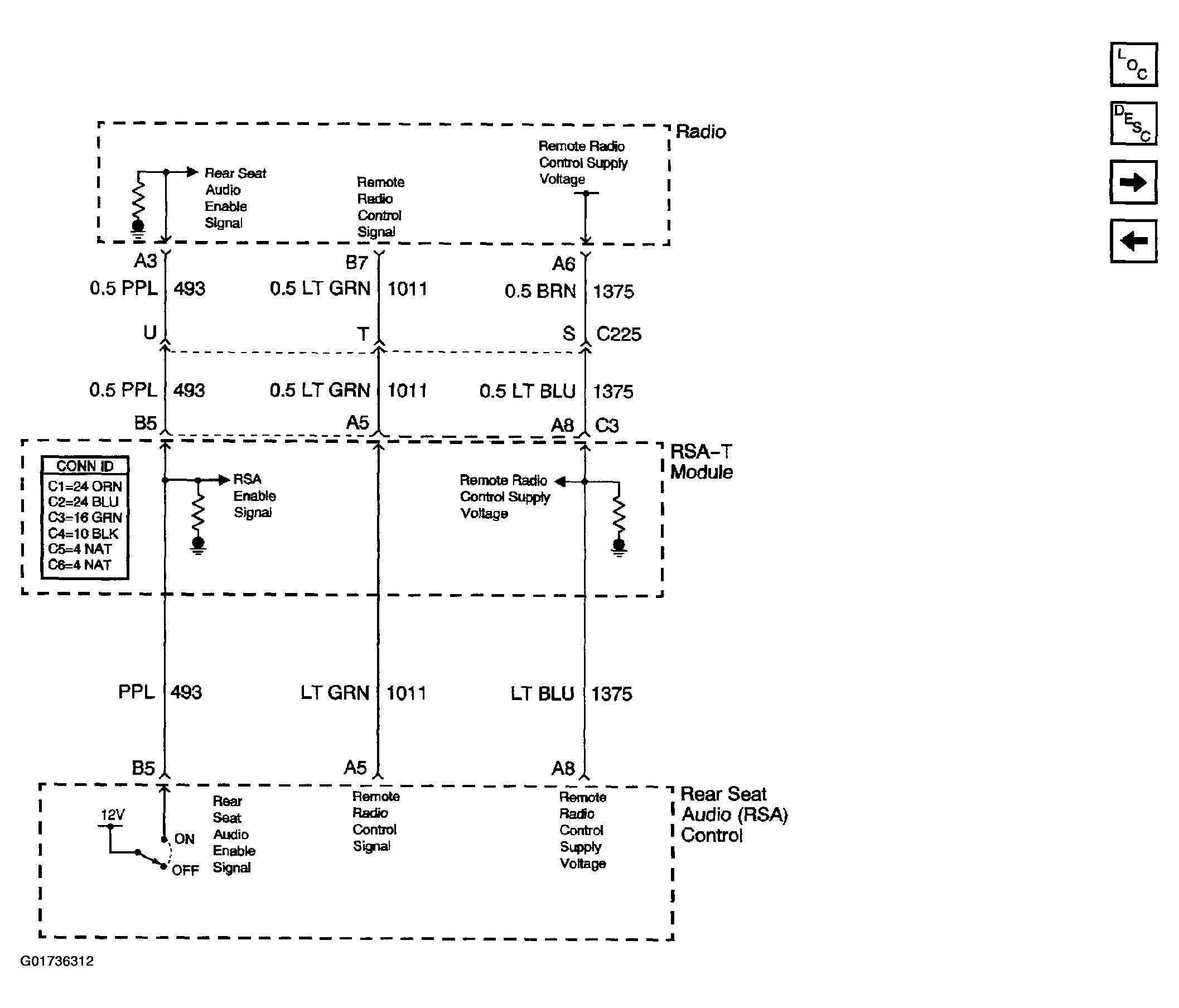

Fig 6: Radio/Audio System Schematics (RSA Power & Control Circuits)

G01736312

Courtesy of GENERAL MOTORS CORP.

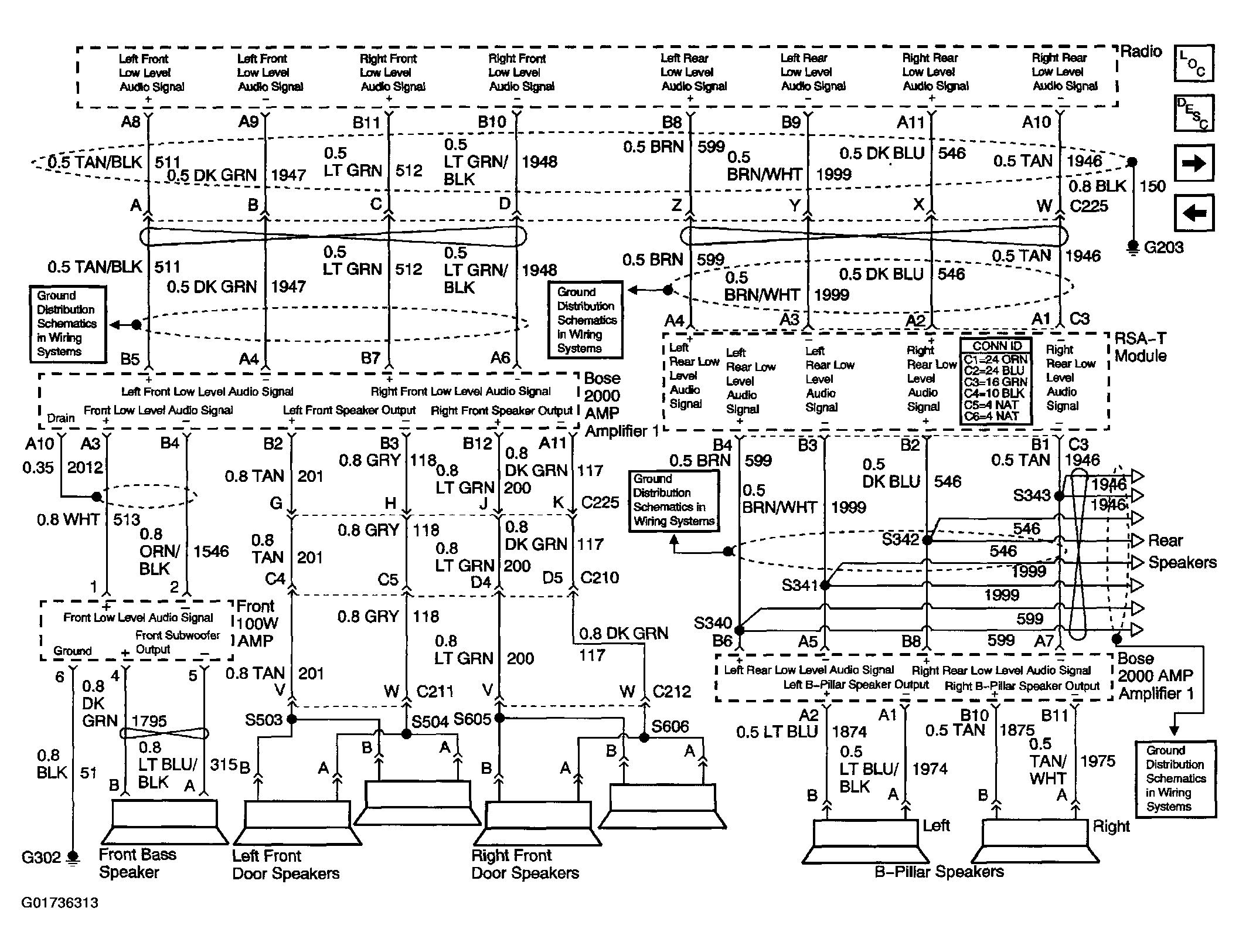

Fig 7: Radio/Audio System Schematics (Front Speakers & Subwoofer, B-Pillar Speakers, & Amplifiers)

G01736313

Courtesy of GENERAL MOTORS CORP.

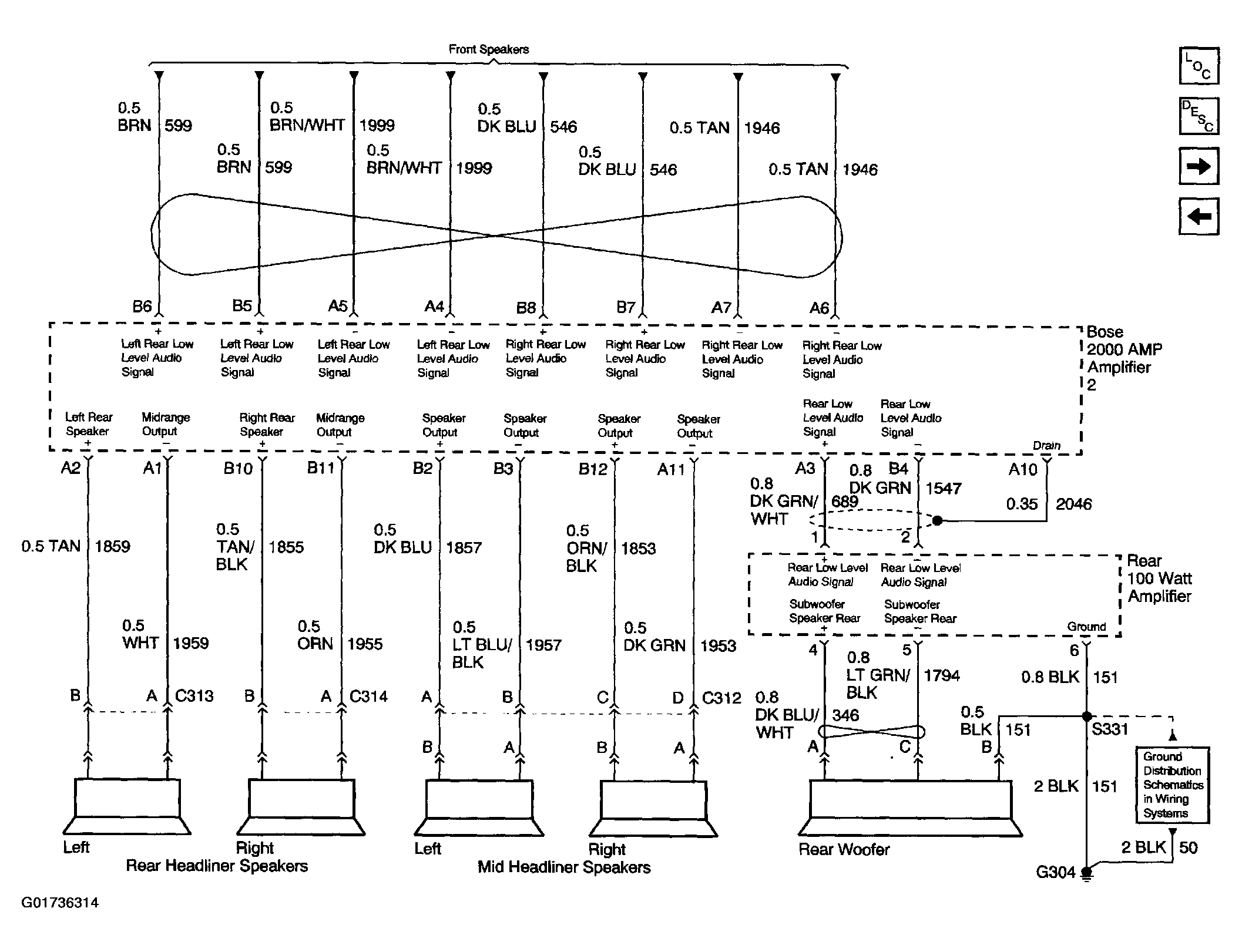

Fig 8: Radio/Audio System Schematics (Rear Speakers & Subwoofer, Rear Amplifiers)

G01736314

Courtesy of GENERAL MOTORS CORP.

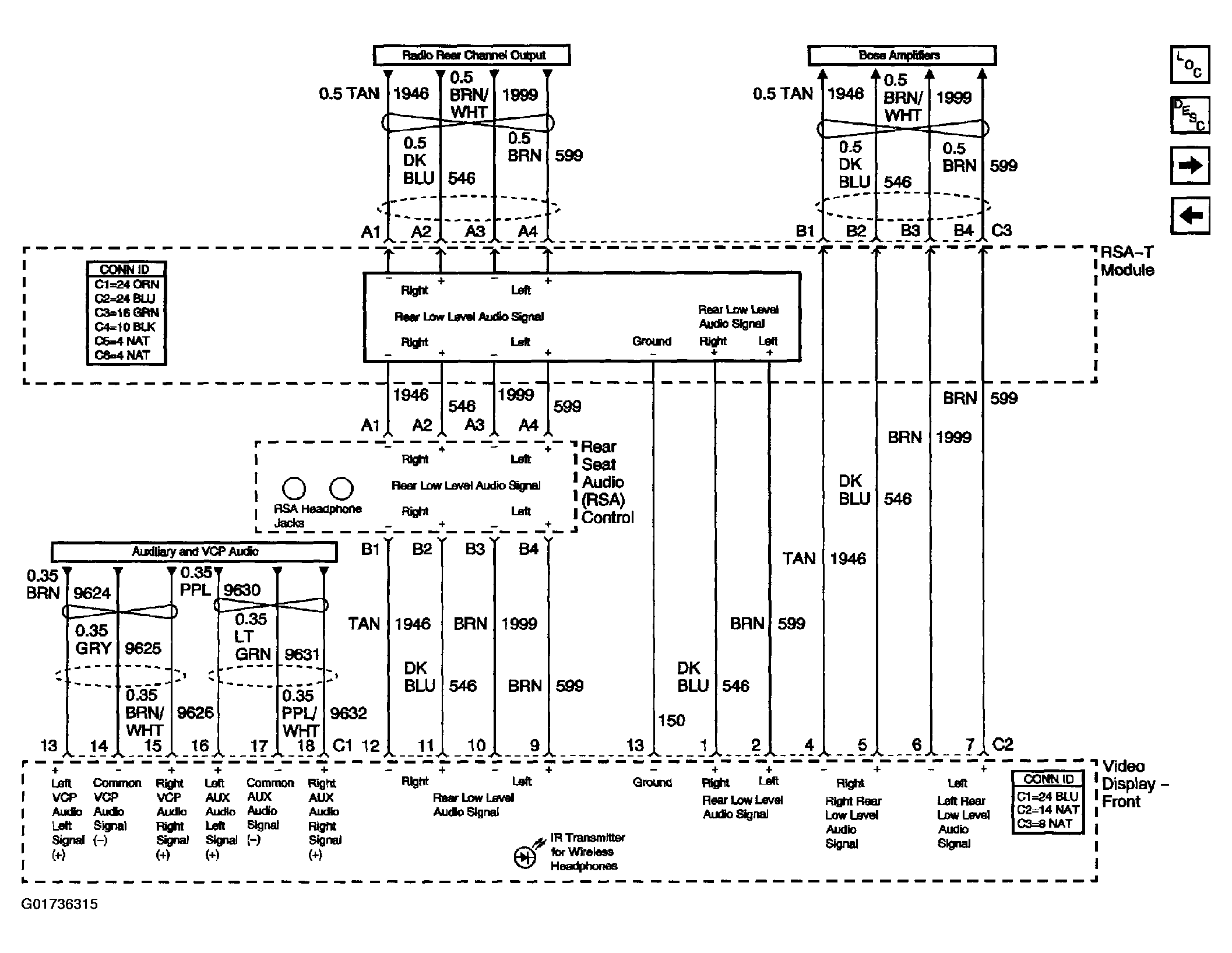

Fig 9: Radio/Audio System Schematics (Rear Channel Audio Inputs & Output)

G01736315

Courtesy of GENERAL MOTORS CORP.

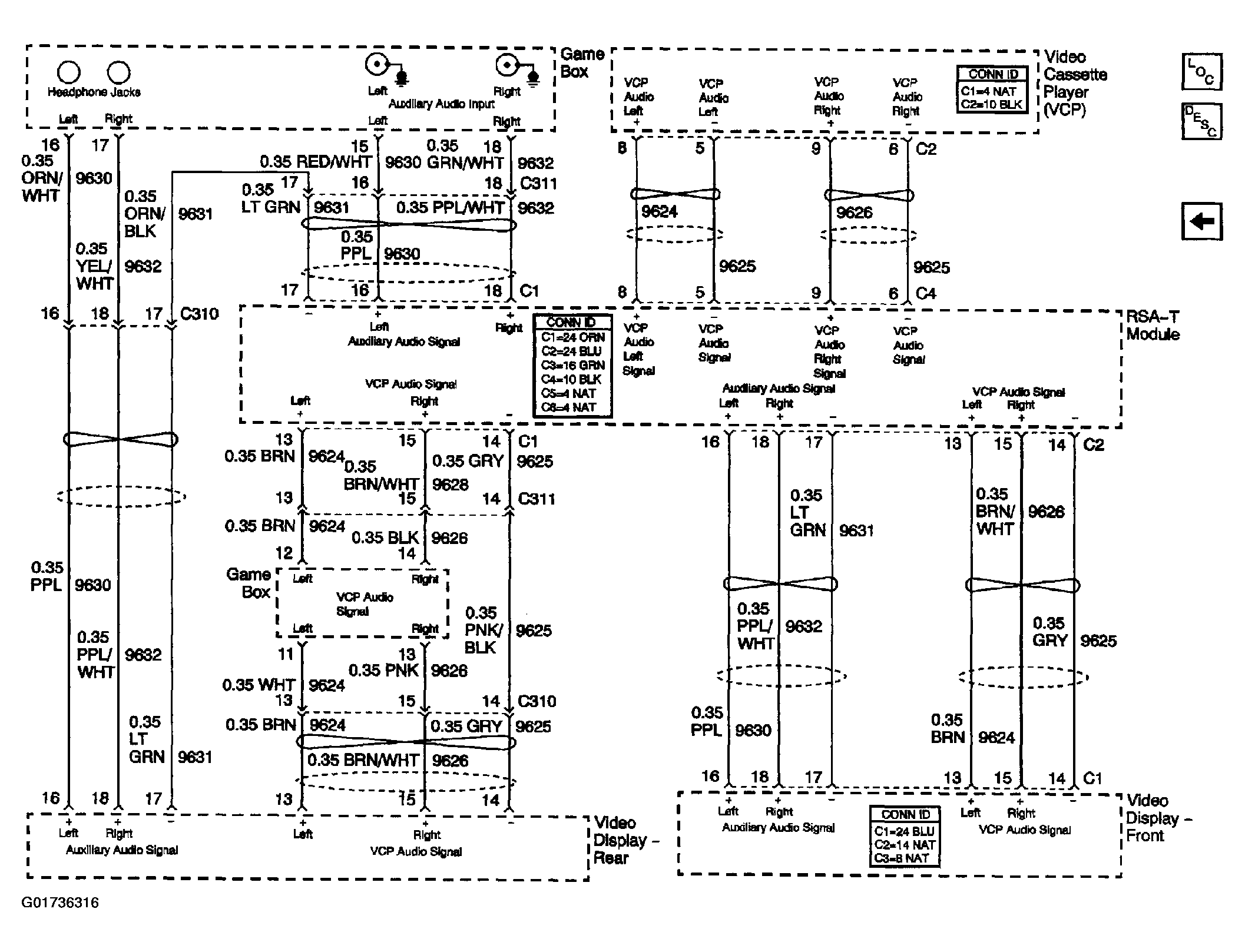

Fig 10: Radio/Audio System Schematics (Auxiliary & VCP Audio)

G01736316

Courtesy of GENERAL MOTORS CORP.
